K9 Body Control Module X8
 Courtesy of GENERAL MOTORS COMPANY
|

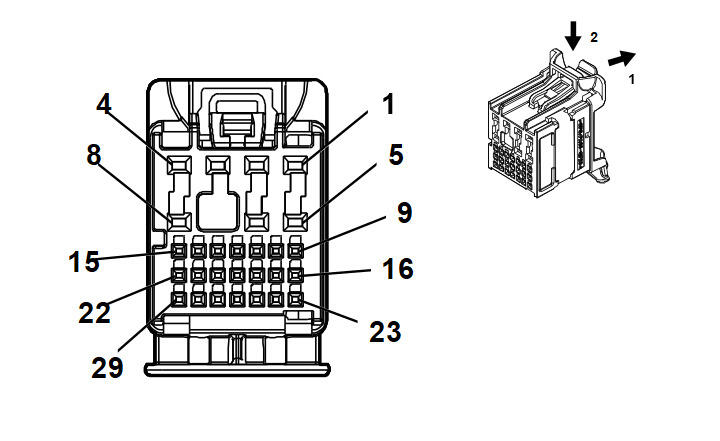

Connector Part Information
- Harness Type: Body
- OEM Connector: 13534971
- Service Connector: 13534971
- Description: 29 - Way F 0.5 NANO, 1.2 MCON Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19370262 |
EL-35616-58 (BK) |
EL-38125-58 |
| II |
84729890 |
J-35616-12 (BU) |
J-38125-215A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU / WH |
6128 |
Rear Closure Unlatch Actuator Unlatch Control |
II |
TB4 |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.75 |
BU / YE |
1091 |
Left Rear Door Lock Actuator Lock Control |
II |
- |
| 4 |
0.75 |
YE / GN |
2682 |
Right Front Door Lock Actuator Lock Control |
II |
- |
| 5 |
0.5 |
GY |
2066 |
Hands-Free Liftgate Sensor Lamp Control |
II |
TC2 |
| 6 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
GN / BK |
4304 |
Passive Entry Right Front Door Antenna Signal Low |
I |
- |
| 10 |
0.35 |
GN / YE |
4303 |
Passive Entry Right Front Door Antenna Signal High |
I |
- |
| 11 |
0.35 |
BU |
3554 |
Interior Passive Entry Antenna 2 High Signal |
I |
- |
| 12 |
0.35 |
GY / BK |
3555 |
Interior Passive Entry Antenna 2 Low Signal |
I |
- |
| 13 |
0.35 |
YE / BN |
3037 |
Driver Seat Left Rear Haptic Movement Motor Control |
I |
-A45 |
| 14 |
0.35 |
BN |
3038 |
Driver Seat Right Rear Haptic Movement Motor Control |
I |
-A45 |
| 15 - 16 |
- |
- |
- |
Not Occupied |
- |
- |
| 17 |
0.35 |
GN / YE |
2862 |
Body Control Module LIN Bus 16 |
I |
- |
| 18 |
0.35 |
GN / WH |
2854 |
Body Control Module LIN Bus 8 |
I |
- |
| 19 |
- |
- |
- |
Not Occupied |
- |
- |
| 20 |
0.35 |
GN / BU |
2856 |
Body Control Module LIN Bus 10 |
I |
TC2 |
| 21 - 28 |
- |
- |
- |
Not Occupied |
- |
- |
| 29 |
0.35 |
GN / GY |
6135 |
Body Control Module LIN Bus 4 |
I |
-A45 |
