K104P Front Seat Bladder Control Module - Passenger (AVU)
 Courtesy of GENERAL MOTORS COMPANY
|

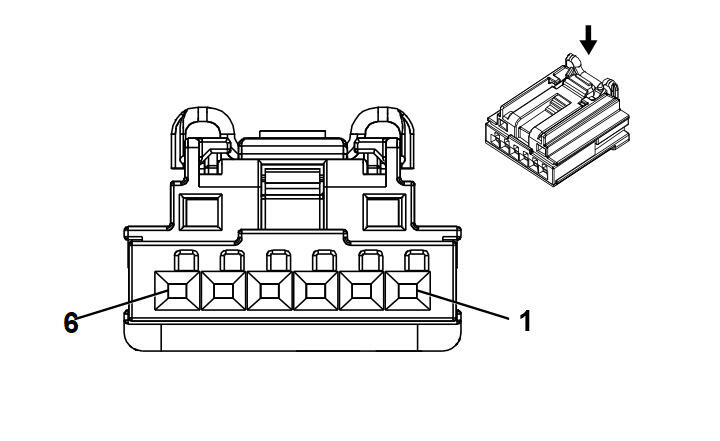

Connector Part Information
- Harness Type: Passenger Seat
- OEM Connector: 2035363-2
- Service Connector: Service by Harness - See Part Catalog
- Description: 6 - Way F 0.64 Generation Y Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (LT BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD / YE |
8840 |
Battery Positive Voltage |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
GY / WH |
4890 |
Passenger Seat Lumbar/Bolster Pump Control |
I |
- |
| 4 |
2.5 |
BK |
2050 |
Ground |
I |
- |
| 5 |
0.35 |
BK / BU |
2194 |
Passenger Seat Position Switch Low Reference |
I |
- |
| 6 |
0.35 |
YE / GN |
1068 |
Passenger Seat Lumbar Support Switch Analog Signal |
I |
- |
