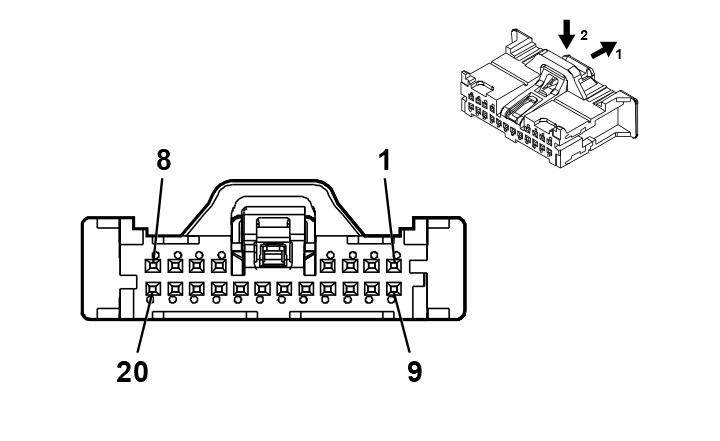

K212 Gear Shift Control Module
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Floor Console
- OEM Connector: 13529921
- Service Connector: Service by Harness - See Part Catalog
- Description: 20 - Way F Mini 50 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
EL-35616-58 (BK) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BU / BK |
4977 |
AUTOSAR CAN Bus [+] 3 Serial Data |
I |
- |
| 2 |
0.35 |
BU / BK |
4977 |
AUTOSAR CAN Bus [+] 3 Serial Data |
I |
- |
| 3 |
0.35 |
WH |
4976 |
AUTOSAR CAN Bus [-] 3 Serial Data |
I |
- |
| 4 |
0.35 |
WH |
4976 |
AUTOSAR CAN Bus [-] 3 Serial Data |
I |
- |
| 5 |
0.35 |
WH |
4055 |
Private Serial Data Powertrain CAN Bus [+] Serial Data |
I |
- |
| 6 |
0.35 |
WH |
4055 |
Private Serial Data Powertrain CAN Bus [+] Serial Data |
I |
- |
| 7 |
0.35 |
BU / GY |
4054 |
Private Serial Data Powertrain CAN Bus [-] Serial Data |
I |
- |
| 8 |
0.35 |
BU / GY |
4054 |
Private Serial Data Powertrain CAN Bus [-] Serial Data |
I |
- |
| 9 |
0.35 |
RD / GY |
7040 |
Battery Positive Voltage |
I |
- |
| 10 - 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.35 |
VT / GN |
4320 |
Powertrain Sensor Bus Enable |
I |
- |
| 17 |
0.35 |
VT / BK |
1239 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 18 - 19 |
- |
- |
- |
Not Occupied |
- |
- |
| 20 |
0.35 |
BK |
1850 |
Ground |
I |
- |
