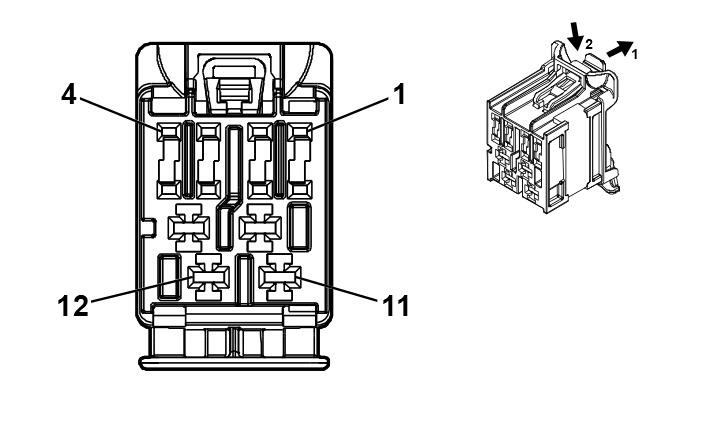

K219 Lighting Control Module X3
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13509989
- Service Connector: 13509989
- Description: 12 - Way F 1.2, 2.8 Series (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
84729890 |
J-35616-12 (BU) |
J-38125-215A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BU / BN |
7539 |
Right Front DRL Control |
I |
- |
| 2 |
0.5 |
WH / YE |
7541 |
Right Rear Stop Lamp Control |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.5 |
BU / GN |
1253 |
Right Front Park Lamp Control |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.5 |
BU / VT |
1335 |
Right Rear Turn Signal Lamp Control 2 |
I |
- |
| 7 |
0.5 |
GN / WH |
1324 |
Backup Lamp Control |
I |
- |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.75 |
RD / BN |
4240 |
Battery Positive Voltage |
I |
- |
| 10 |
0.75 |
RD / GY |
4140 |
Battery Positive Voltage |
I |
- |
| 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.5 |
BN / GY |
6995 |
Right Rear Park Lamp Control |
I |
- |
