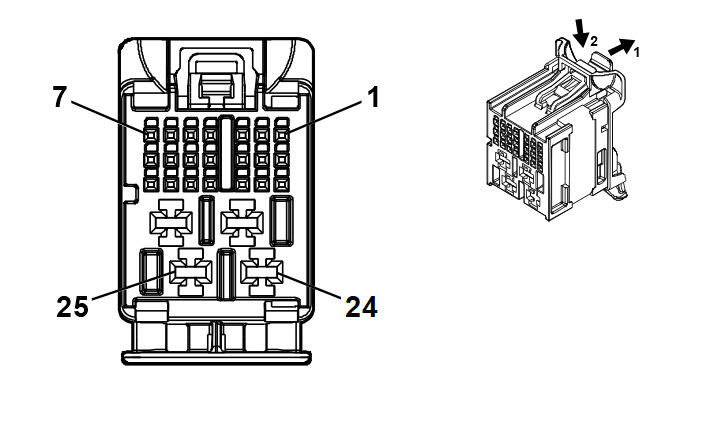

K219 Lighting Control Module X4
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13534969
- Service Connector: 13534969
- Description: 25 - Way F 0.5 MQS, 2.8 MCP Series (PU with GY Inner Connector)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
13575435 |
J-35616-4A (PU) |
J-38125-215A |
| II |
19370262 |
EL-35616-58 (BK) |
EL-38125-58 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
BU / YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
II |
- |
| 4 |
0.35 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
II |
- |
| 5 |
0.35 |
BU / YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
II |
- |
| 6 |
0.35 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
II |
- |
| 7 |
0.35 |
WH / BU |
6311 |
Cruise/ETC/TCC Brake Signal |
II |
- |
| 8 - 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.35 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
II |
- |
| 11 |
0.35 |
BU / YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
II |
- |
| 12 - 20 |
- |
- |
- |
Not Occupied |
- |
- |
| 21 |
0.35 |
VT / GY |
1303 |
Liftgate Ajar Switch Signal 1 |
II |
TB4 |
| 22 |
1.5 |
RD / VT |
4040 |
Battery Positive Voltage |
I |
- |
| 23 |
1 |
BK / WH |
2051 |
Signal Ground |
I |
- |
| 24 |
1 |
RD / BU |
7640 |
Battery Positive Voltage |
I |
- |
| 25 |
1 |
BK / WH |
2051 |
Signal Ground |
I |
- |
