K219 Lighting Control Module X5
 Courtesy of GENERAL MOTORS COMPANY
|

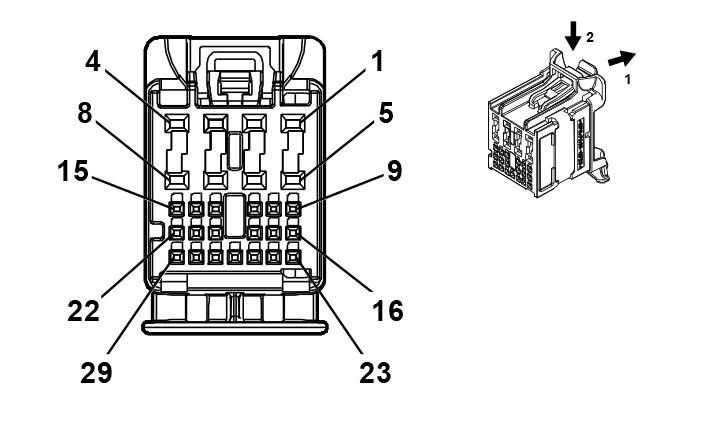

Connector Part Information
- Harness Type: Body
- OEM Connector: 13534975
- Service Connector: 13534975
- Description: 29 - Way F 0.5 NANO, 1.2 MCON Series (BU with GY Inner Connector)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19370262 |
EL-35616-58 (BK) |
EL-38125-58 |
| II |
84729890 |
J-35616-12 (BU) |
J-38125-215A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH |
711 |
Left Headlamp High Beam Control |
II |
- |
| 2 |
0.5 |
YE |
312 |
Right Headlamp Low Beam Control |
II |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.75 |
YE / GN |
2024 |
Animation Lighting Control |
II |
- |
| 5 |
0.5 |
WH |
311 |
Right Headlamp High Beam Control |
II |
- |
| 6 |
0.5 |
YE |
712 |
Left Headlamp Low Beam Control |
II |
- |
| 7 |
0.5 |
GN / VT |
1315 |
Right Front Turn Signal Lamp Control |
II |
- |
| 8 |
0.5 |
BU / WH |
1334 |
Left Rear Turn Signal Lamp Control 2 |
II |
- |
| 9 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.35 |
GY |
1715 |
Windshield Wiper Switch High Signal |
I |
- |
| 13 |
0.35 |
GN / BN |
319 |
Right Rear Trailer Stop/Turn Lamp Control |
I |
- |
| 14 - 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.35 |
WH / BU |
10132 |
Headlamp Leveling CAN Bus Communication Enable |
I |
- |
| 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.35 |
VT / GY |
1039 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 20 - 22 |
- |
- |
- |
Not Occupied |
- |
- |
| 23 |
0.35 |
WH / VT |
6567 |
Rear Turn Signal Lamp Feedback Signal |
I |
- |
| 24 |
0.35 |
WH / BK |
7544 |
Right Rear Turn Signal Lamp Feedback Signal |
I |
- |
| 25 |
0.35 |
VT / WH |
5065 |
Stop Lamp Relay Coil Control |
I |
- |
| 26 - 28 |
- |
- |
- |
Not Occupied |
- |
- |
| 29 |
0.35 |
YE / BU |
318 |
Left Rear Trailer Stop/Turn Lamp Control |
I |
- |
