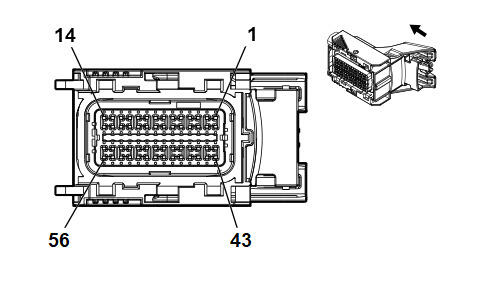

K36 Restraints Control Module X2

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	19354746	J-35616-64B (LT BU)	J-38125-215A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1 - 11	-	-	-	Not Occupied	-	-
12	0.35	OG / GY	2652	Driver Seat Belt Sensor Signal	I	-
13	0.5	BK / OG	6627	Right Rear Side Impact Sensor Low Reference	I	-
14	0.5	OG / WH	6626	Right Rear Side Impact Sensor Signal	I	-
15 - 22	-	-	-	Not Occupied	-	-
23	0.5	BK / OG	1363	Driver Seat Belt Switch Low Reference	I	-
24	-	-	-	Not Occupied	-	-
25	0.5	OG / VT	1362	Passenger Seat Belt Switch Signal	I	-
26	-	-	-	Not Occupied	-	-
27	0.35	BK / OG	6628	Left Front Side Impact Sensor Low Reference	I	-
28	0.35	OG / GN	2132	Left Front Side Impact Sensor Signal	I	-
29 - 36	-	-	-	Not Occupied	-	-
37	0.5	OG / GY	5021	Right Front Roof Rail Air Bag High Control	I	-
38	0.5	WH / OG	5022	Right Front Roof Rail Air Bag Low Control	I	-
39	0.35	BN / OG	4957	Passenger Seat Back Air Bag Low Control	I	-
40	0.35	OG / GY	4956	Passenger Seat Back Air Bag High Control	I	-
41	0.35	BK / OG	6629	Right Front Side Impact Sensor Low Reference	I	-
42	0.35	BN / OG	2134	Right Front Side Impact Sensor Signal	I	-
43 - 44	-	-	-	Not Occupied	-	-
45	0.5	GY / OG	3079	Driver Knee Air Bag Low Control	I	-
46	0.5	OG / BU	3078	Driver Knee Air Bag High Control	I	-
47 - 50	-	-	-	Not Occupied	-	-
51	0.5	OG / GN	5019	Left Front Roof Rail Air Bag High Control	I	-
52	0.5	VT / OG	5020	Left Front Roof Rail Air Bag Low Control	I	-
53	0.5	GN / OG	4963	Driver Seat Back Air Bag Low Control	I	-
54	0.5	OG / BU	4962	Driver Seat Back Air Bag High Control	I	-
55	0.5	BK / OG	6623	Left Rear Side Impact Sensor Low Reference	I	-
56	0.5	OG / BU	6622	Left Rear Side Impact Sensor Signal	I	-
