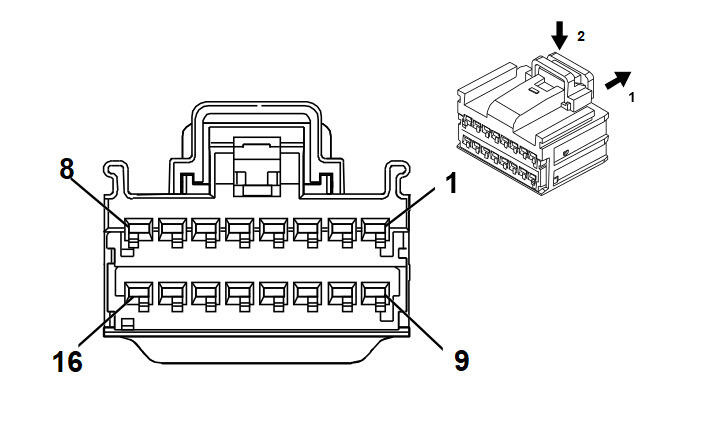

K40D Driver Seat Adjuster Memory Module X2 (A45)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 15512506
- Service Connector: Service by Harness - See Part Catalog
- Description: 16 - Way F 1.5 OCS Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1.5 |
YE / BU |
285 |
Driver Seat Horizontal Motor Forward Control |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
1.5 |
GN / YE |
276 |
Driver Seat Recline Motor Forward Control |
I |
- |
| 4 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
1.5 |
BU / VT |
287 |
Driver Seat Front Vertical Motor Down Control |
I |
- |
| 7 |
1.5 |
YE |
282 |
Driver Seat Rear Vertical Motor Up Control |
I |
- |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
1.5 |
BU / YE |
277 |
Driver Seat Recline Motor Rearward Control |
I |
- |
| 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
1.5 |
GY / GN |
284 |
Driver Seat Horizontal Motor Rearward Control |
I |
- |
| 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
1.5 |
GY / BU |
283 |
Driver Seat Rear Vertical Motor Down Control |
I |
- |
| 14 - 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
1.5 |
GN / BN |
286 |
Driver Seat Front Vertical Motor Up Control |
I |
- |
