K56 Serial Data Gateway Module X2

Courtesy of GENERAL MOTORS COMPANY

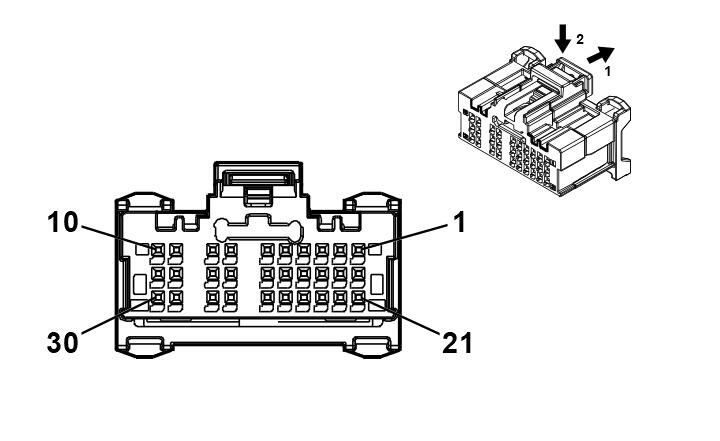

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	19370262	EL-35616-58 (BK)	EL-38125-58

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1 - 4	-	-	-	Not Occupied	-	-
5	0.35	BK / GY	3559	Passive Start Switch 2 Low Reference	I	-
6	-	-	-	Not Occupied	-	-
7	0.35	GN / VT	5199	Run/Crank Relay Coil Control	I	-
8	-	-	-	Not Occupied	-	-
9	0.35	YE / WH	4973	Ethernet Bus 1R [+]	I	-
10	0.35	YE	4972	Ethernet Bus 1R [-]	I	-
11 - 12	-	-	-	Not Occupied	-	-
13	0.35	BU / BN	4983	AUTOSAR CAN Bus [+] 7 Serial Data	I	-
14	0.35	WH	4982	AUTOSAR CAN Bus [-] 7 Serial Data	I	-
15	0.35	GN / BK	3558	Passive Start Switch Signal 2	I	-
16	0.35	WH	4980	AUTOSAR CAN Bus [-] 6 Serial Data	I	-
17	0.35	GN	2578	Private Serial Data Presentation CAN Bus [+] 1 Serial Data	I	-
18	0.35	BN	2577	Private Serial Data Presentation CAN Bus [-] 1 Serial Data	I	-
19	0.35	WH	7207	Ethernet Bus 1 Enable Signal	I	-
20 - 22	-	-	-	Not Occupied	-	-
23	0.35	BU / WH	4985	AUTOSAR CAN Bus [+] 5 Serial Data	I	-
24	0.35	BU / YE	4984	AUTOSAR CAN Bus [-] 5 Serial Data	I	-
25	-	-	-	Not Occupied	-	-
26	0.35	YE	4981	AUTOSAR CAN Bus [+] 6 Serial Data	I	-
27	0.35	VT	2580	Private Serial Data Presentation CAN Bus [+] 2 Serial Data	I	-
28	0.35	GY	2579	Private Serial Data Presentation CAN Bus [-] 2 Serial Data	I	-
29	0.35	GN / WH	4975	Ethernet Bus 1T [+]	I	-
30	0.35	GN	4974	Ethernet Bus 1T [-]	I	-
