Column Lock Module Replacement

Courtesy of GENERAL MOTORS COMPANY

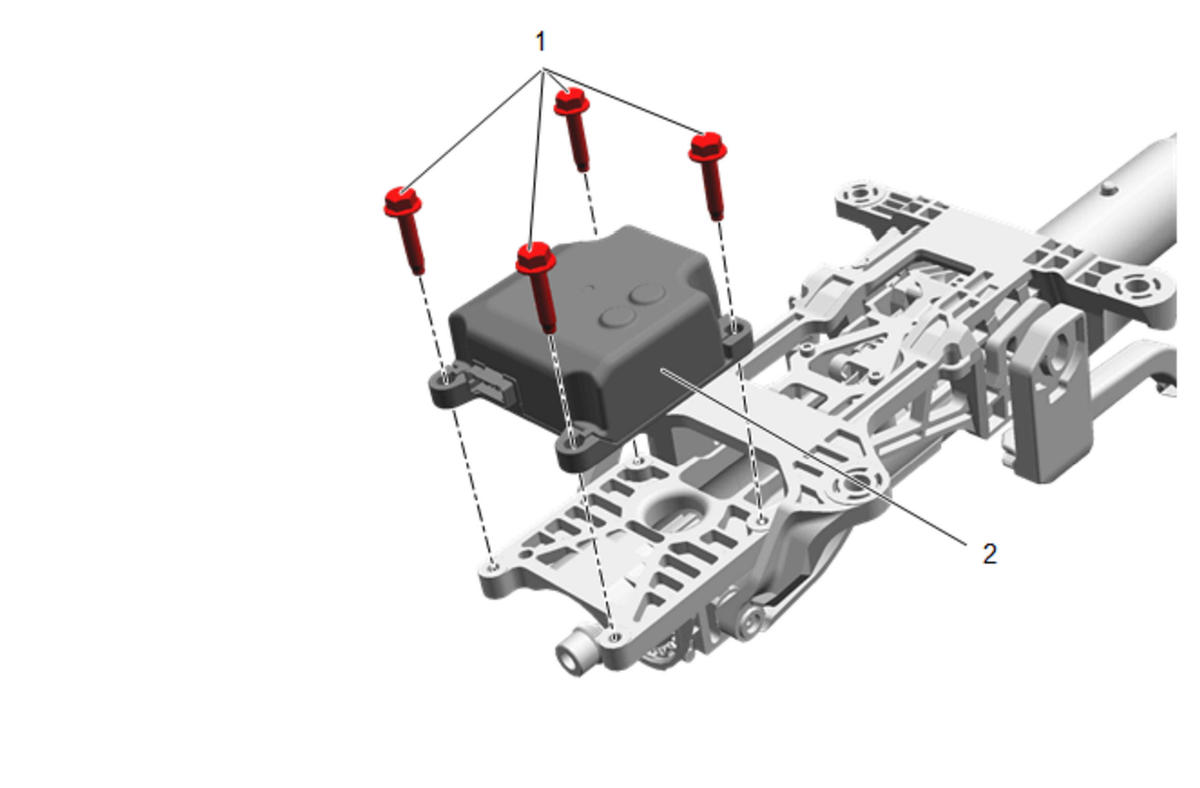

Callout	Component Name
Preliminary Procedure With the vehicle in accessory mode, remove fuse to unlock the steering column lock control module - Steering Wheel Wiring Schematics Steering Column Replacement
1	Steering Column Lock Control Module Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Steering Column Lock Control Module Procedure Program the steering column lock control module. Control Module References

Callout

Component Name

Preliminary Procedure

With the vehicle in accessory mode, remove fuse to unlock the steering column lock control module - Steering Wheel Wiring Schematics
Steering Column Replacement

Steering Column Lock Control Module Bolt [4x]

CAUTION:

Tighten
9 N.m (80 lb in)

Steering Column Lock Control Module
Procedure
Program the steering column lock control module. Control Module References
