Installation Procedure

Clean the contact surfaces between the power transfer unit and the transmission.
Courtesy of GENERAL MOTORS COMPANY

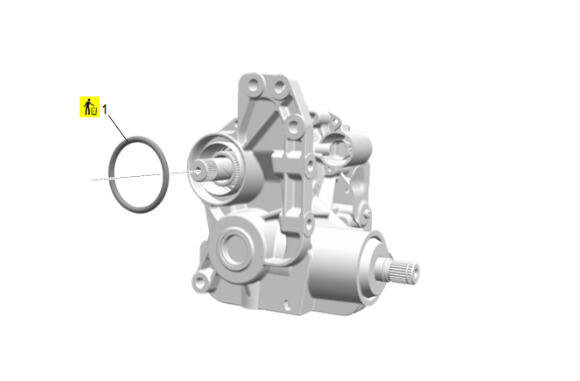

Power Transfer Unit Face Seal (1) - Install NEW
Support the power transfer unit with a suitable jack, and secure with suitable straps.
Courtesy of GENERAL MOTORS COMPANY

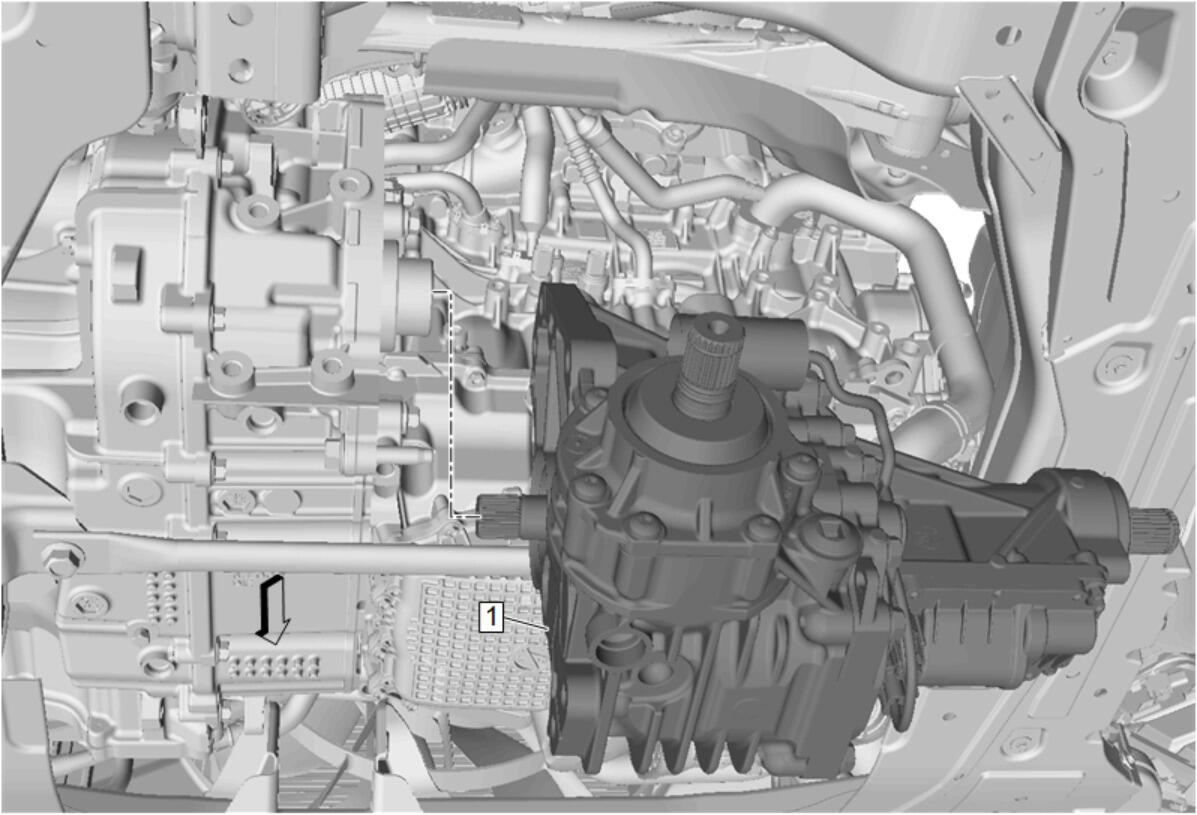

Power Transfer Unit Case (1) @ Transmission - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

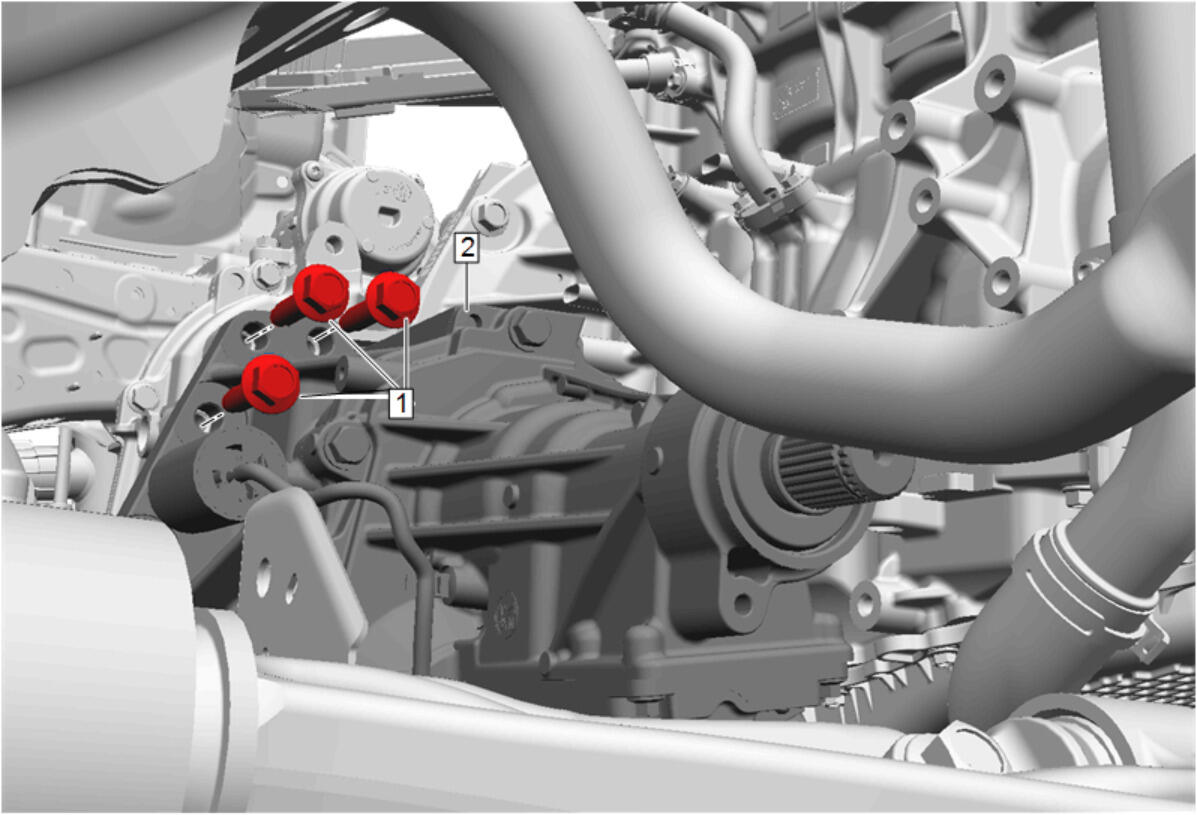

Power Transfer Unit Bolt (1) - Install and tighten [3x] 100 N.m (74 lb ft)
Courtesy of GENERAL MOTORS COMPANY

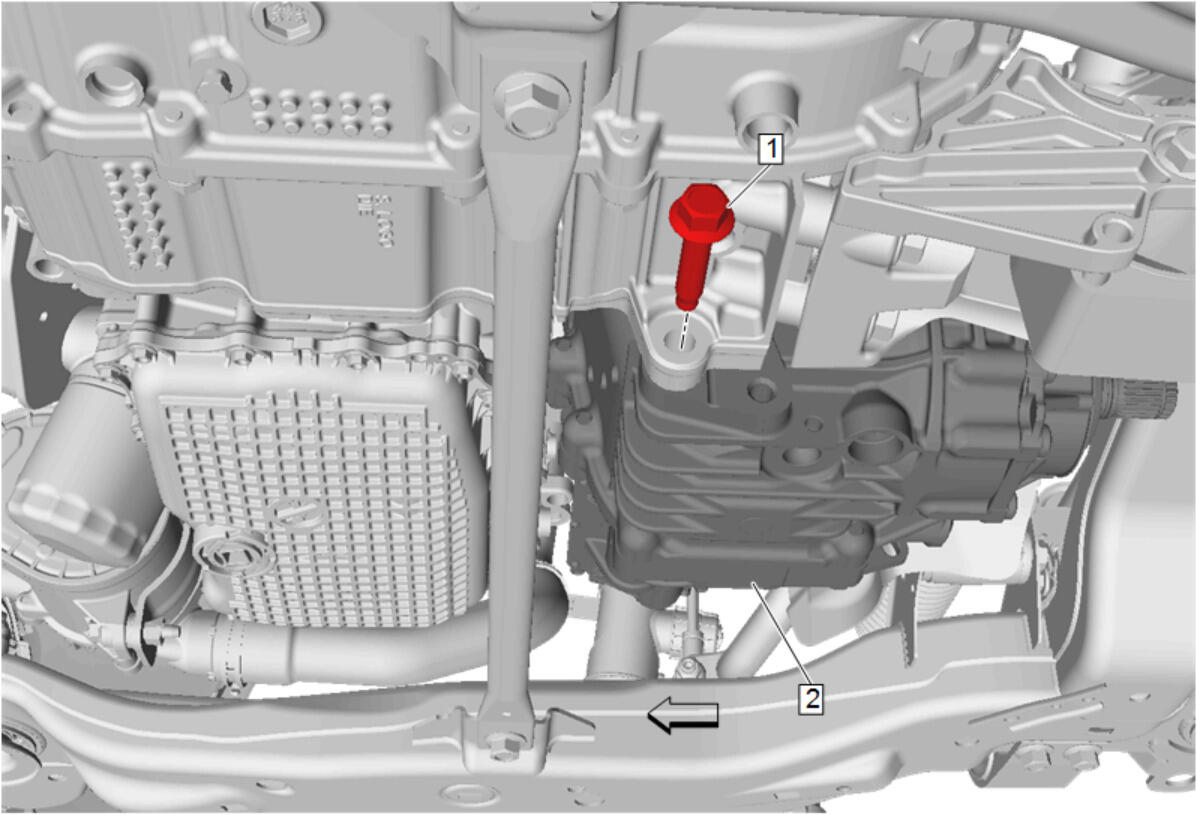

Power Transfer Unit Bolt (1) - Install and tighten 100 N.m (74 lb ft)
Courtesy of GENERAL MOTORS COMPANY

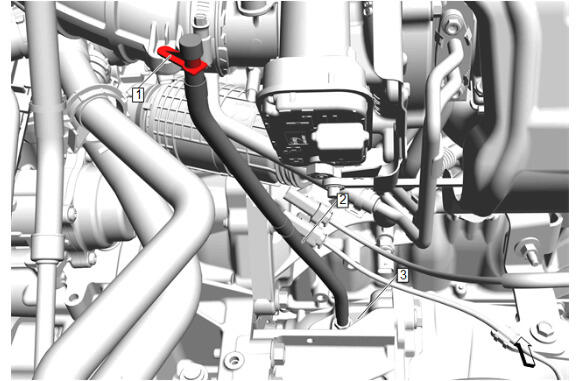

Power Transfer Unit Vent Hose (2) @ Power Transfer Unit Case (3) - Connect
Power Transfer Unit Vent Hose Retainer (1) @ Turbocharger Outlet Duct Connector - Connect
Propeller Shaft @ Transfer Case - Install - Propeller Shaft Replacement
Courtesy of GENERAL MOTORS COMPANY

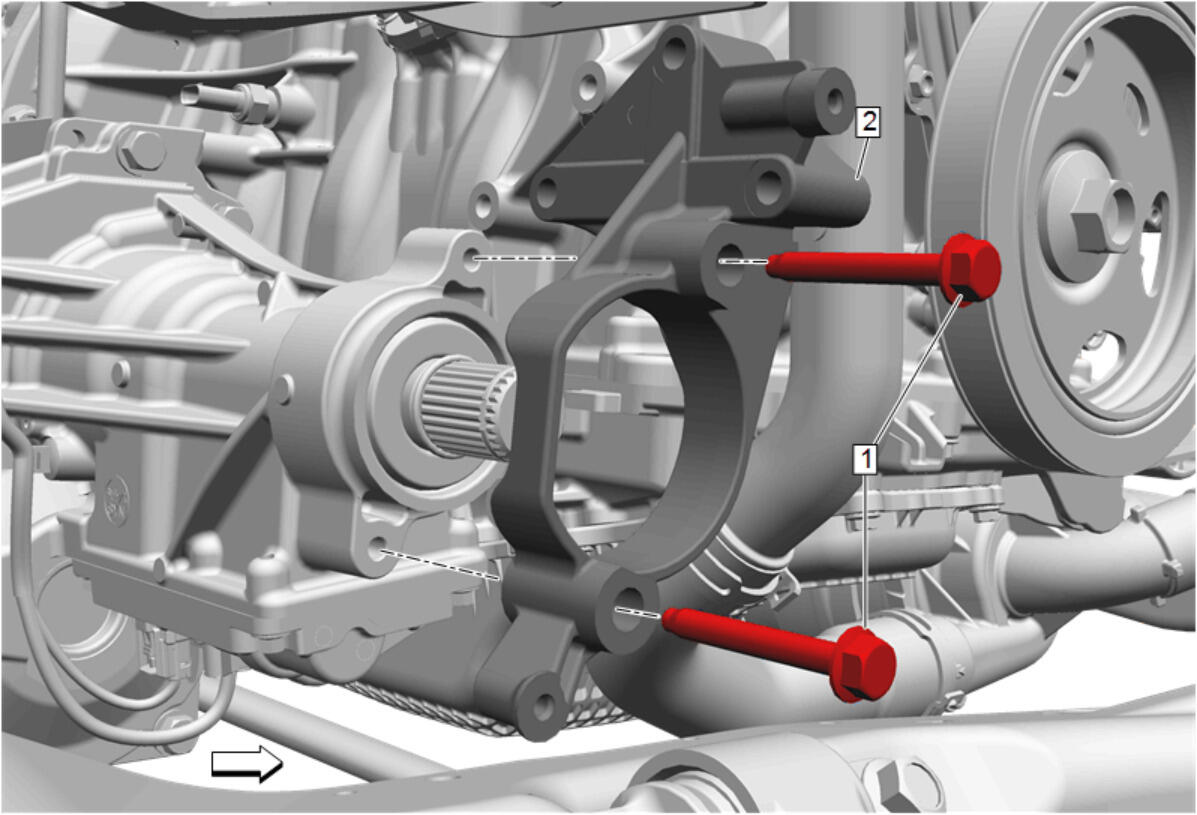

Power Transfer Unit Bracket (2) - Install - Power Transfer Unit Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

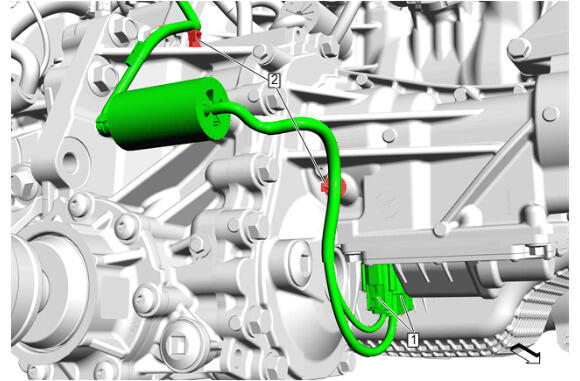

Position the wiring harness then install the retainers (2).
Electrical Connector (1) - Connect [2x]
Fill the power transfer unit to the bottom of the power transfer unit fill plug hole with the recommended fluid. Adhesives, Fluids, Lubricants, and Sealers , and Approximate Fluid Capacities
Courtesy of GENERAL MOTORS COMPANY

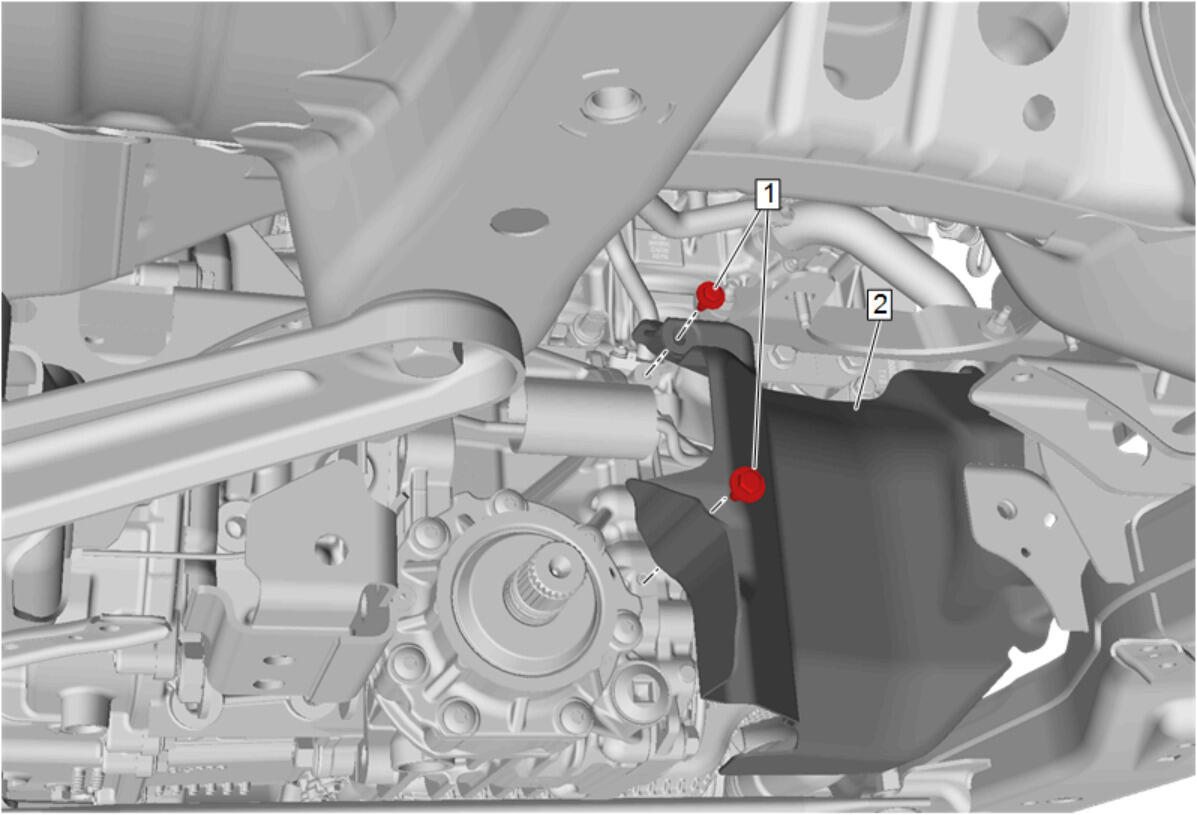

Power Transfer Unit Heat Shield (2) - Install - Power Transfer Unit Heat Shield Replacement
Courtesy of GENERAL MOTORS COMPANY

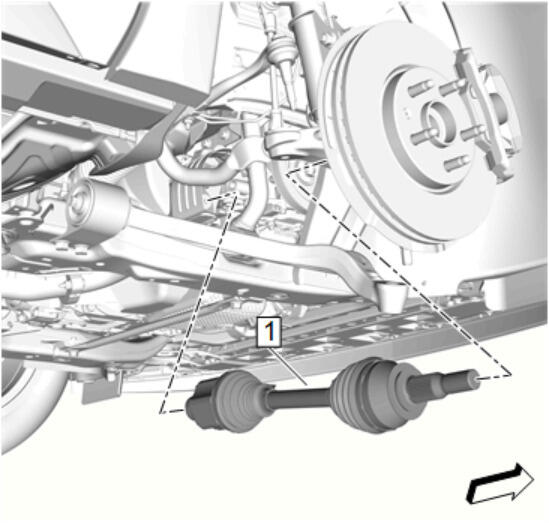

Front Wheel Drive Shaft- Right Side (1) - Install - Front Wheel Drive Shaft Replacement - Right Side
