Left Front of Passenger Compartment Components

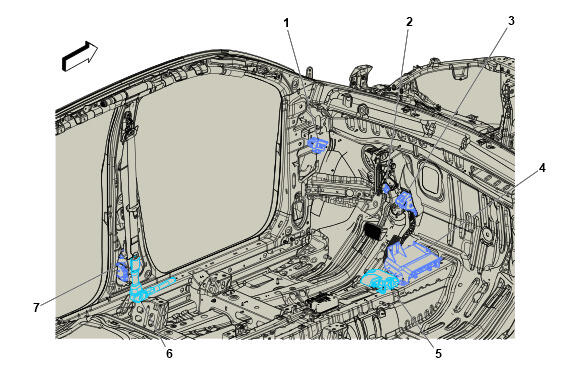

GM5639152Courtesy of GENERAL MOTORS COMPANY
Left Front of Passenger Compartment Components

Component Name Callout
K26 Headlamp Control Module (T95) K26 Headlamp Control Module (T95) 1
B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor 2
B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor 3
K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7 , or K9 Body Control Module X8 4
T19 Multifunction Power Supply Converter T19 Multifunction Power Supply Converter 5
F113D Front Seat Belt Anchor Plate Tensioner - Driver F113D Front Seat Belt Anchor Plate Tensioner - Driver 6
F112D Front Seat Belt Retractor - Driver F112D Front Seat Belt Retractor - Driver 7
