Rear Axle Components

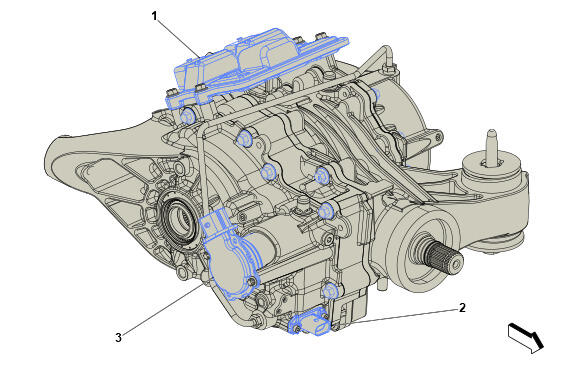

GM5661601Courtesy of GENERAL MOTORS COMPANY
Rear Axle Components

Component Name Callout
K47 Rear Drive Control Module (F48) K47 Rear Drive Control Module X1 (F48) , or K47 Rear Drive Control Module X2 (F48) 1
Q49 Limited Slip Differential Clutch Valve (F48) Q49 Limited Slip Differential Clutch Valve (F48) 2
M32 Differential Clutch Pump (F48) M32 Differential Clutch Pump (F48) 3
