Headliner Components (C3U)

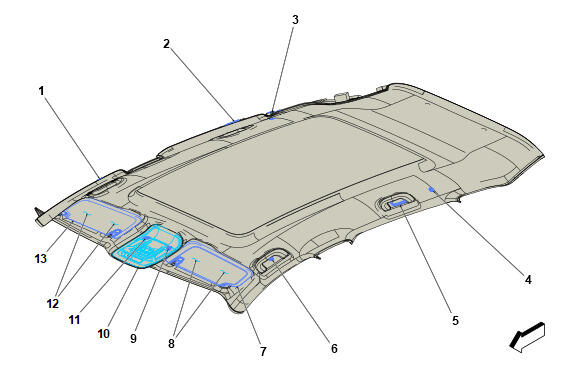

GM5639157Courtesy of GENERAL MOTORS COMPANY
Headliner Components (C3U)

Component Name Callout
B312LF Active Noise Cancellation Microphone - Left Front B312LF Active Noise Cancellation Microphone - Left Front 1
E37H Roof Rail Rear Seat Position Reading and Courtesy Lamp - Left (C3U) E37H Roof Rail Rear Seat Position Reading and Courtesy Lamp - Left (C3U) 2
B312LR Active Noise Cancellation Microphone - Left Rear B312LR Active Noise Cancellation Microphone - Left Rear 3
B312RR Active Noise Cancellation Microphone - Right Rear B312RR Active Noise Cancellation Microphone - Right Rear 4
E37J Roof Rail Rear Seat Position Reading and Courtesy Lamp - Right (C3U) E37J Roof Rail Rear Seat Position Reading and Courtesy Lamp - Right (C3U) 5
B312RF Active Noise Cancellation Microphone - Right Front B312RF Active Noise Cancellation Microphone - Right Front 6
A3R Sunshade - Right A3R Sunshade - Right 7
E31R Sunshade Mirror Lamp - Right 8
B24RF Mobile Telephone Microphone - Right Front (IOS/IOU) B24RF Mobile Telephone Microphone - Right Front (IOS/IOU) 9
A103 Roof Console A103 Roof Console X1 , or A103 Roof Console X2 10
B24LF Mobile Telephone Microphone - Left Front B24LF Mobile Telephone Microphone - Left Front 11
E31L Sunshade Mirror Lamp - Left 12
A3L Sunshade - Left A3L Sunshade - Left 13
