Rear Seat Components

GM5830525Courtesy of GENERAL MOTORS COMPANY

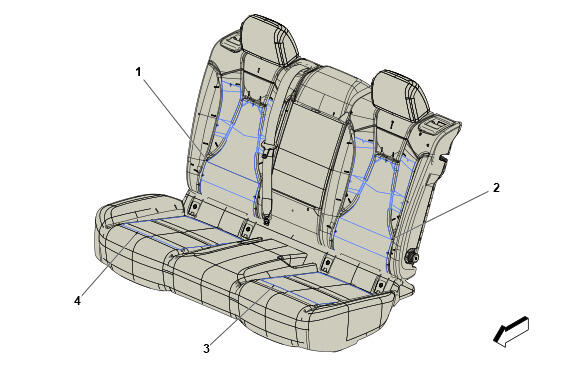

Rear Seat Components

Component Name Callout
E14G Rear Seat Back Heater - Right (KA6) E14G Rear Seat Back Heater - Right (KA6) 1
E14E Rear Seat Back Heater - Left (KA6) E14E Rear Seat Back Heater - Left (KA6) 2
E14F Rear Seat Cushion Heater - Left Rear (KA6) E14F Rear Seat Cushion Heater - Left Rear (KA6) 3
E14H Rear Seat Cushion Heater - Right Rear (KA6) E14H Rear Seat Cushion Heater - Right Rear (KA6) 4
