Right Rear of Passenger Compartment Components

GM5639155Courtesy of GENERAL MOTORS COMPANY

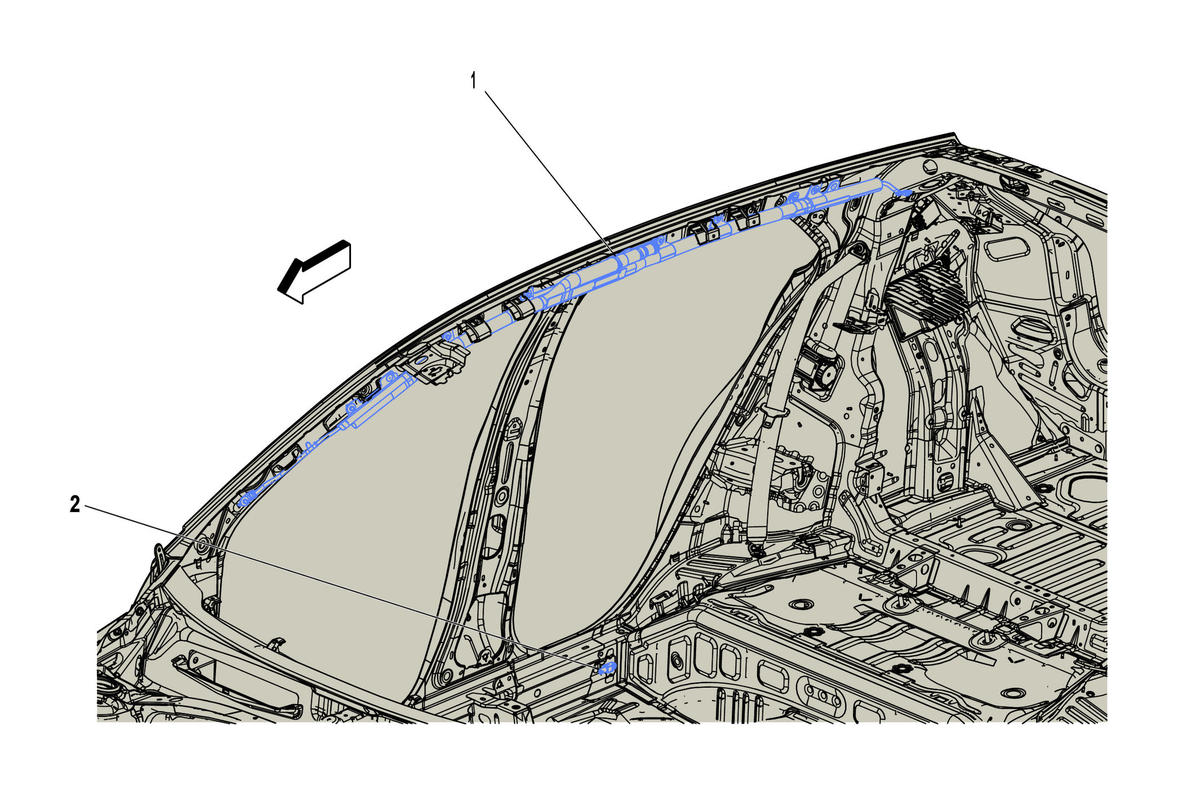

Right Rear of Passenger Compartment Components

Component Name Callout
F105R Front and Rear Row Roof Rail Airbag - Right F105R Front and Rear Row Roof Rail Airbag - Right 1
B63RRB Airbag Side Impact Rear Sensor - Right Sill B63RRB Airbag Side Impact Rear Sensor - Right Sill 2
