K194 Rear Gate Module X3 (TC2)
WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

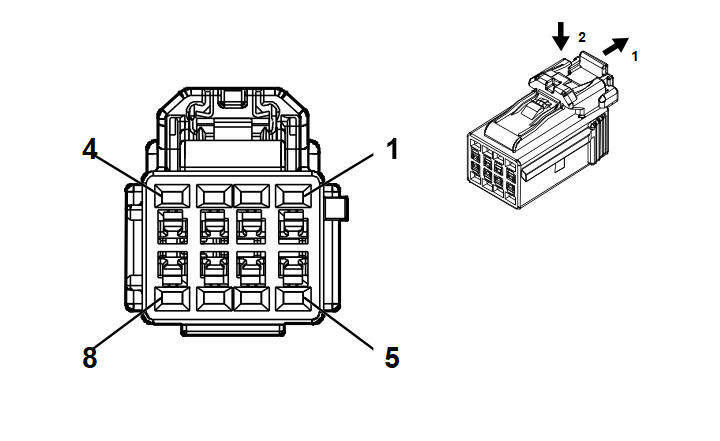

Connector Part Information
- Harness Type:Body Wiring Harness
- OEM Connector: 13533339
- Service Connector: 84613126
- Description: 8-Way F 1.2 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (L-GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
WH |
4689 |
Rear Closure Open/Close Motor Open Control |
I |
TC2 |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
BN/YE |
4686 |
Rear Closure Position Sensor Signal 2 |
I |
TC2 |
| 4 |
0.5 |
BN/RD |
4683 |
Rear Closure Position Sensor Voltage Reference |
I |
TC2 |
| 5 |
1 |
BN/WH |
4690 |
Rear Closure Open/Close Motor Close Control |
I |
TC2 |
| 6 |
0.35 |
BK/GN |
4687 |
Rear Closure Position Sensor Low Reference |
I |
TC2 |
| 7 |
0.75 |
BU/WH |
4685 |
Rear Closure Position Sensor Signal 1 |
I |
TC2 |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
