Parking Assist Control Module Replacement
WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

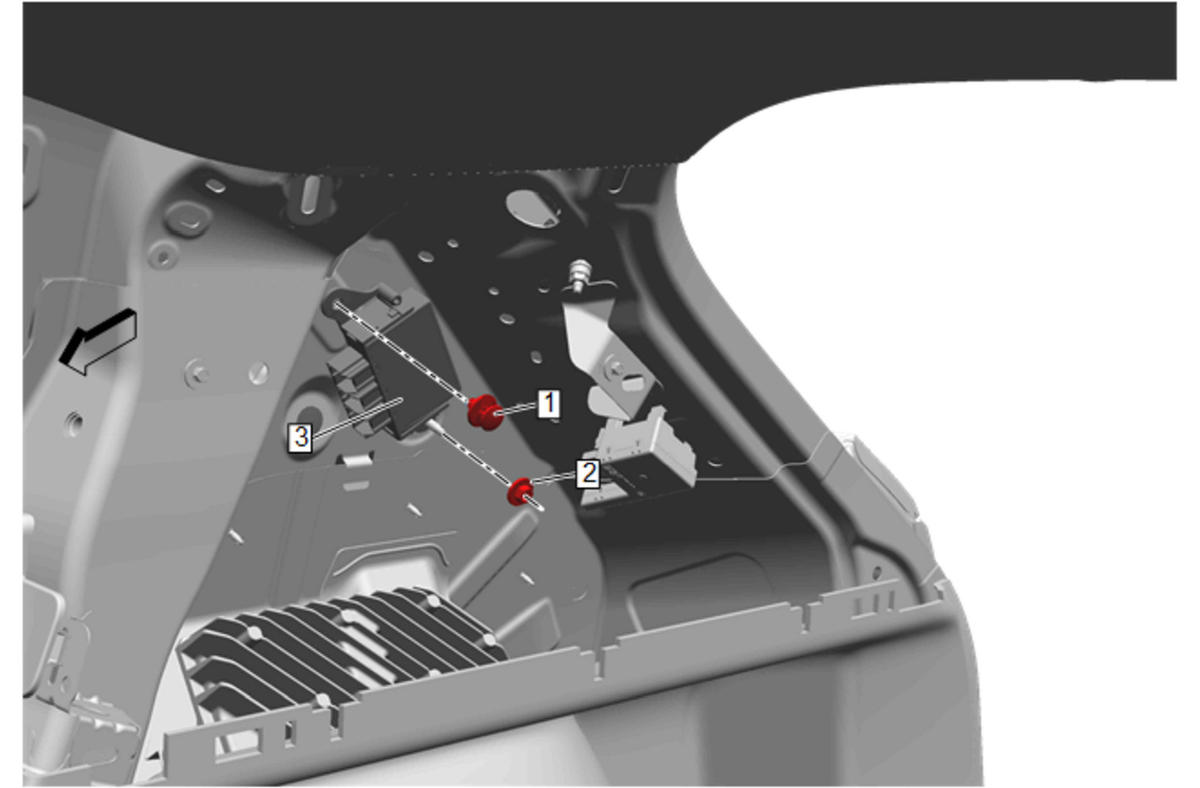

| Callout | Component Name |
|---|---|
| Preliminary Procedure Quarter Window Trim Finish Panel Replacement |
|
| 1 | Parking Assist Control Module Push-In Retainer |
| 2 | Parking Assist Control Module Nut
CAUTION:
Refer to Fastener Caution . Tighten 4.5 N.m (40 lb in) |
| 3 | Parking Assist Control Module Procedure
|
