M115 Power Transfer Unit Shift Actuator (F48)
 Courtesy of GENERAL MOTORS COMPANY
|

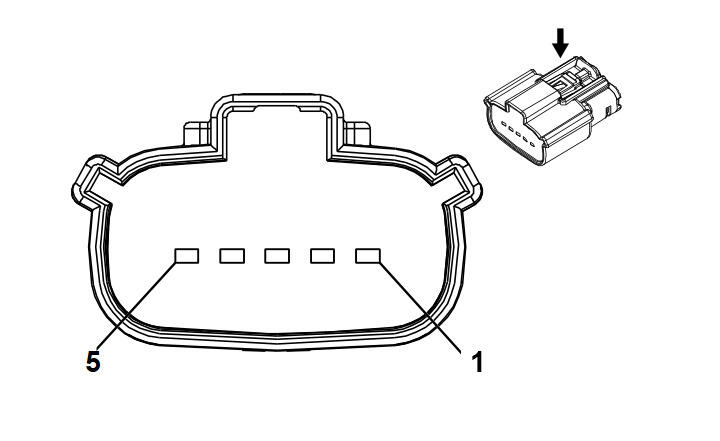

Connector Part Information
- Harness Type: Engine Wiring Harness
- OEM Connector: 13503504
- Service Connector: 19367568
- Description: 5-Way F 1.5 MX Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN / BN |
3848 |
All Wheel Drive Power Transfer Unit Position Sensor Signal |
I |
F48 |
| 2 |
0.5 |
WH / RD |
3847 |
All Wheel Drive Power Transfer Unit Position Sensor Voltage Reference |
I |
F48 |
| 3 |
0.5 |
BK / VT |
3846 |
All Wheel Drive Power Transfer Unit Position Sensor Low Reference |
I |
F48 |
| 4 |
1.5 |
BN / GN |
3945 |
All Wheel Drive Power Transfer Unit Motor Control B |
I |
F48 |
| 5 |
1.5 |
VT / BN |
3944 |
All Wheel Drive Power Transfer Unit Motor Control A |
I |
F48 |
