Q77H Transmission Control Solenoid Valve 8
 Courtesy of GENERAL MOTORS COMPANY
|

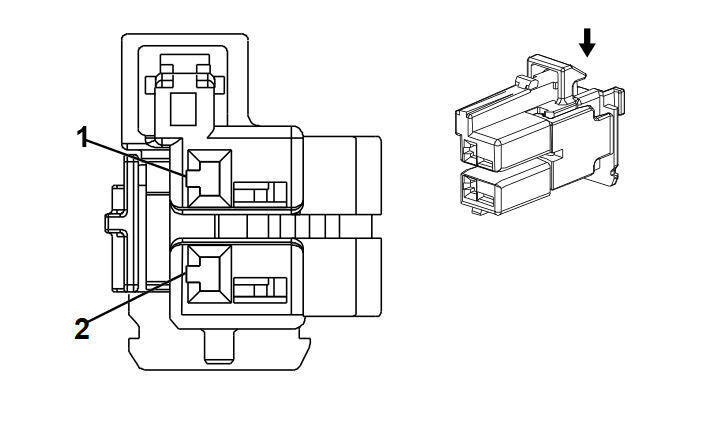

Connector Part Information
- Harness Type: Transmission Control Solenoid Valve 8
- OEM Connector: 1-2203696-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
GY / BN |
6388 |
Transmission High Side Driver 2 Control |
I |
- |
| 2 |
- |
BU |
6401 |
Clutch Solenoid Valve B Control |
I |
- |
