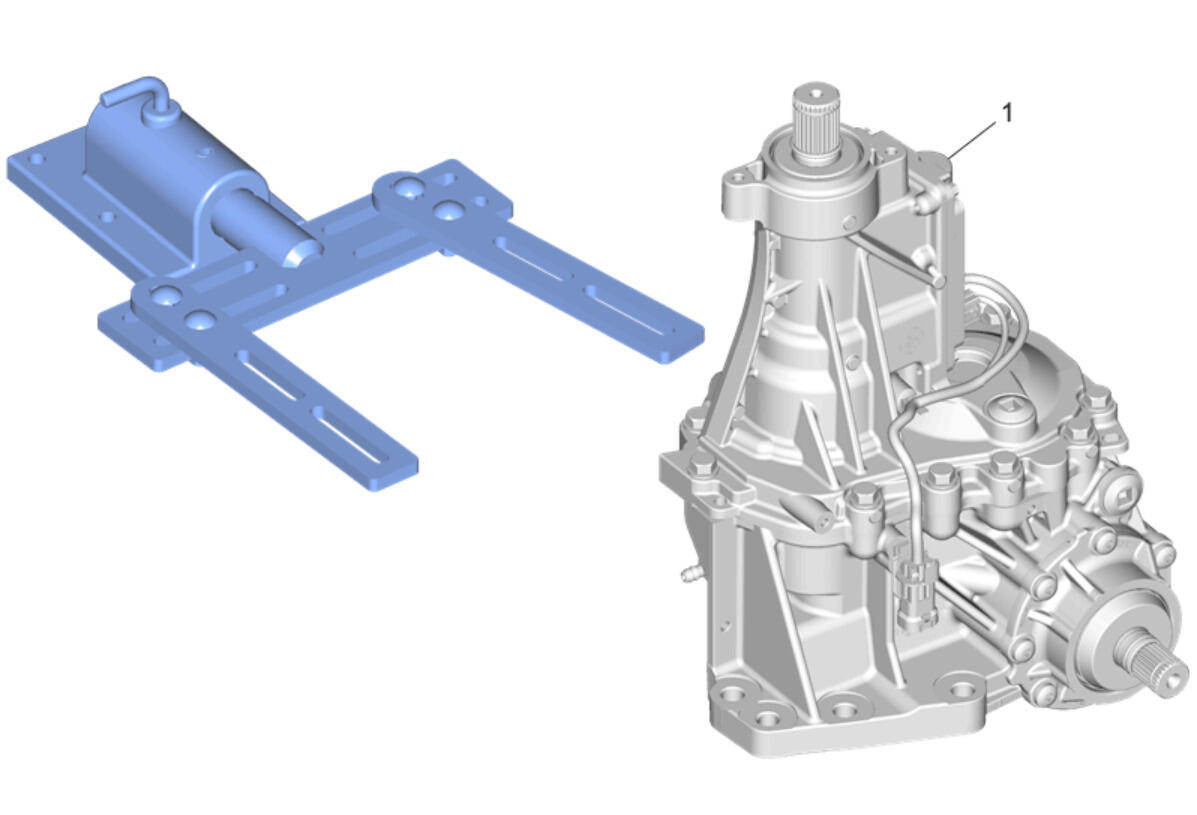

Power Transfer Unit Case Holding Fixture Installation

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
1	Power Transfer Unit Case NOTE: Always secure with the pivot pin after rotating. The power transfer unit can be rotated 360 degrees to facilitate repair. Special Tools DT-3289-20 Holding Fixture DT-36842 Transaxle Holding Fixture Equivalent regional tools:Special Tools
