Code 23 - Est CKT Fault: Notes

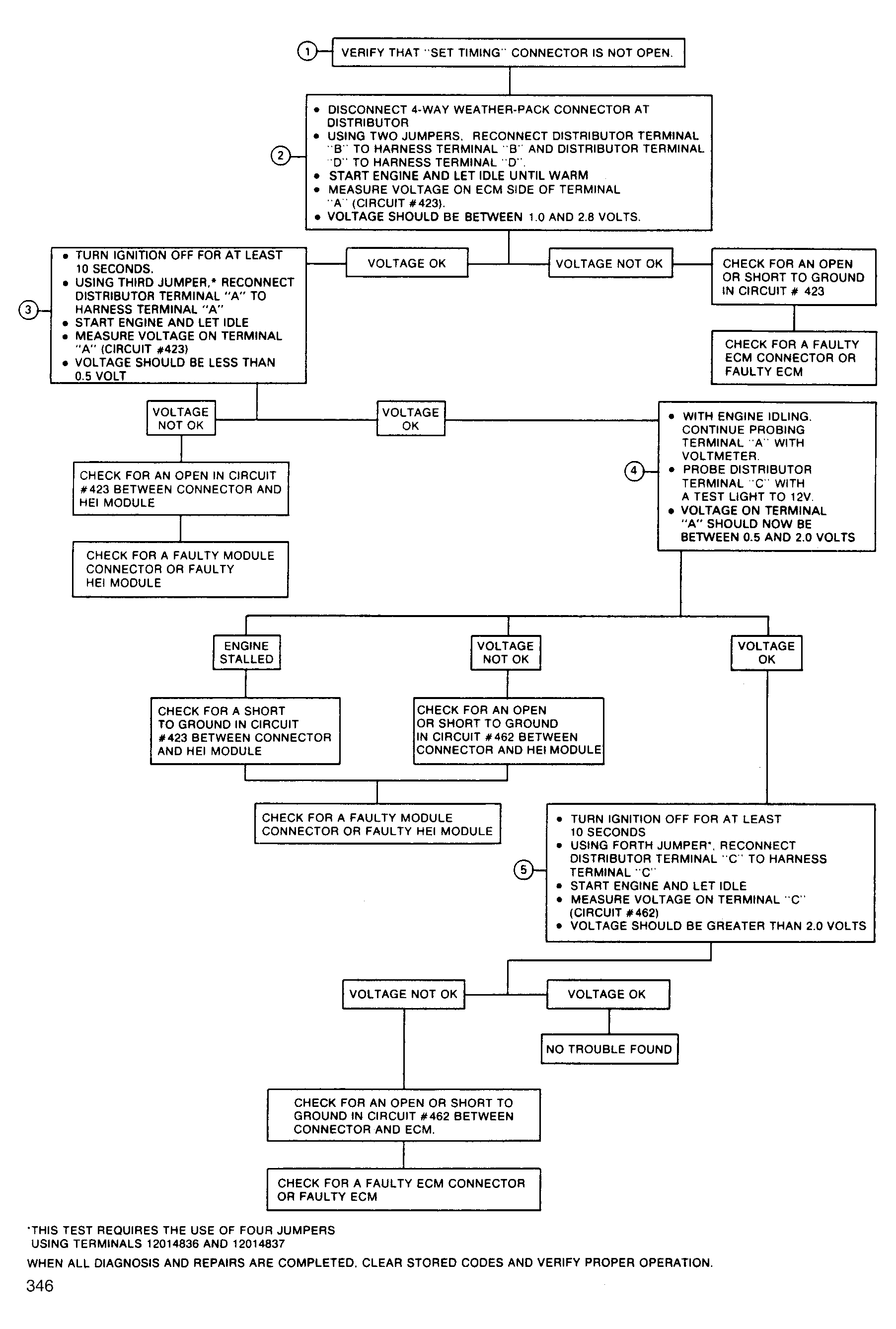

Fig 1: Flow Chart, Code 23 - EST Circuit Problem

G346

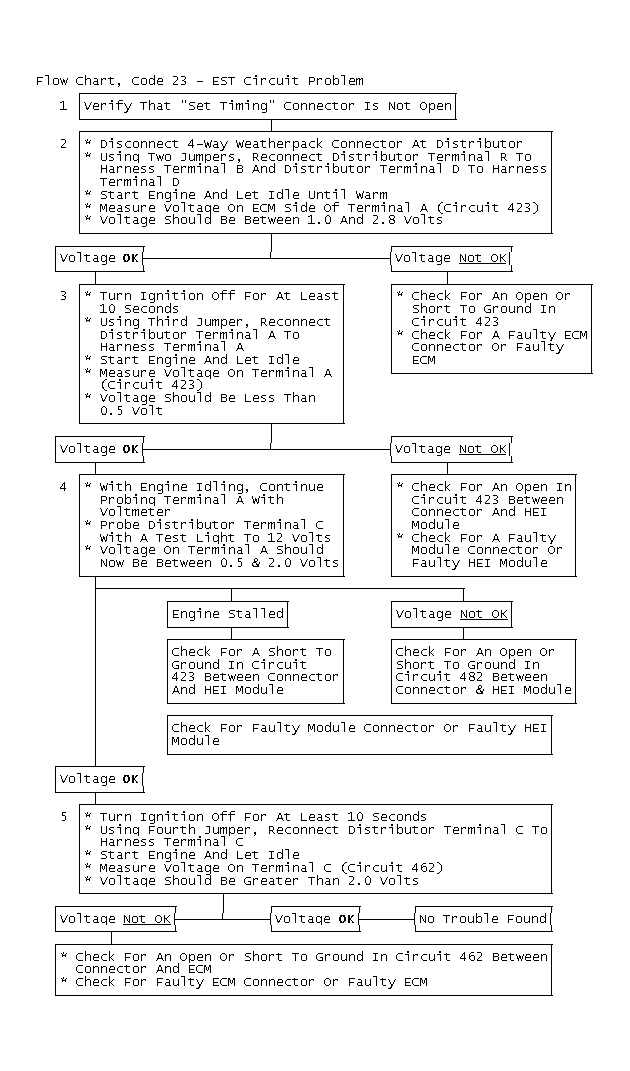

Fig 2: Flow Chart, Code 23 - EST Circuit Problem

GB0046321
