Electronic Climate Control (ECC) Power Module

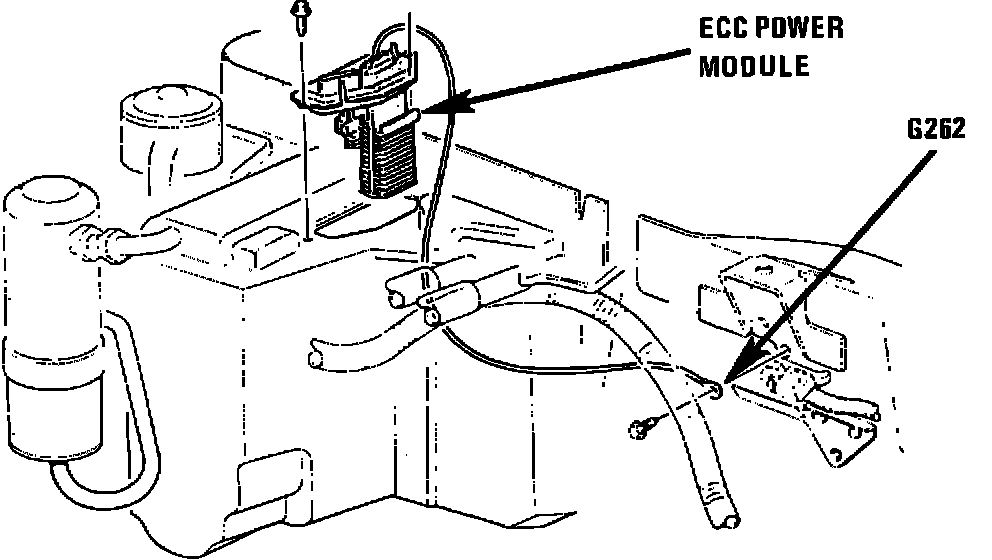

RH Side Of Engine Cowl.:






The Electronic Climate Control Module (ECC) is located on the RH side of engine cowl.
