ECM Connectors

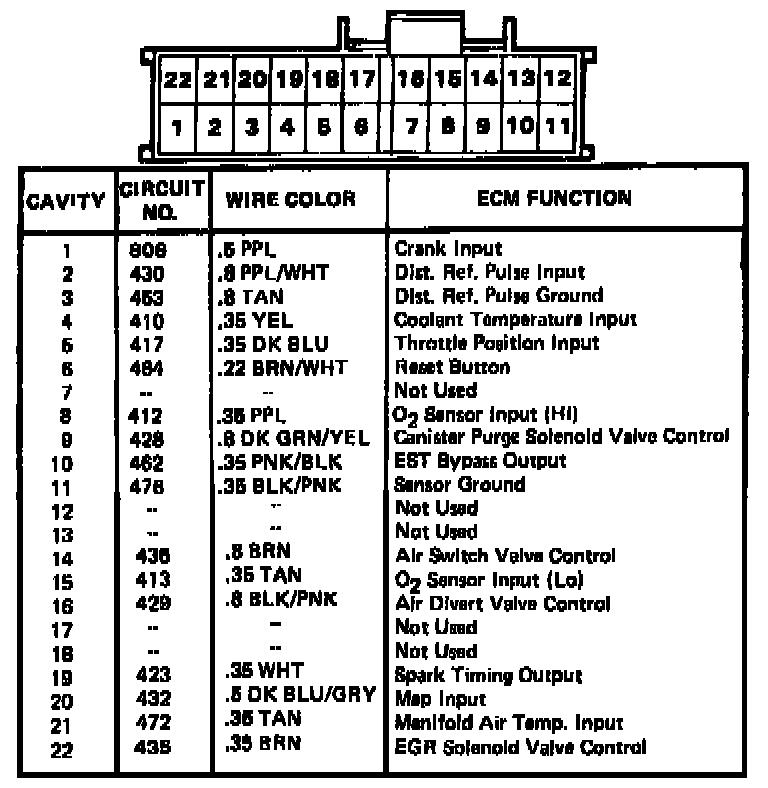

ECM Connector Number 714 (Black):

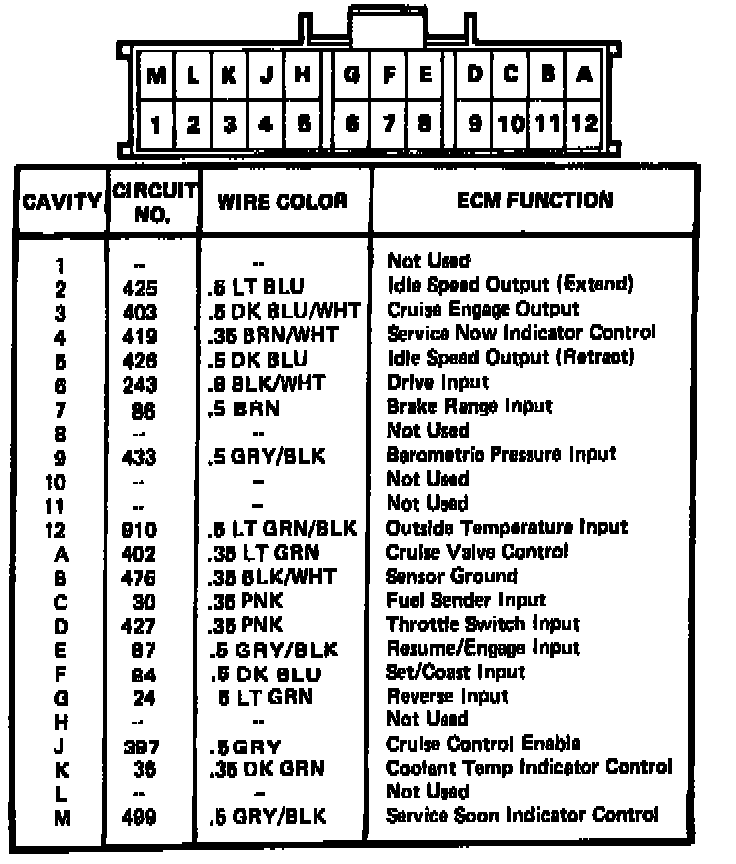

ECM Connector Number 715 (White):

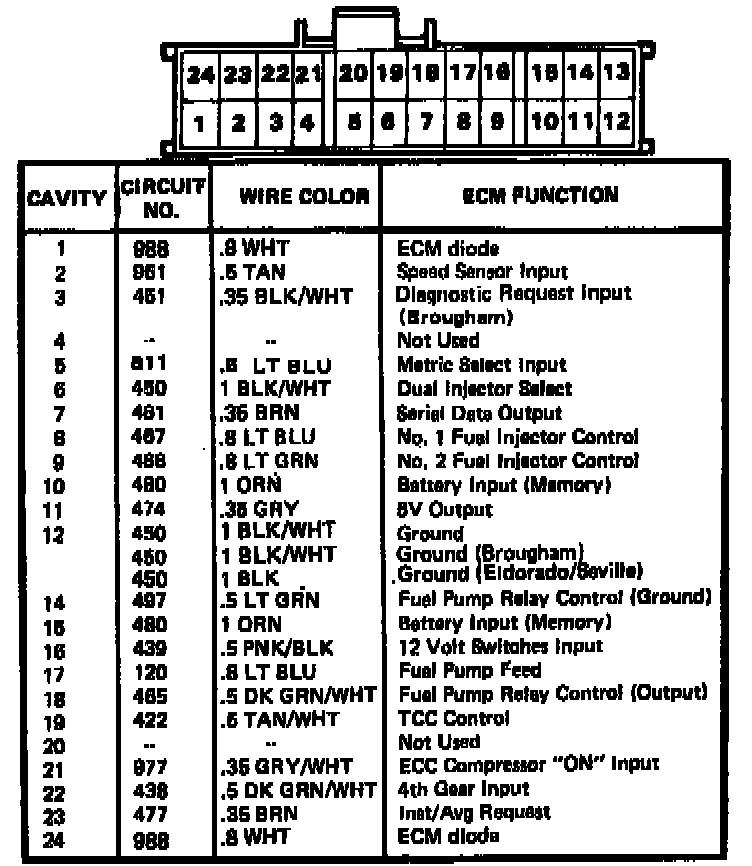

ECM Connector Number 716 (Black):
