Throttle Full Open Switch: Locations

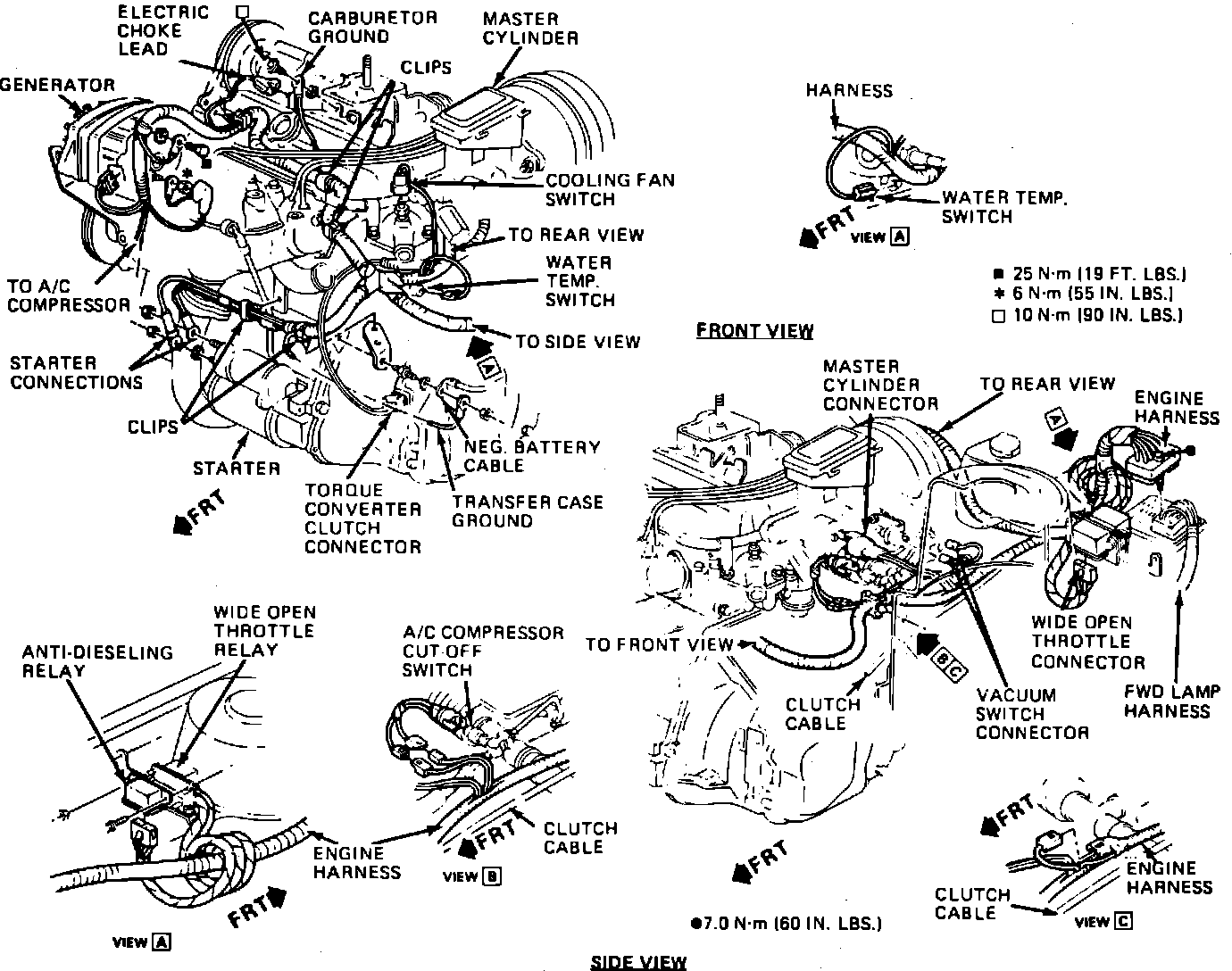

Engine Wiring Harness. (1 Of 2):

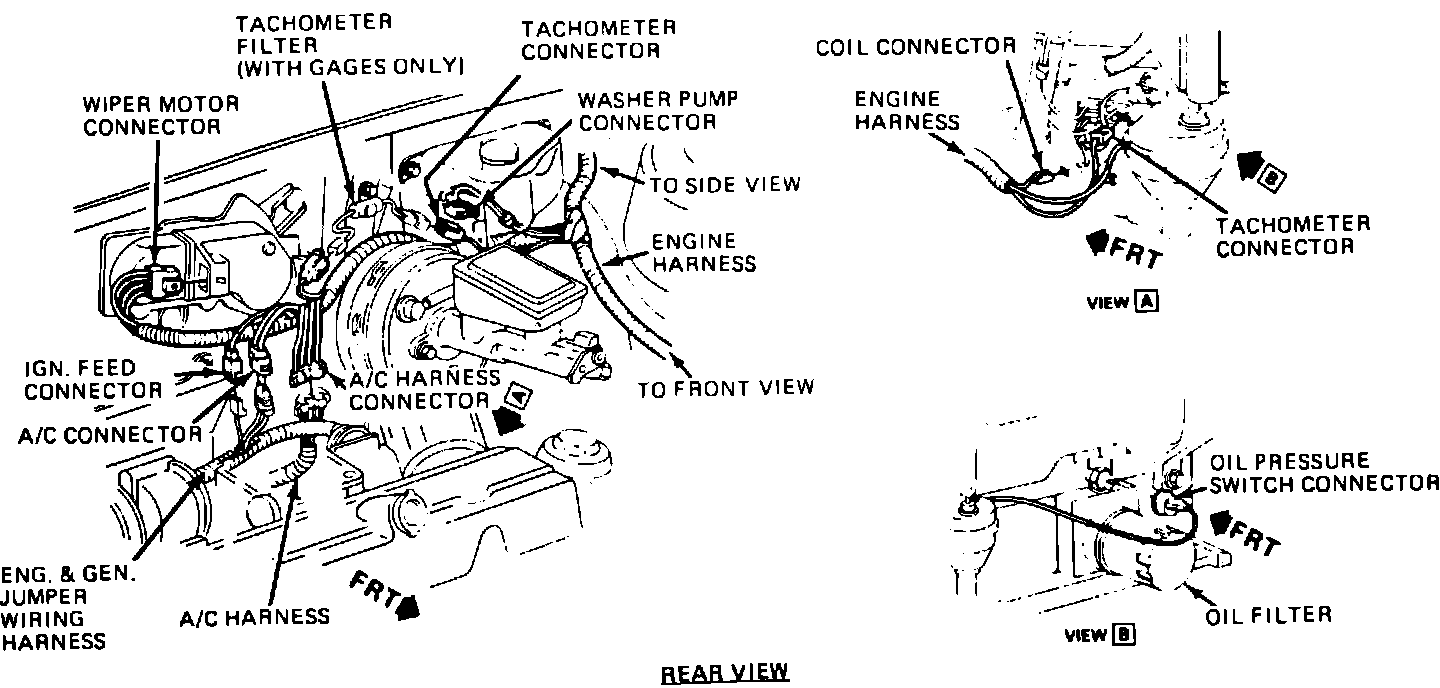

Engine Wiring Harness. (2 Of 2):




Near Shock Tower

Applicable to: 1986 Cavalier & Cimarron With 4-121/2.0L (Part 1 of 2)
