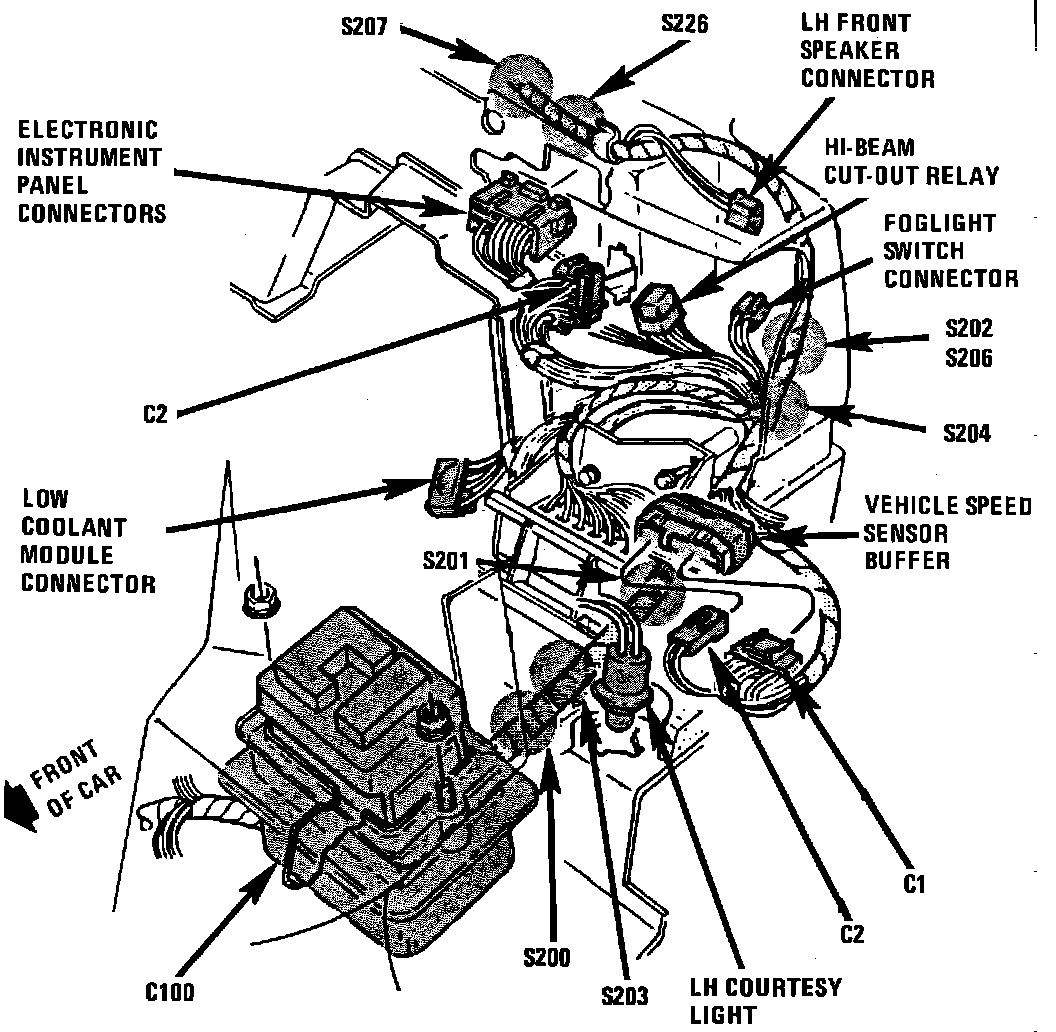

Vehicle Speed Sensor Buffer

Behind LH Side Of I/P.:




Behind I/P Above Steering Column

Applicable to: 1986 Cimarron
