Body Control Module

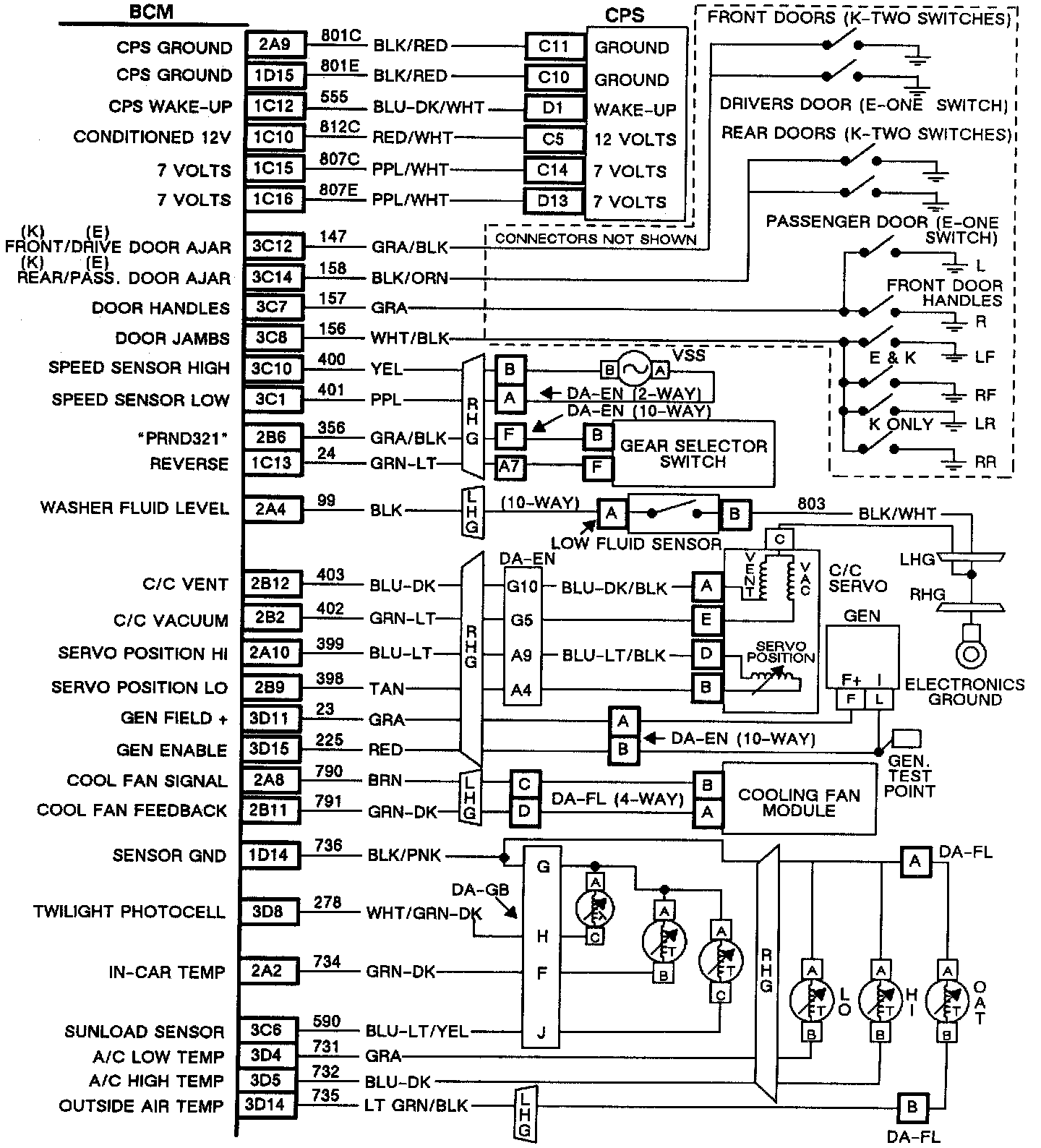

BCM Interface Detail:

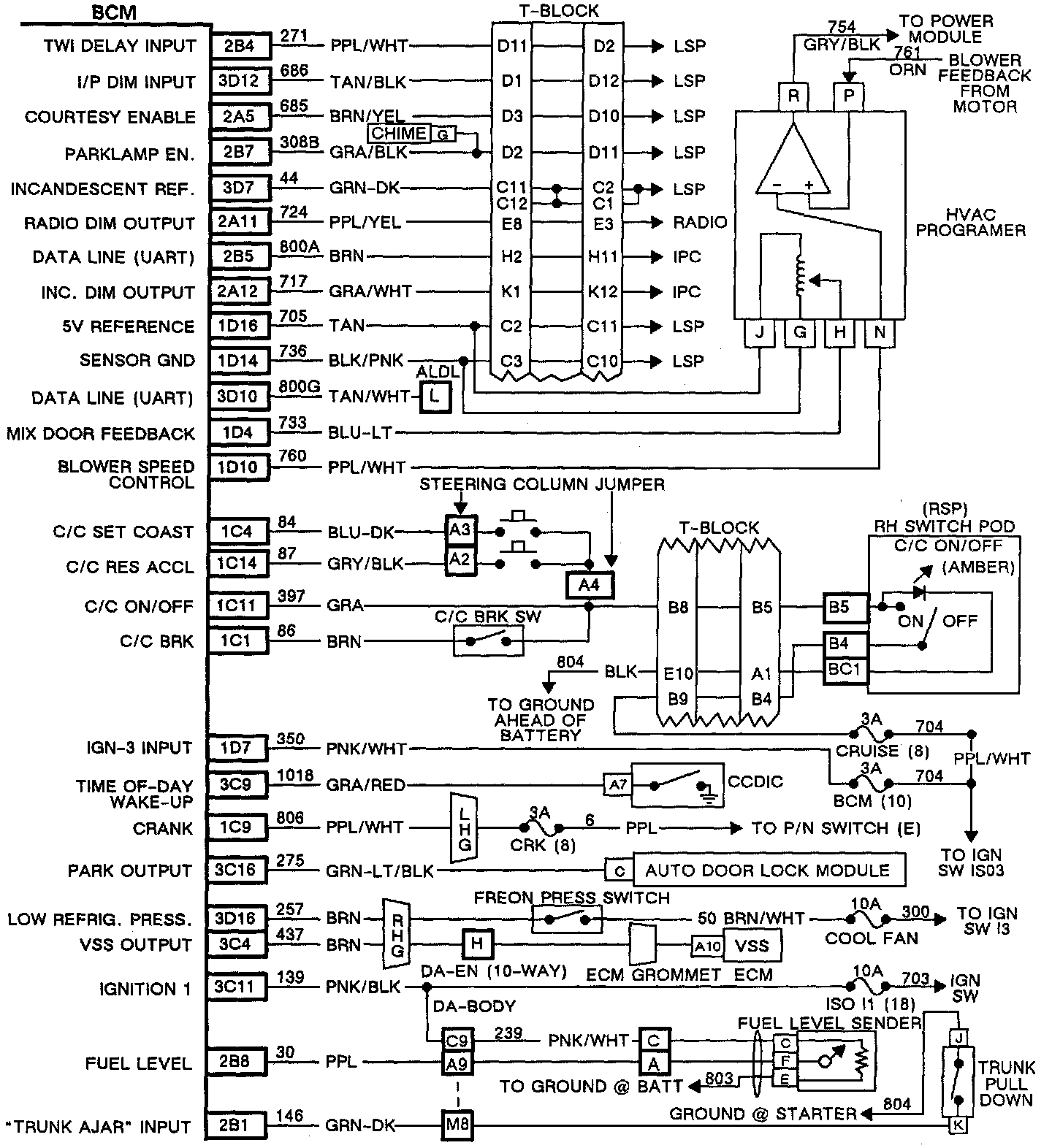

BCM Interface Detail:

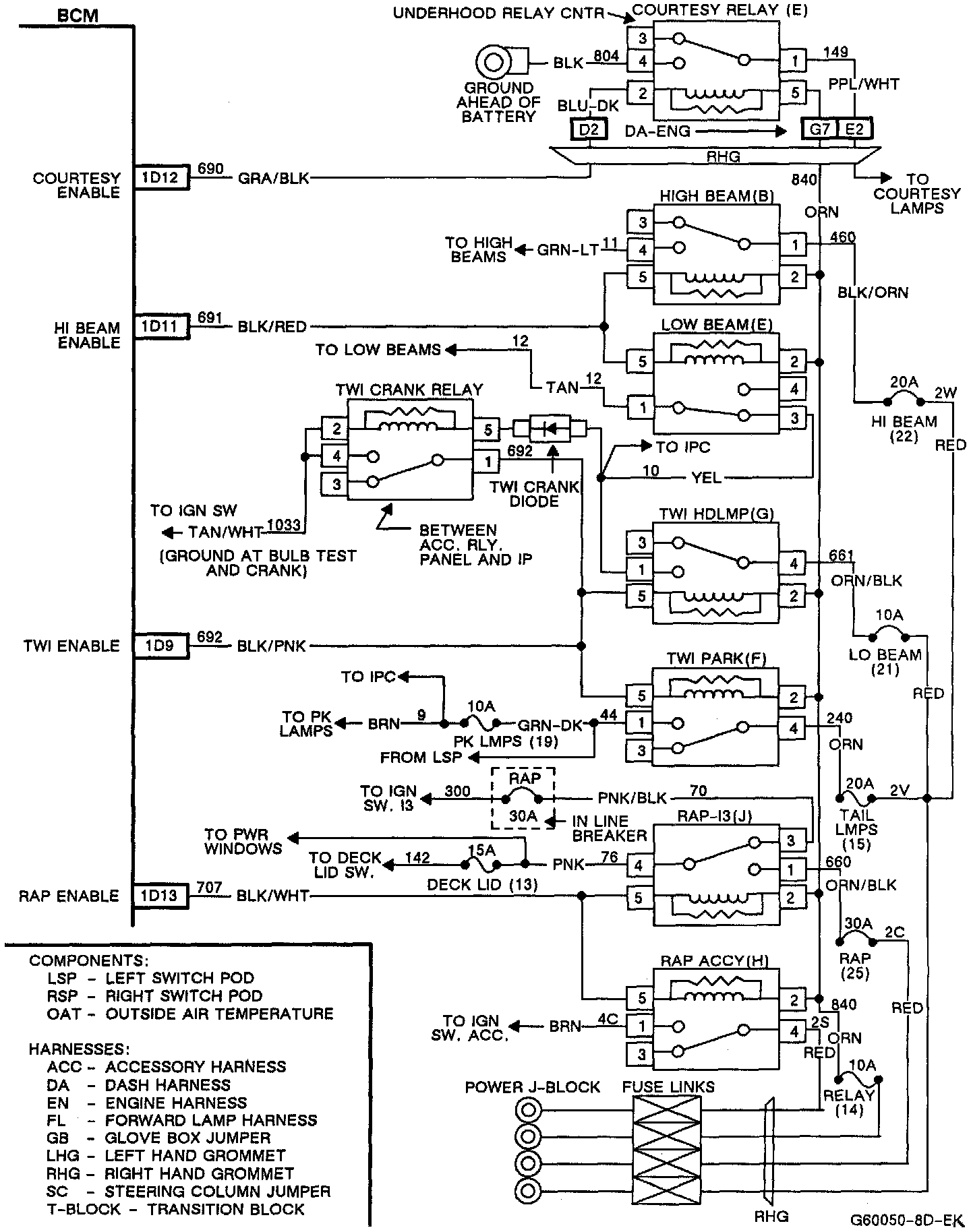

BCM Interface Detail:

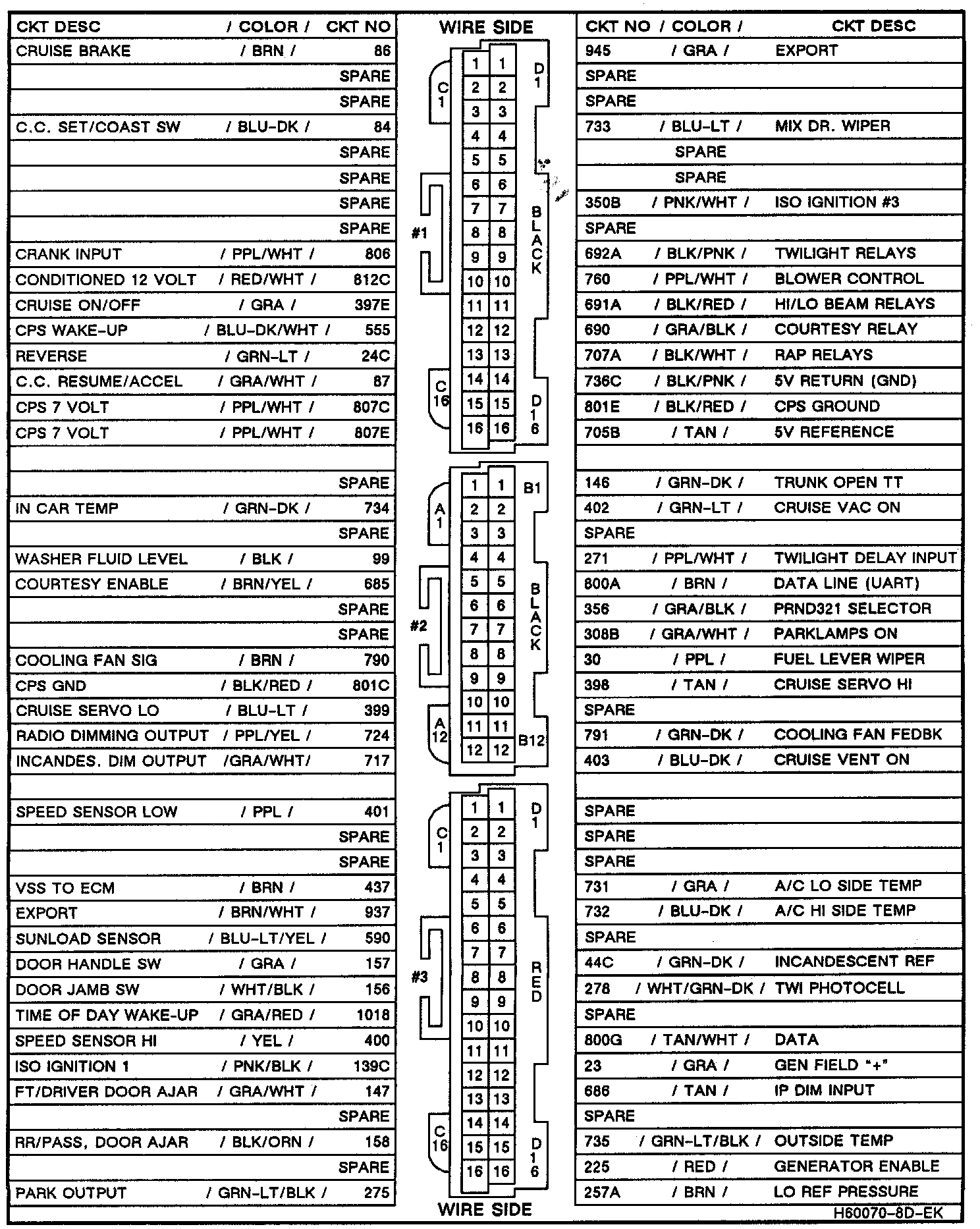

Wire Side BCM Connector View:
