Accessory Delay Module

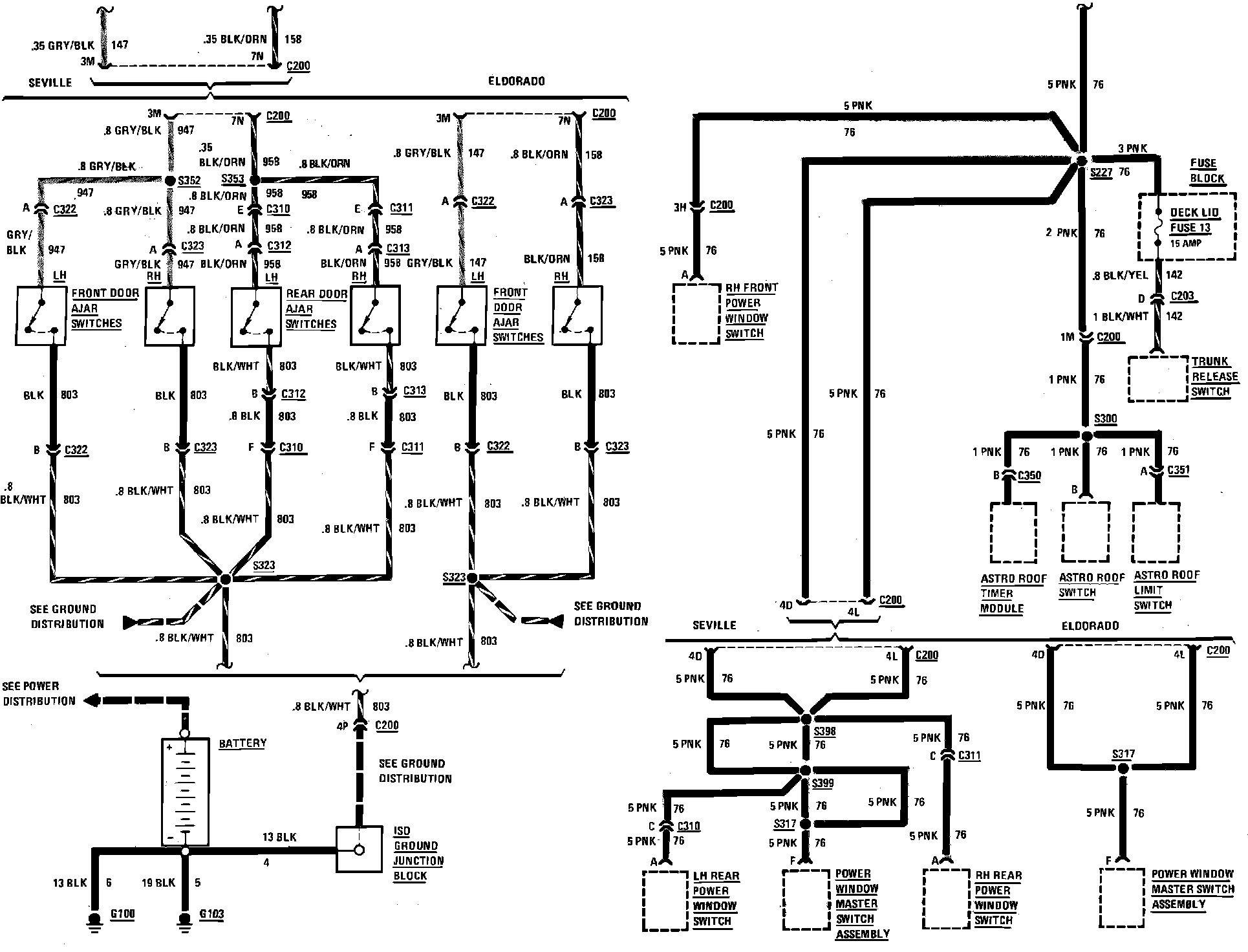

Accessory Power Wiring Circuit (Part 1 Of 2):

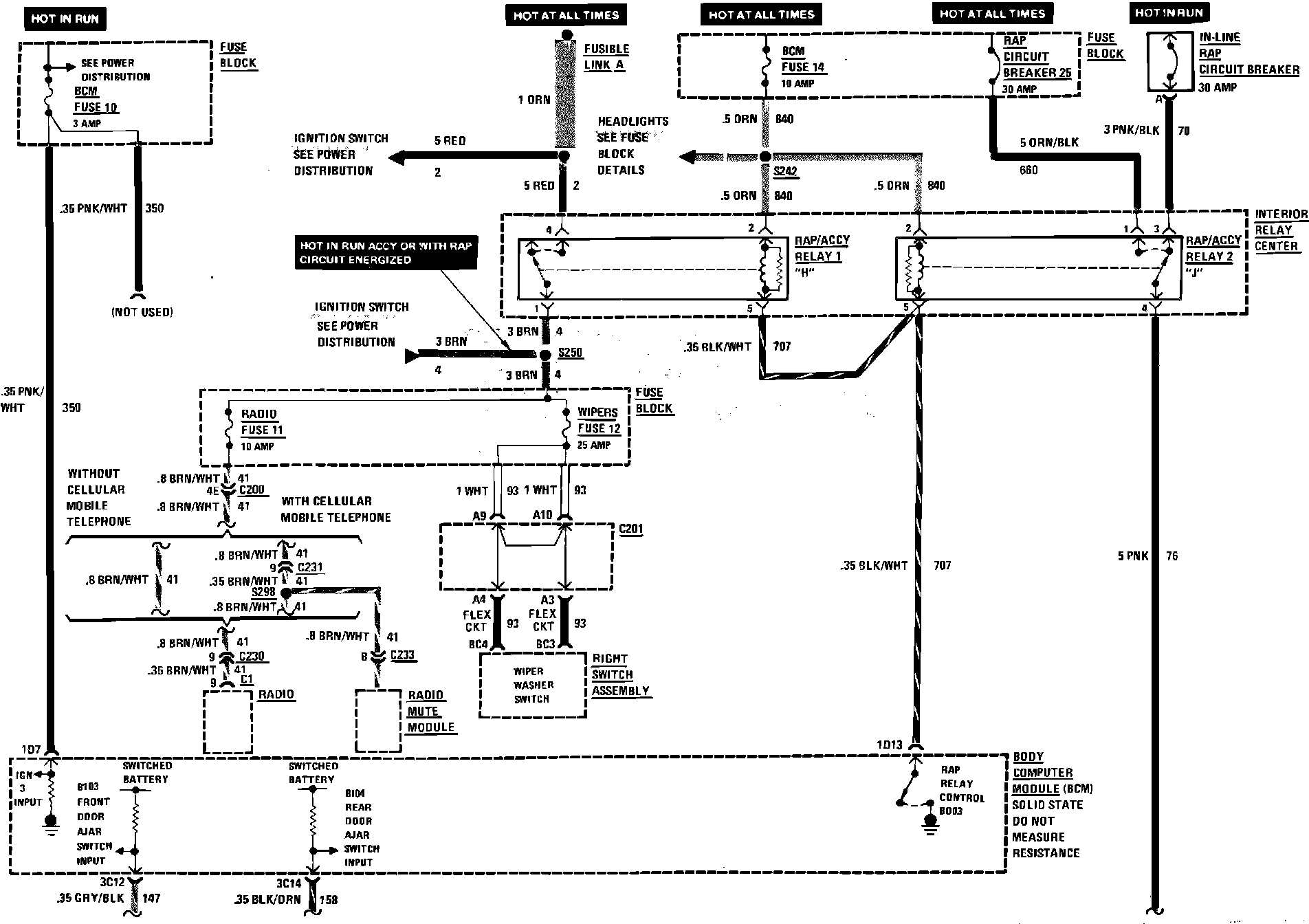

Accessory Power Wiring Circuit (Part 2 Of 2):
