Programmer

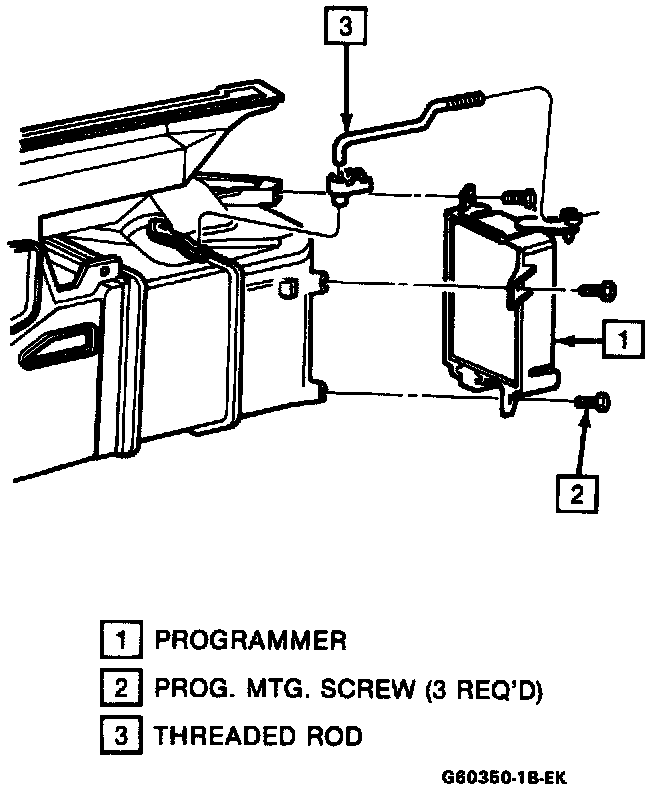

Programmer And Linkage:

REMOVE OR DISCONNECT
1. Right-hand sound insulator.
2. Glove box module.
3. Two Electronic Control Module (ECM) bracket screws and position ECM and bracket to gain access to rear programmer screw
4. Rod (3) and three screws (2) and vacuum connector retaining nut
5. Electrical and vacuum connectors.

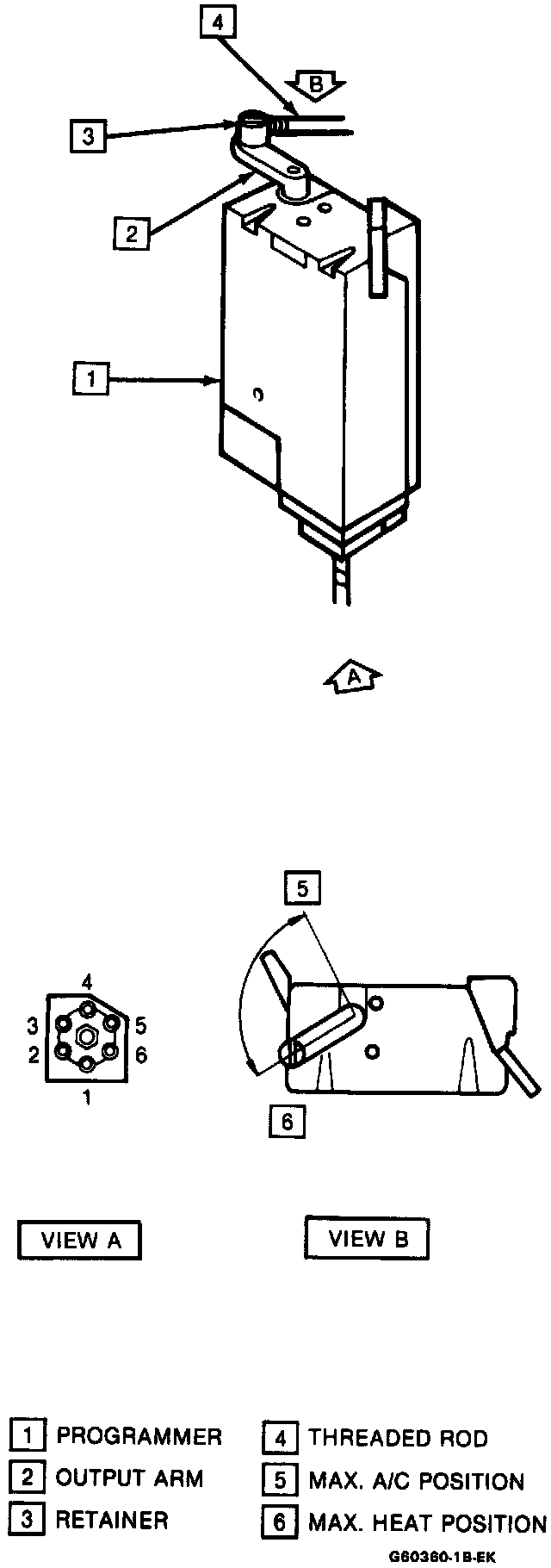

6. Adjust. Refer to Air Mix Valve Adjustment. Adjustments
