Solar Sensor: Service and Repair

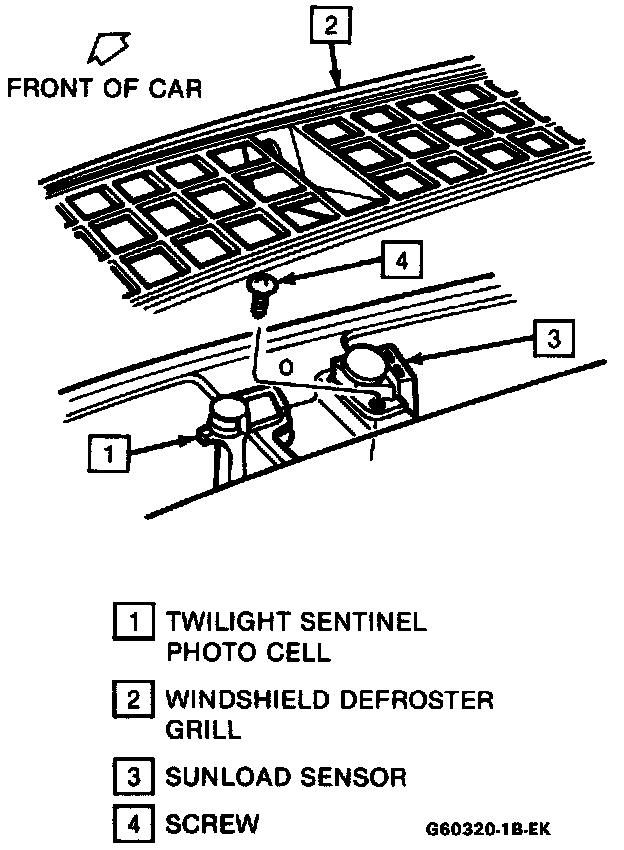

Sunload Sensor:






REMOVE OR DISCONNECT
1. Windshield defogger grille (2).
2. Sunload sensor screw (4) and connector.
3. Sunload sensor (3).
