Coolant Temperature Sensor/Switch (For Computer): Service and Repair

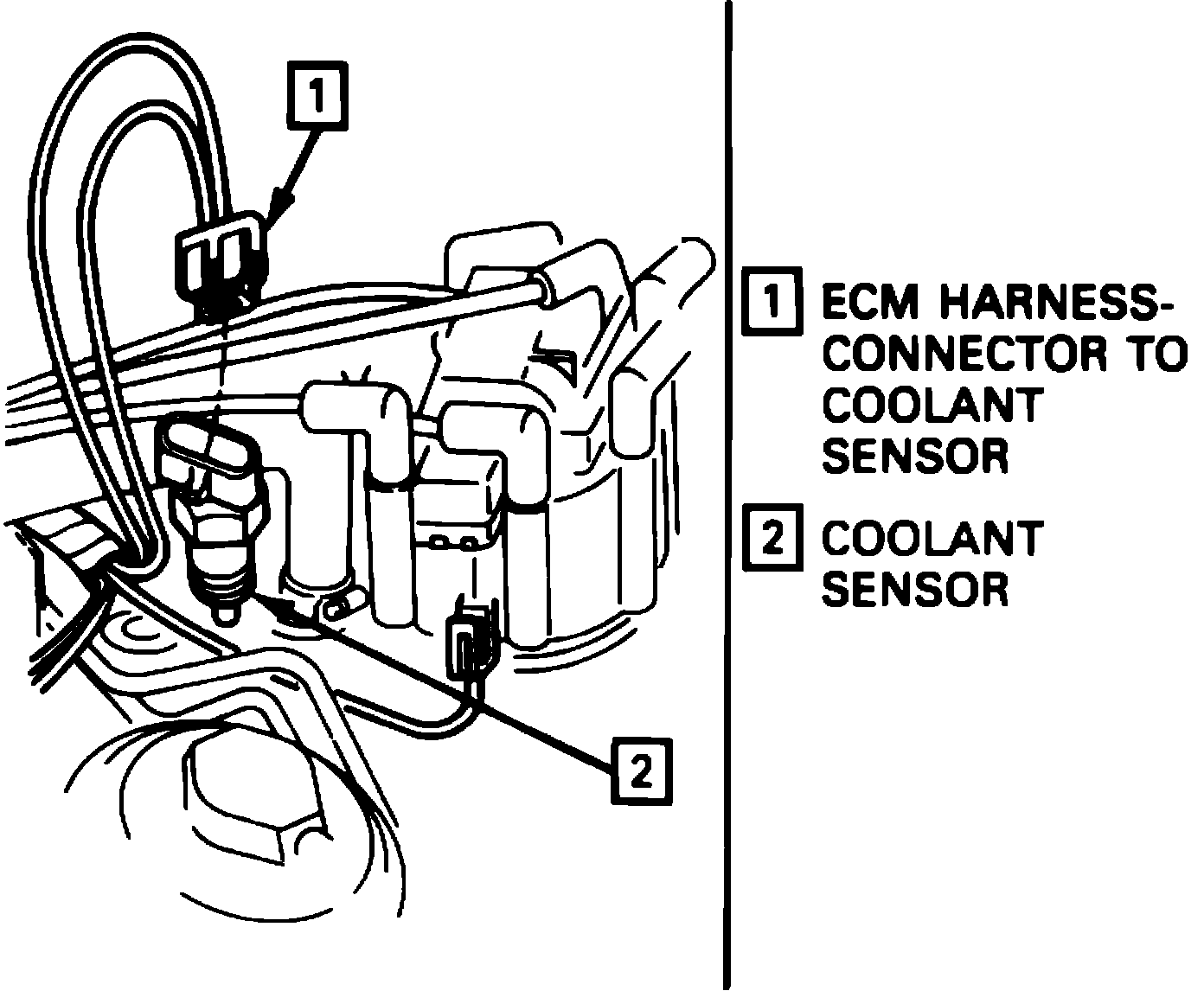

Fig. 76 Coolant sensor replacement:

1. Partially drain engine coolant from radiator.
2. Disconnect electrical connector from coolant sensor, then carefully back sensor out of engine, Fig. 76.
3. Reverse procedure to install.
