Vehicle Speed Sensor: Service and Repair

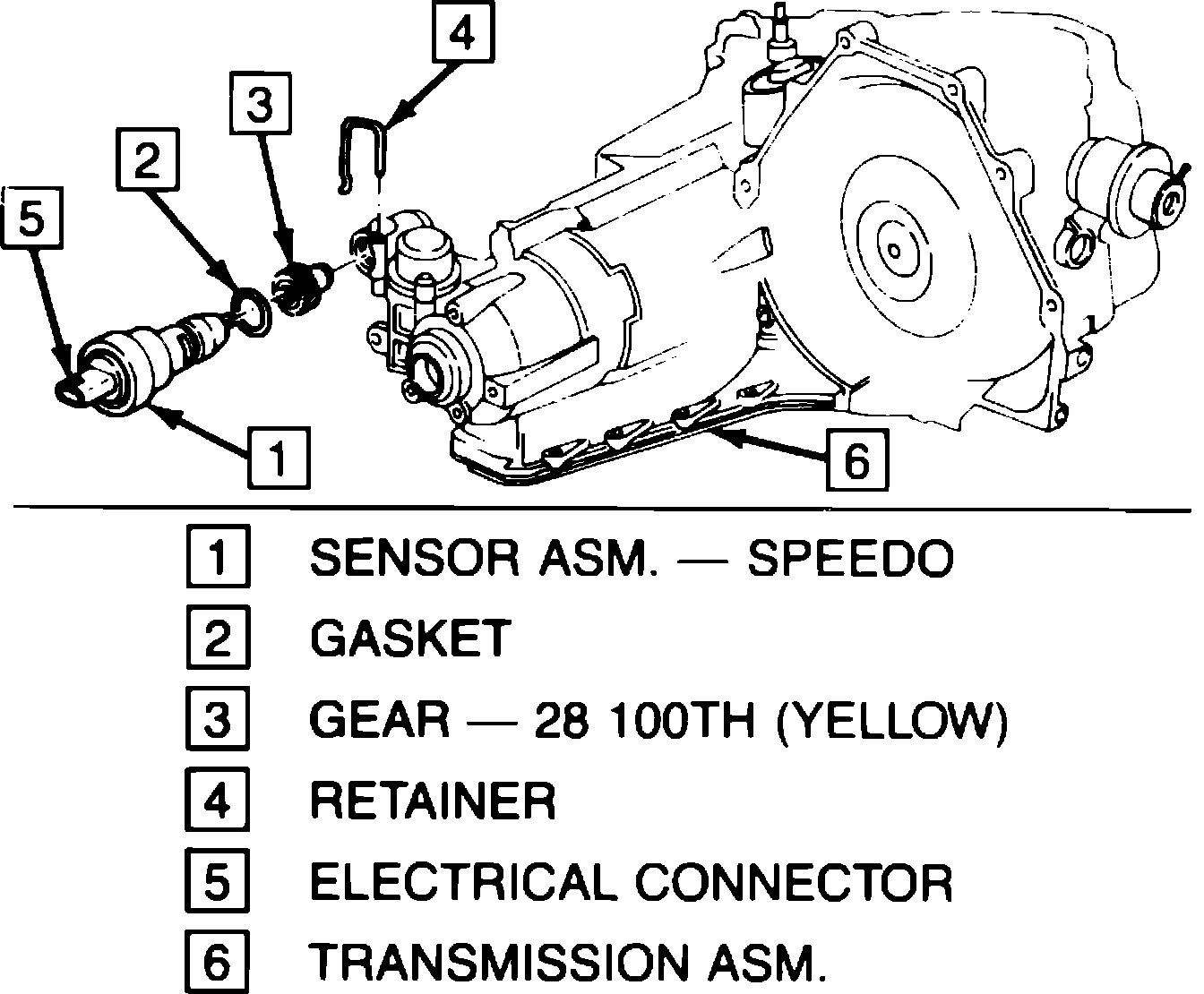

Fig. 80 Vehicle speed sensor (VSS) replacement:

1. Disconnect electrical connector from speed sensor.
2. Remove retainer, then the speed sensor and gear from transmission, Fig. 80.
3. Reverse procedure to install.
