Electronic/Powertrain Control Module (ECM/PCM)

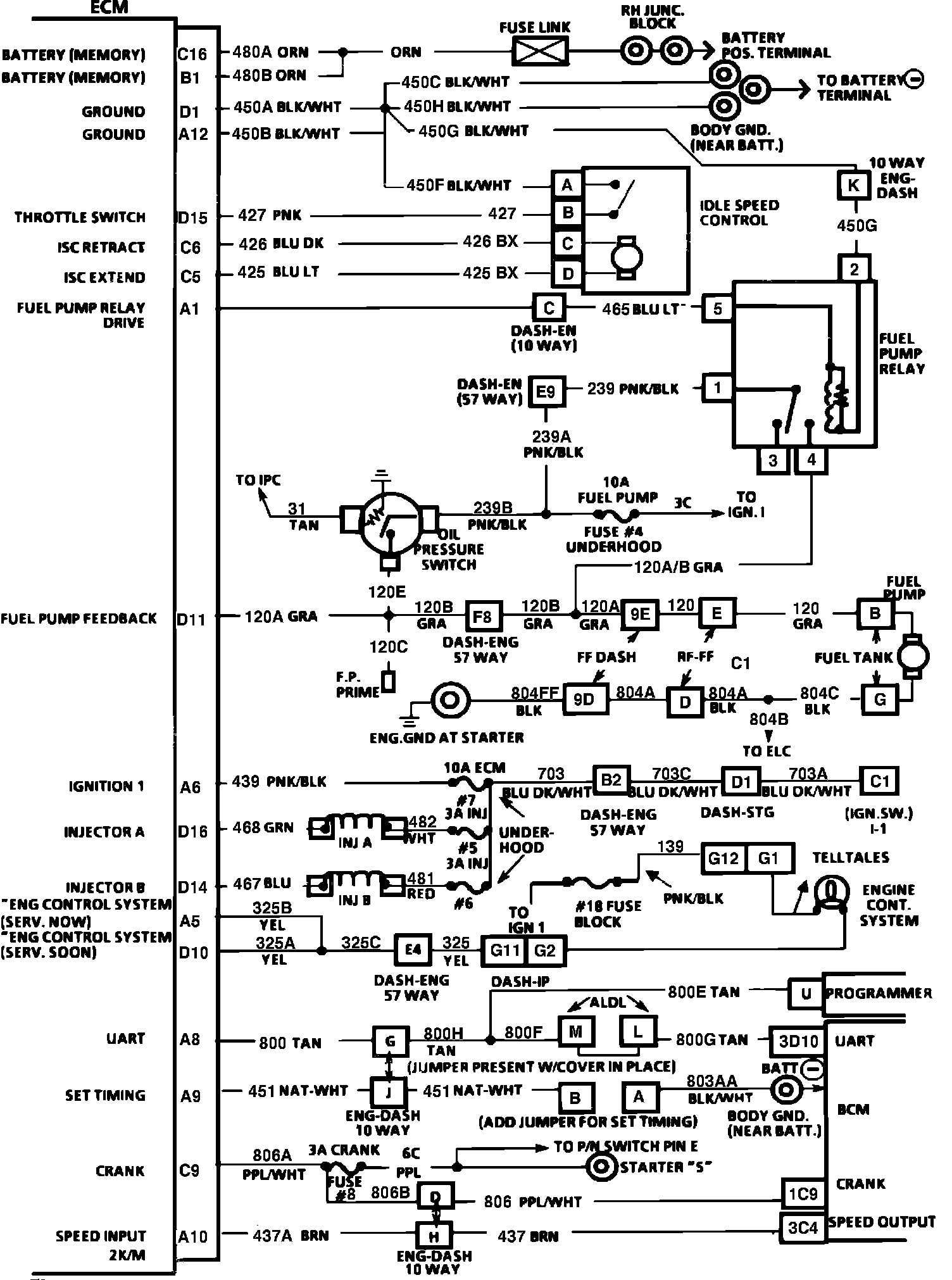

Fig. 7a ECM Wiring Circuit (Part 1 of 2):

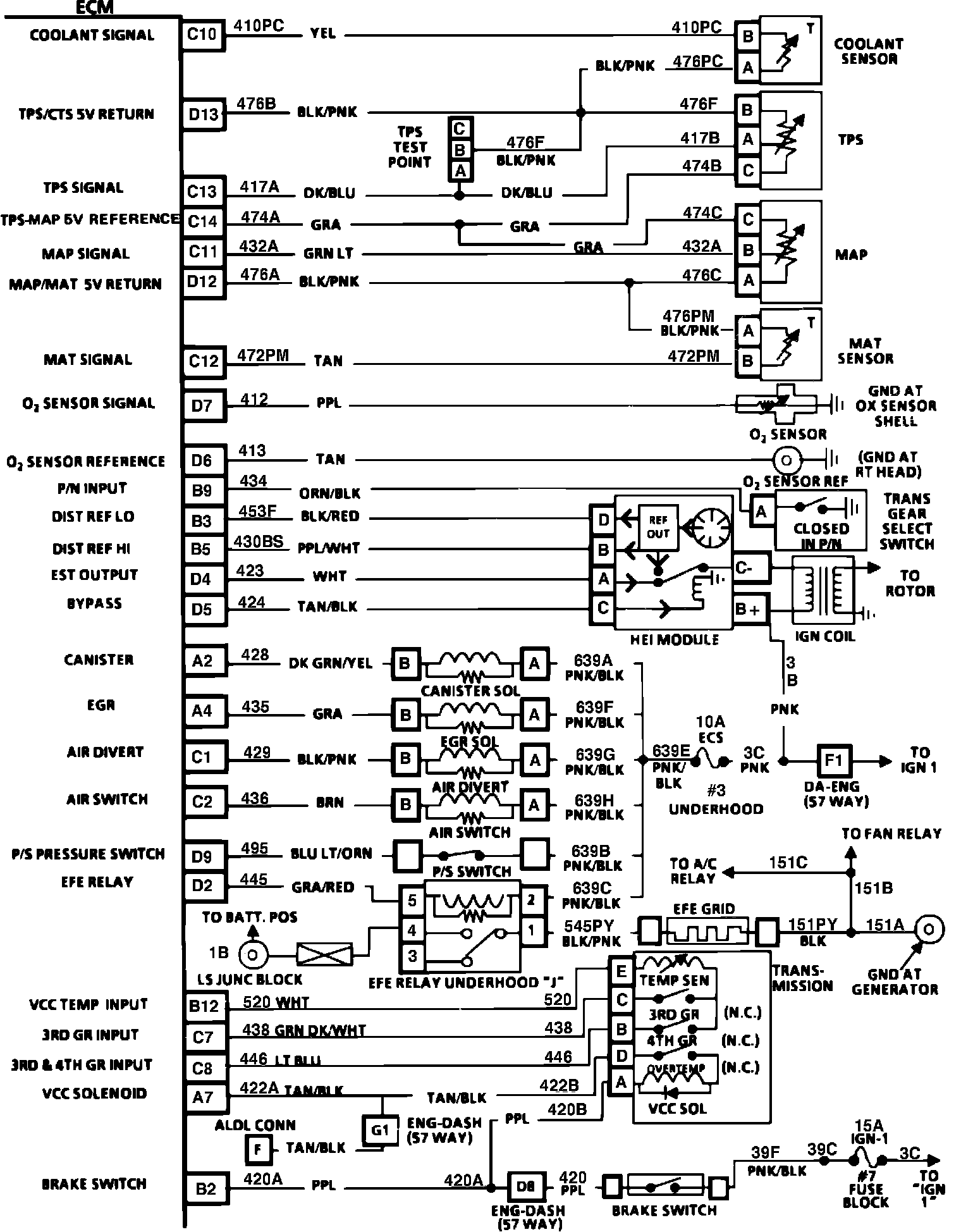

Fig. 7b ECM Wiring Circuit (Part 2 of 2):
