Notes On INTERMITTENTS

If intermittent code B123 is being set, manipulate circuit No. 685. When BCM input B101 change-of-state indicator displays an "X", check circuit at that location for intermittent fault.

Fig 1: Code B123 Schematic, Courtesy Light Switch

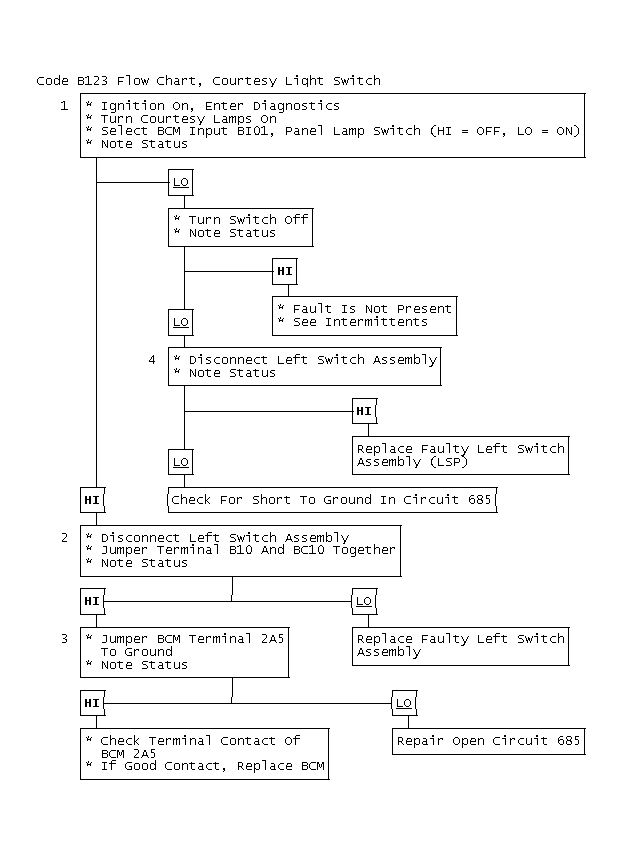

Fig 2: Code B123 Flow Chart, Courtesy Light Switch

Fig 3: Code B123 Flow Chart, Courtesy Light Switch
