Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | In trunk, on left wheelwell. |
| Automatic Door Lock Module | Behind instrument cluster, to right of steering column. |

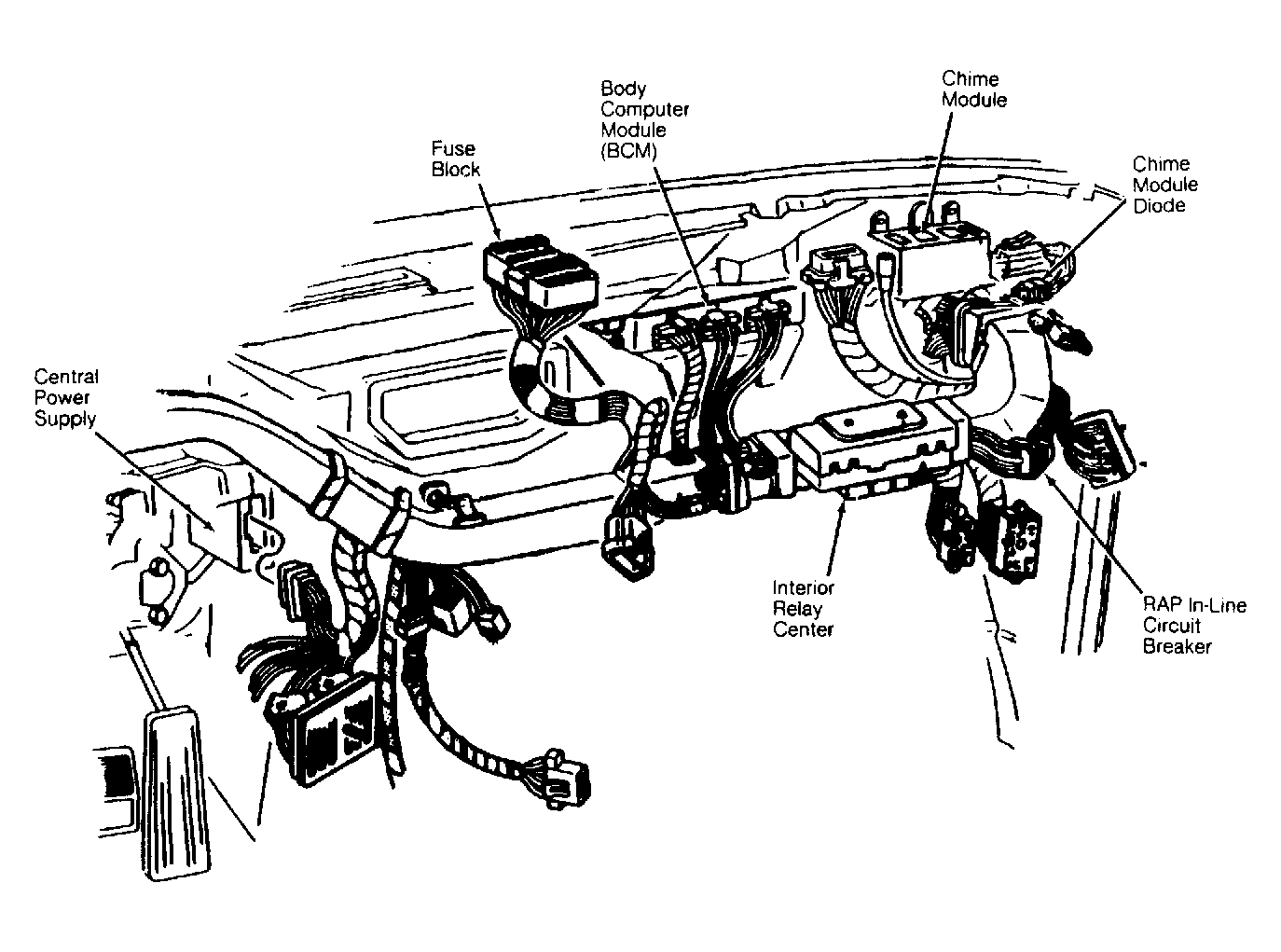

| Body Computer Module (BCM) | Beind right side of dash, behind glove box. See Figure . |
| Chime Module | Under right side of dash, to right of glove box. See Figure . |
| Cooling Fan Control Module | On bottom of upper radiator support, to right of radiator. |
| Elect. Climate Control Power Module | On right side of firewall, in engine compartment. |
| Elect. Climate Control Programmer | Under right side of dash, on right side of plenum. |
| Electronic Control Module (ECM) | Under right side of dash, near glove box. See Figure . |
| Hazard/Turn Signal Module | Behind instrument cluster, near steering column. |

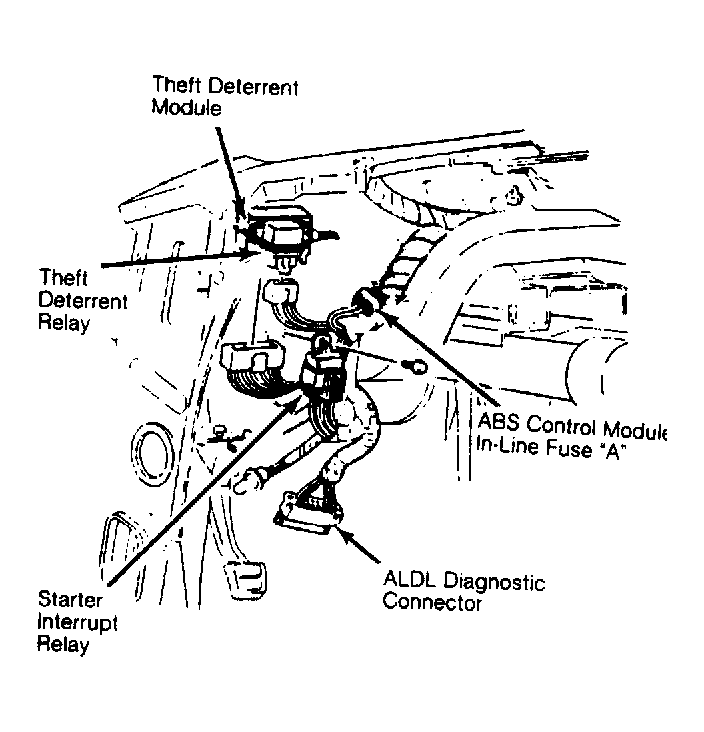

| Theft Deterrent Module | Under left side of dash, near kick panel. See Figure . |
| Turn Signal Alert Module | Under left side of dash, in front of theft deterrent module. |
| Wiper/Washer Motor Module | On left side of firewall, in engine compartment. |
