Powertrain Control Module (PCM)

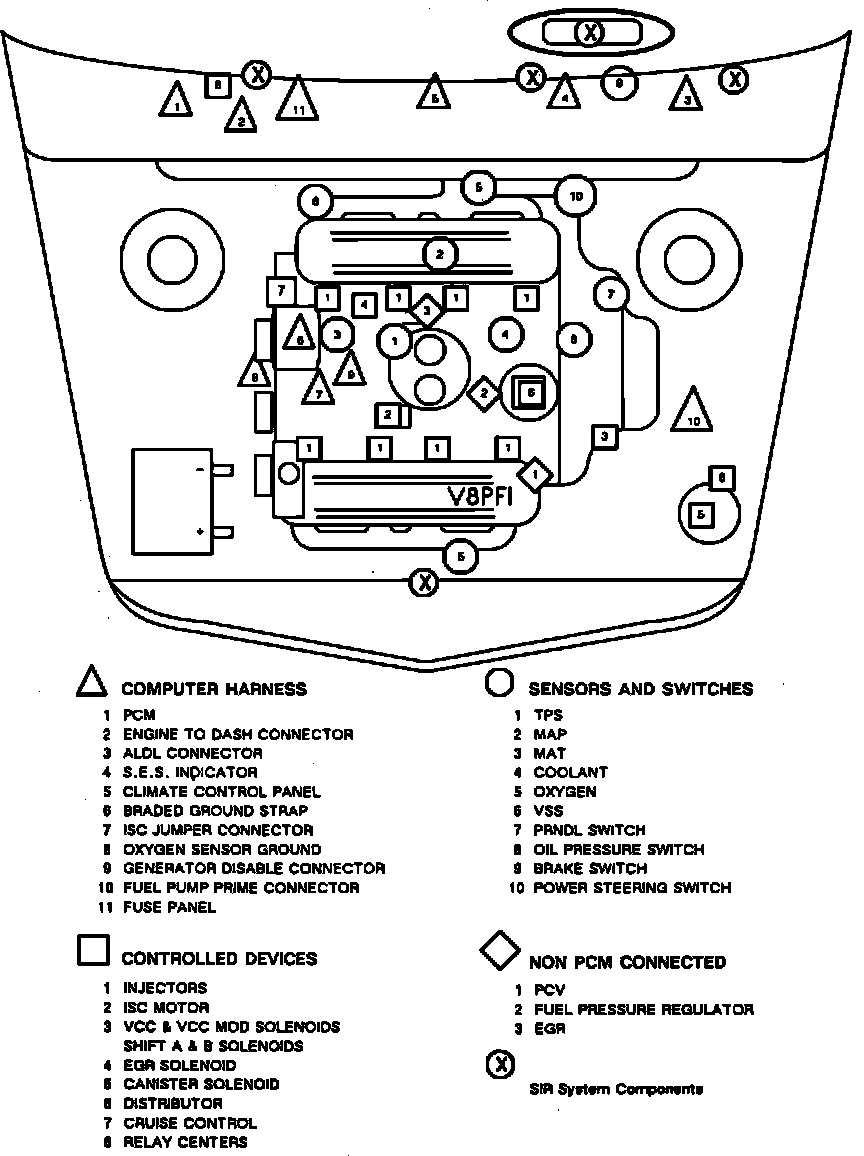

Engine Compartment Component Location.:




Behind RH Side Of I/P, Behind Glove Box

Applicable to: 1991 Eldorado/Seville
