Connector Identification

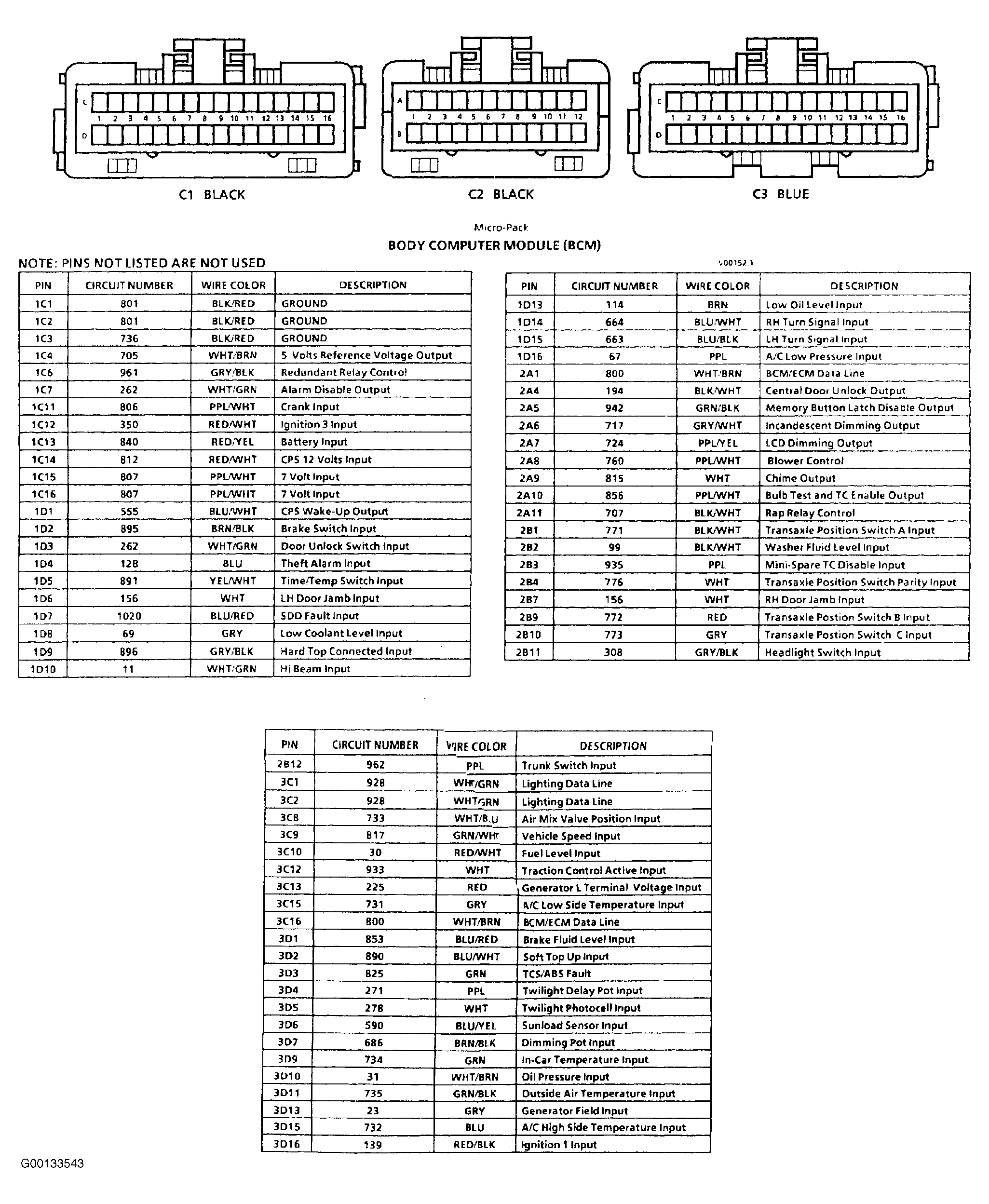

Fig 1: Identifying BCM Connectors & Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
