Engine Control Module

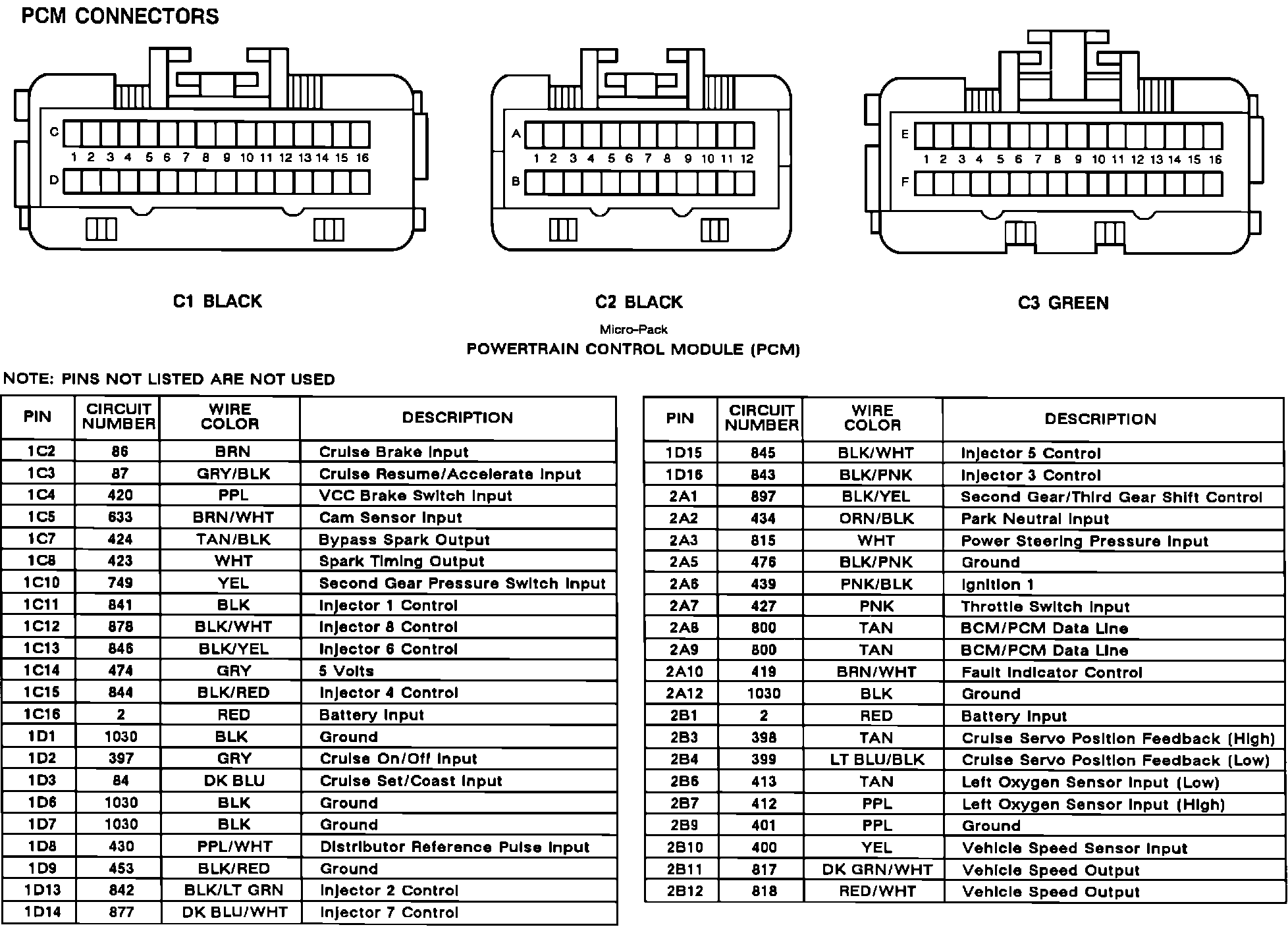

Connector View and Pinout (1 Of 2):

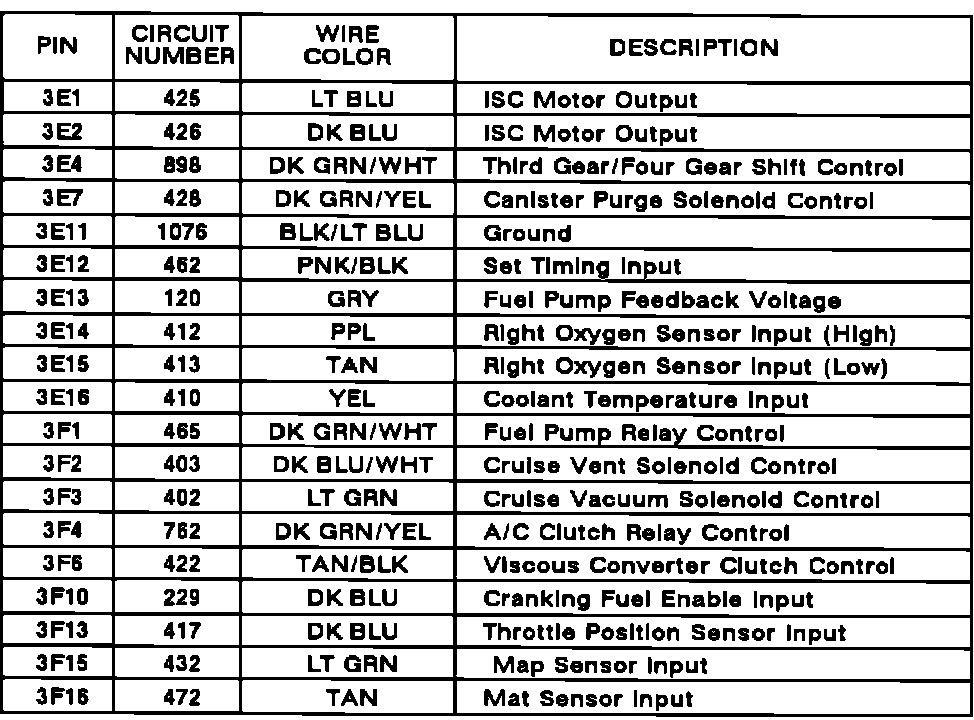

Connector View and Pinout (1 Of 2):

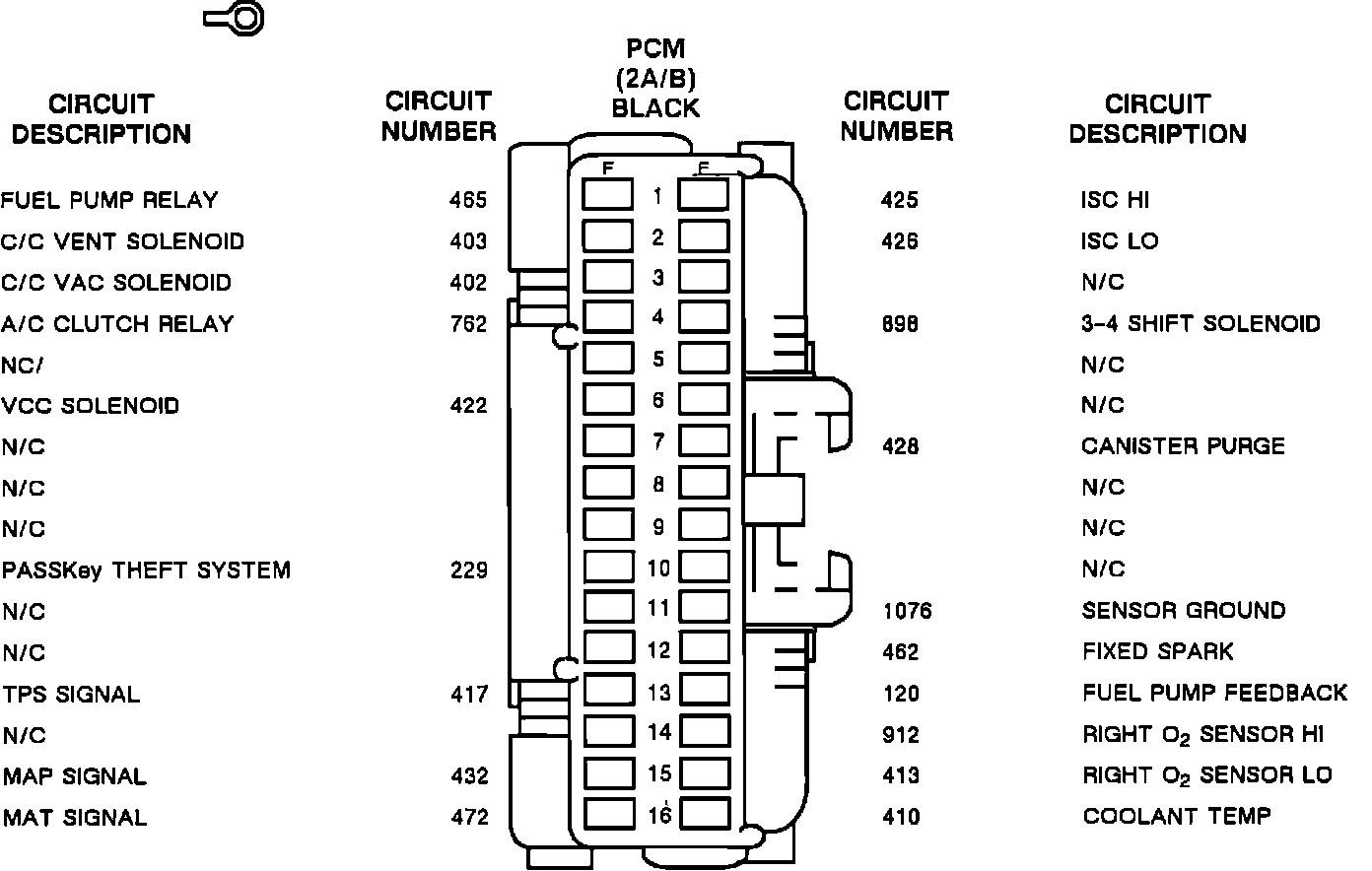

Connector Pin Out:

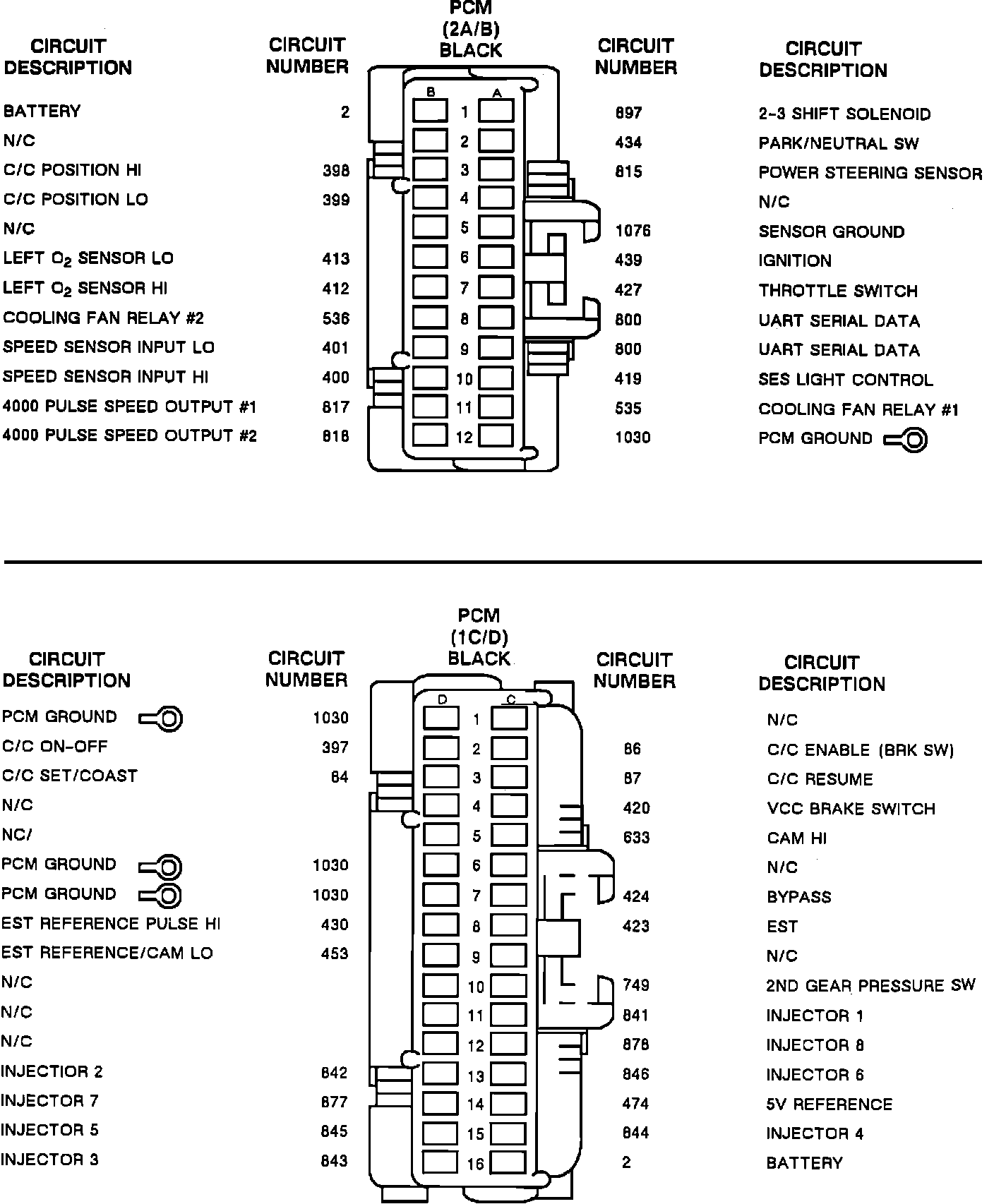

Connector Pin Out:
