Trouble Code Diagnosis

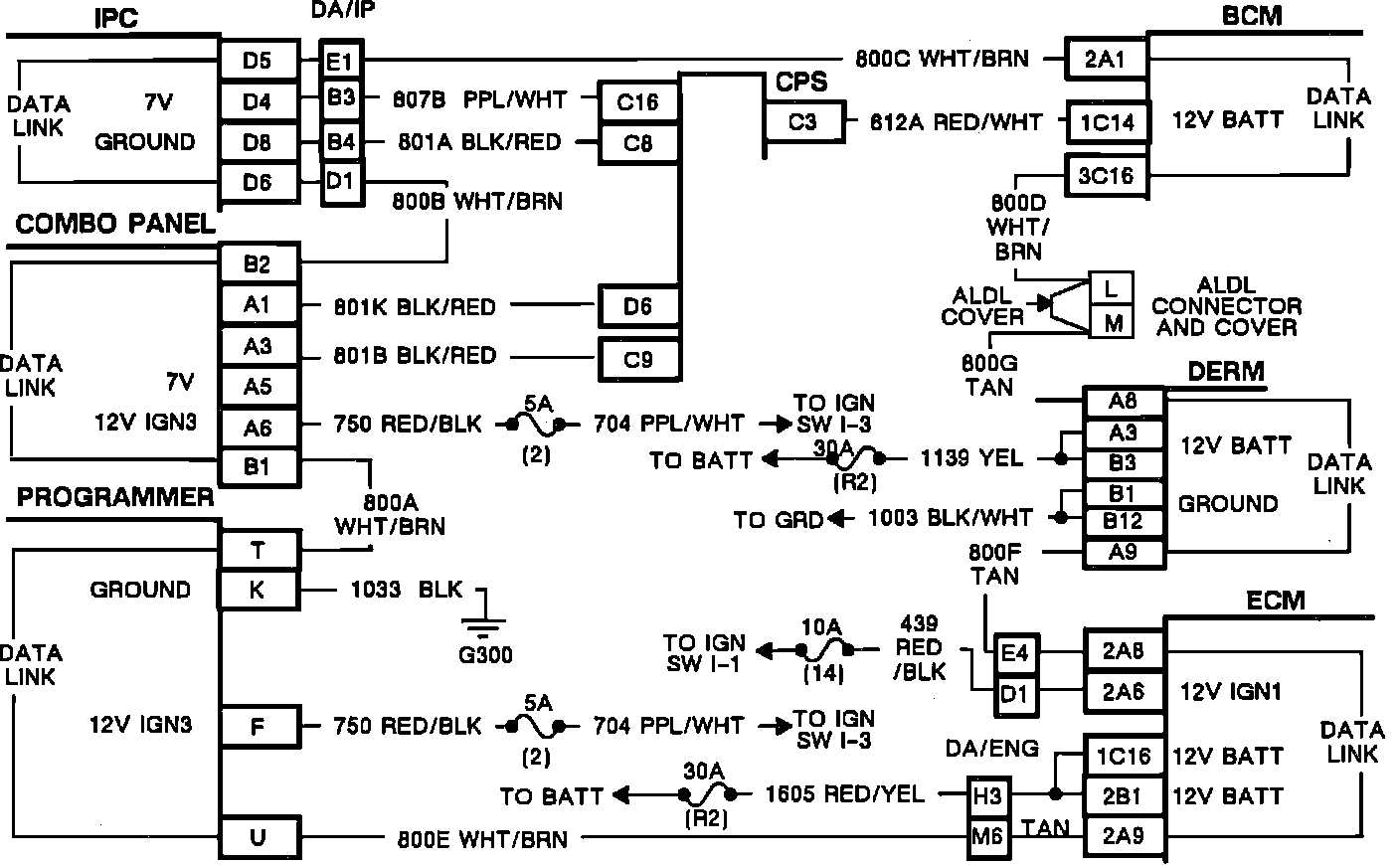

Serial Data Circuit:




Data Circuit Detail:






DESCRIPTION:

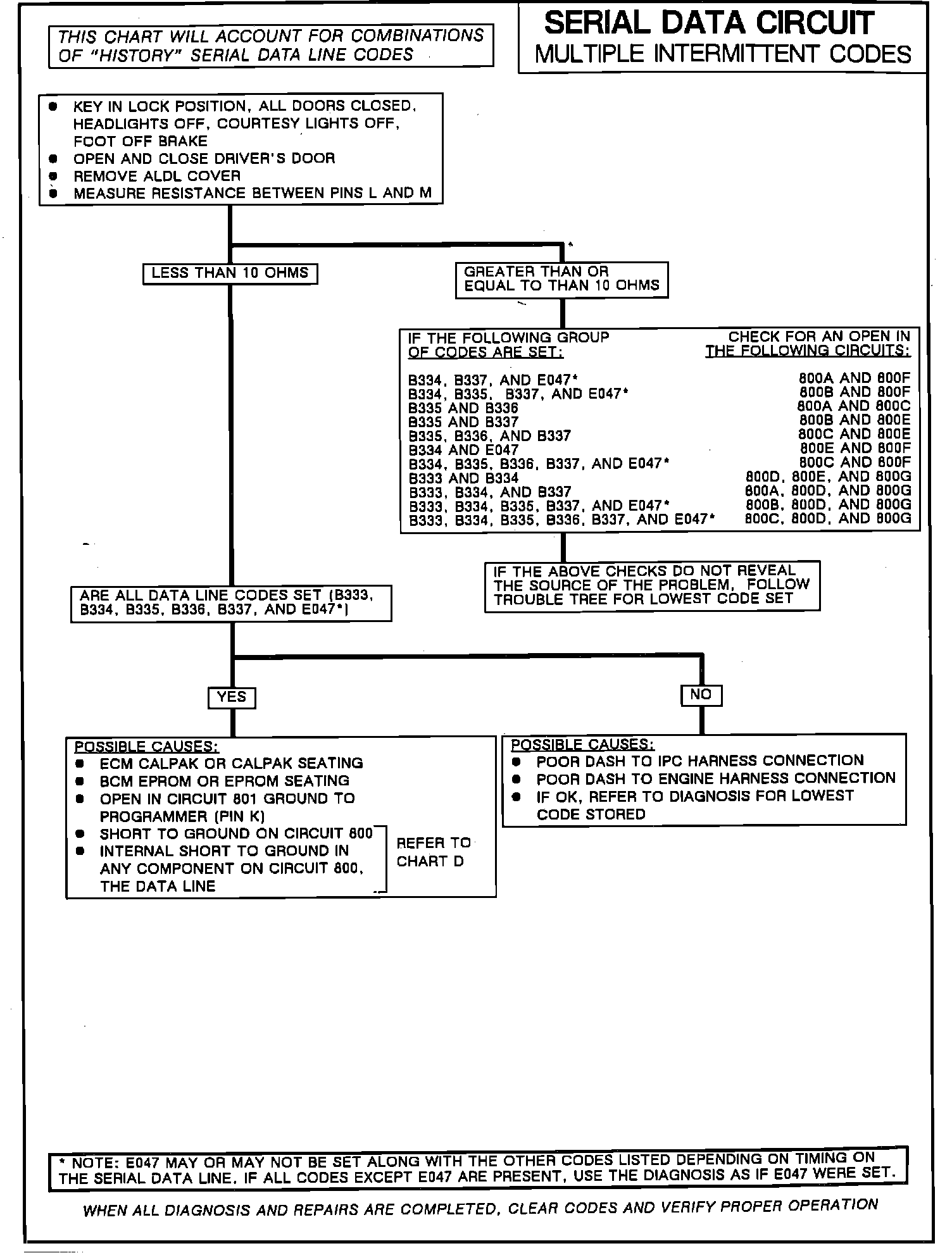

Use this trouble tree if two or more dataline codes (codes E047, B333, B334, B335, B336, or B337) are set.
