Wiring Diagrams

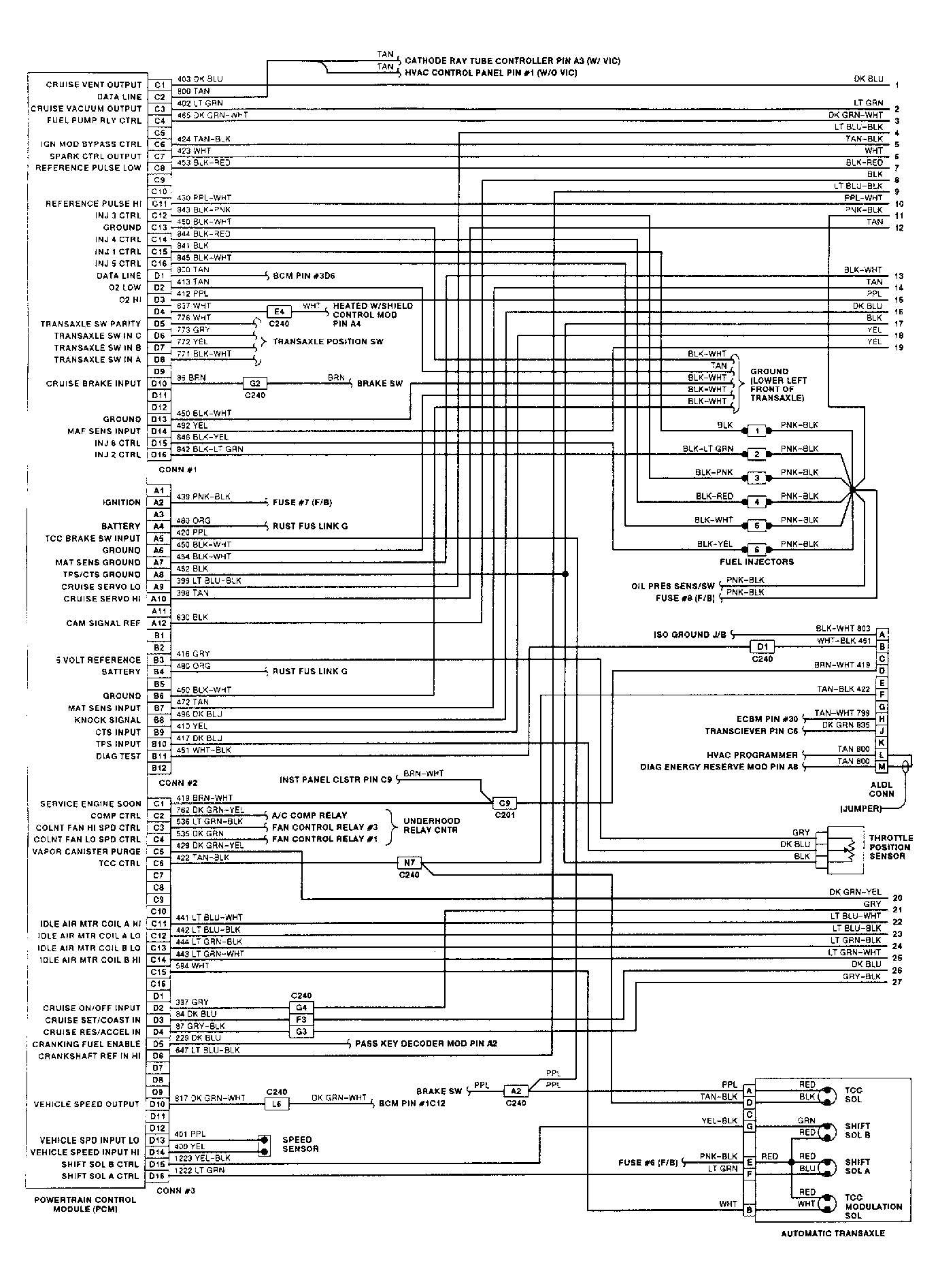

Fig 1: PCM Wiring Diagram (1 of 2), 3.8L VIN L - Riviera

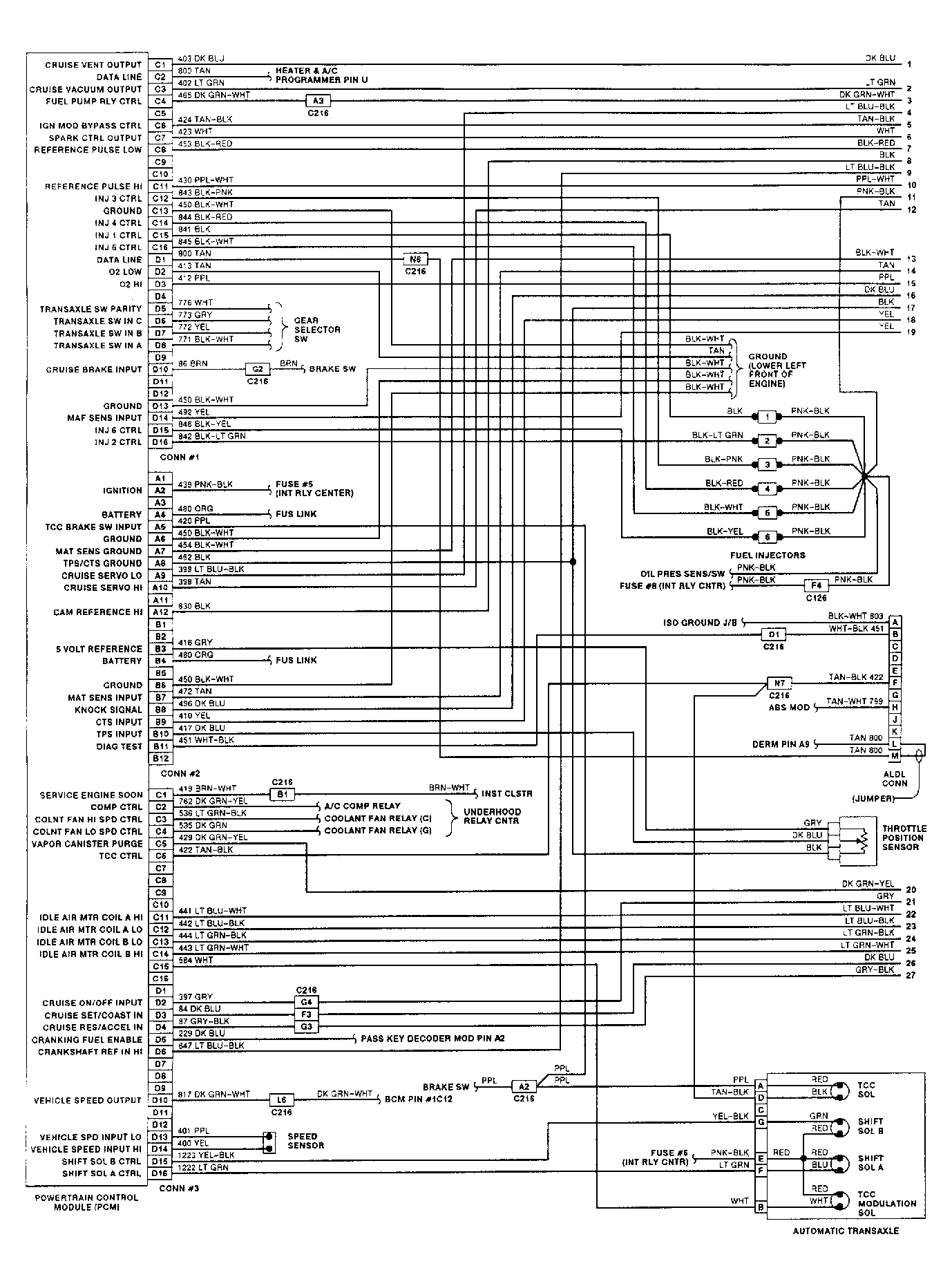

Fig 2: PCM Wiring Diagram (2 of 2), 3.8L VIN L - Riviera

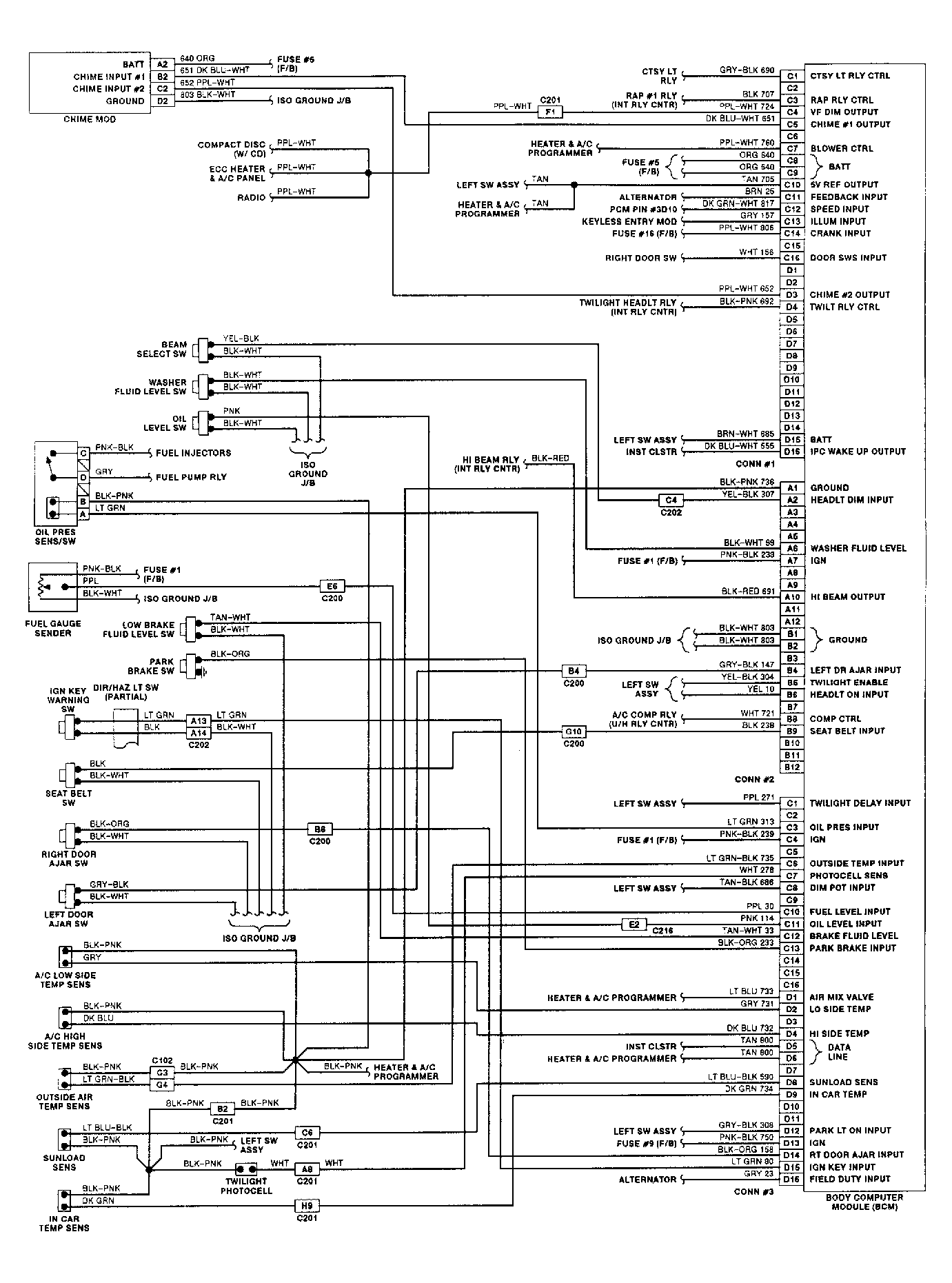

Fig 3: BCM Wiring Diagram, 3.8L VIN L - Riviera

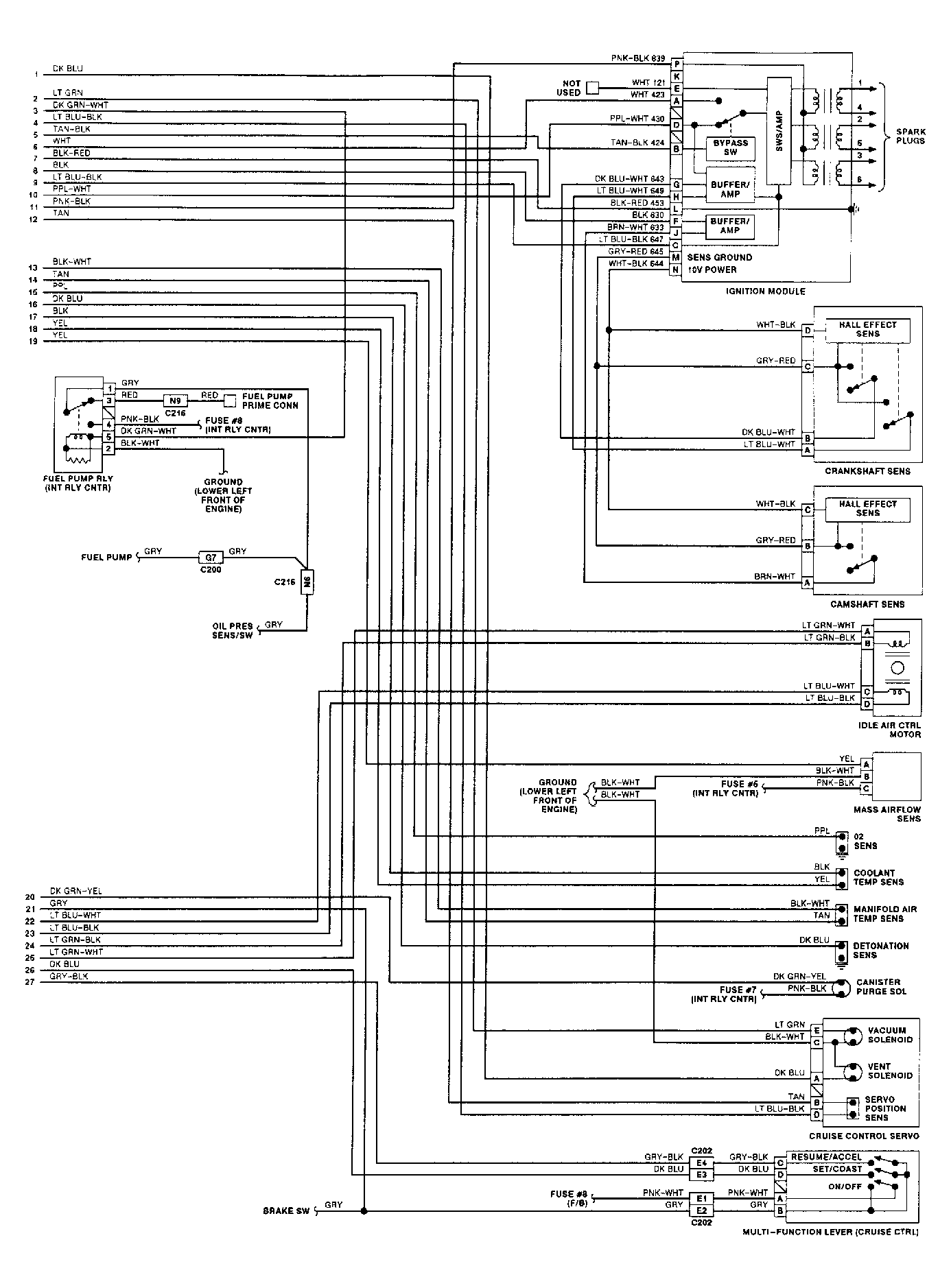

Fig 4: PCM Wiring Diagram (1 of 2), 3.8L VIN L - Toronado & Trofeo

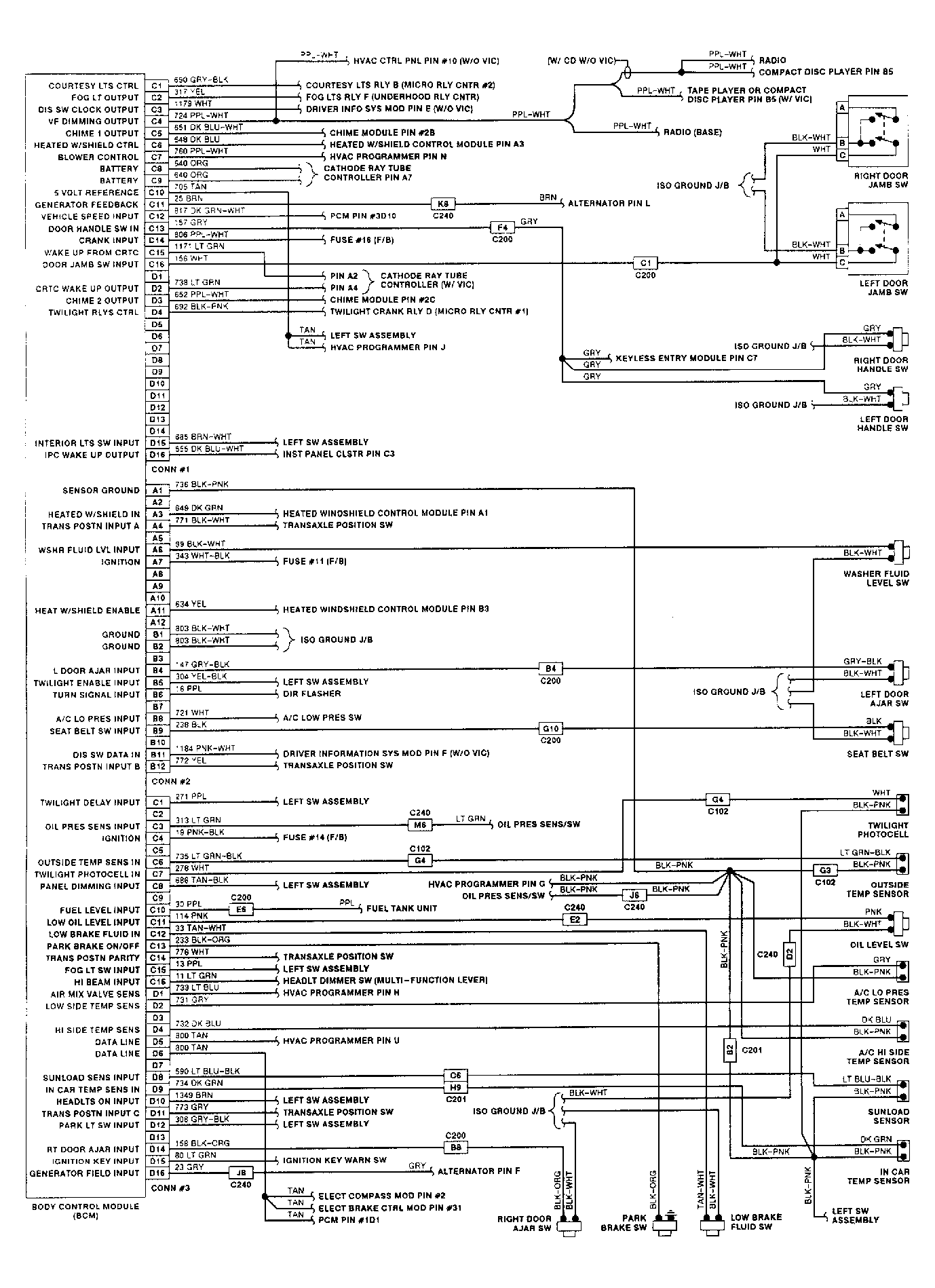

Fig 5: PCM Wiring Diagram (2 of 2), 3.8L VIN L - Toronado & Trofeo

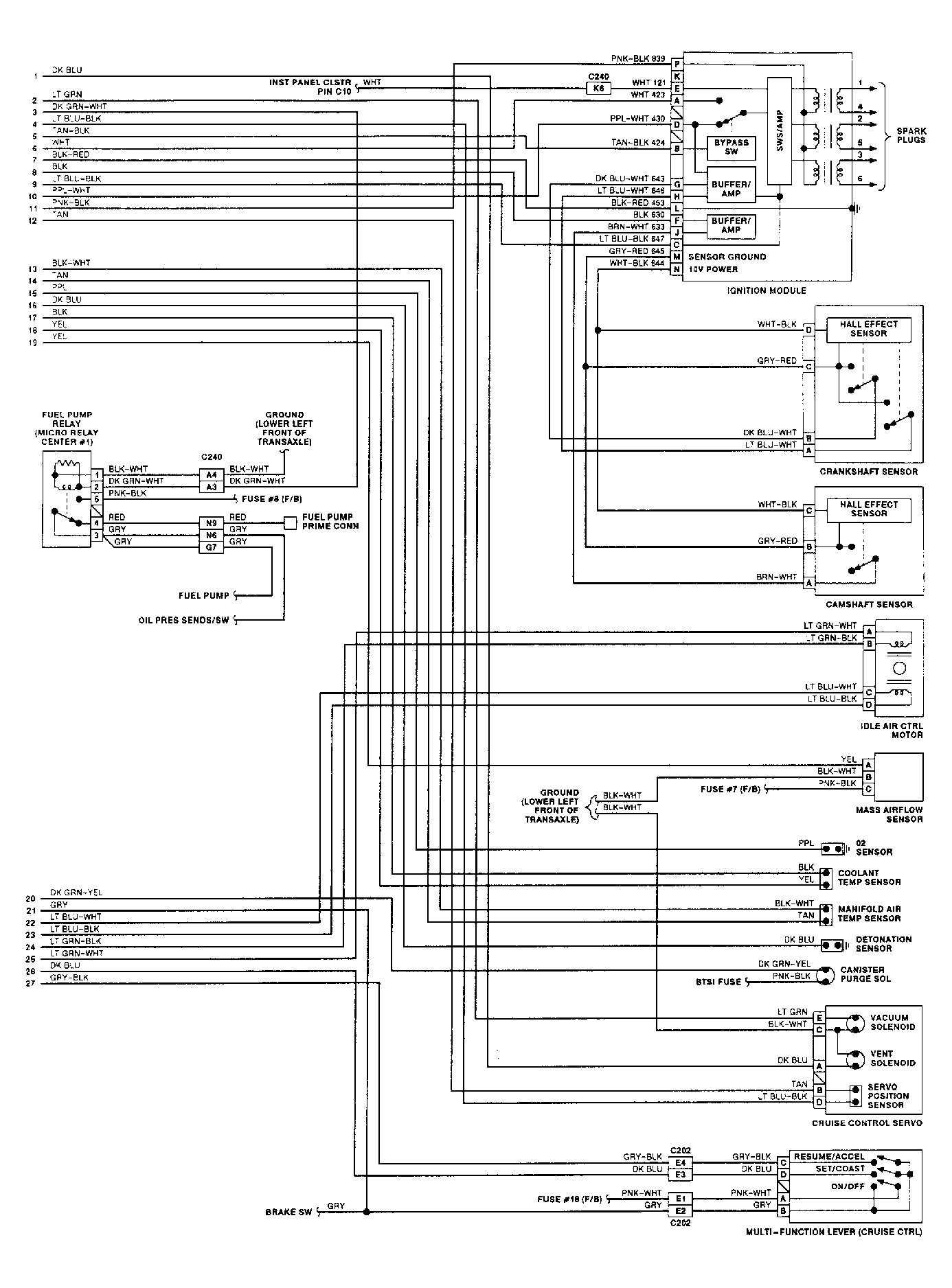

Fig 6: BCM Wiring Diagram, 3.8L VIN L - Toronado & Trofeo

Fig 7: PCM Wiring Diagram, 4.9L VIN B - Eldorado
