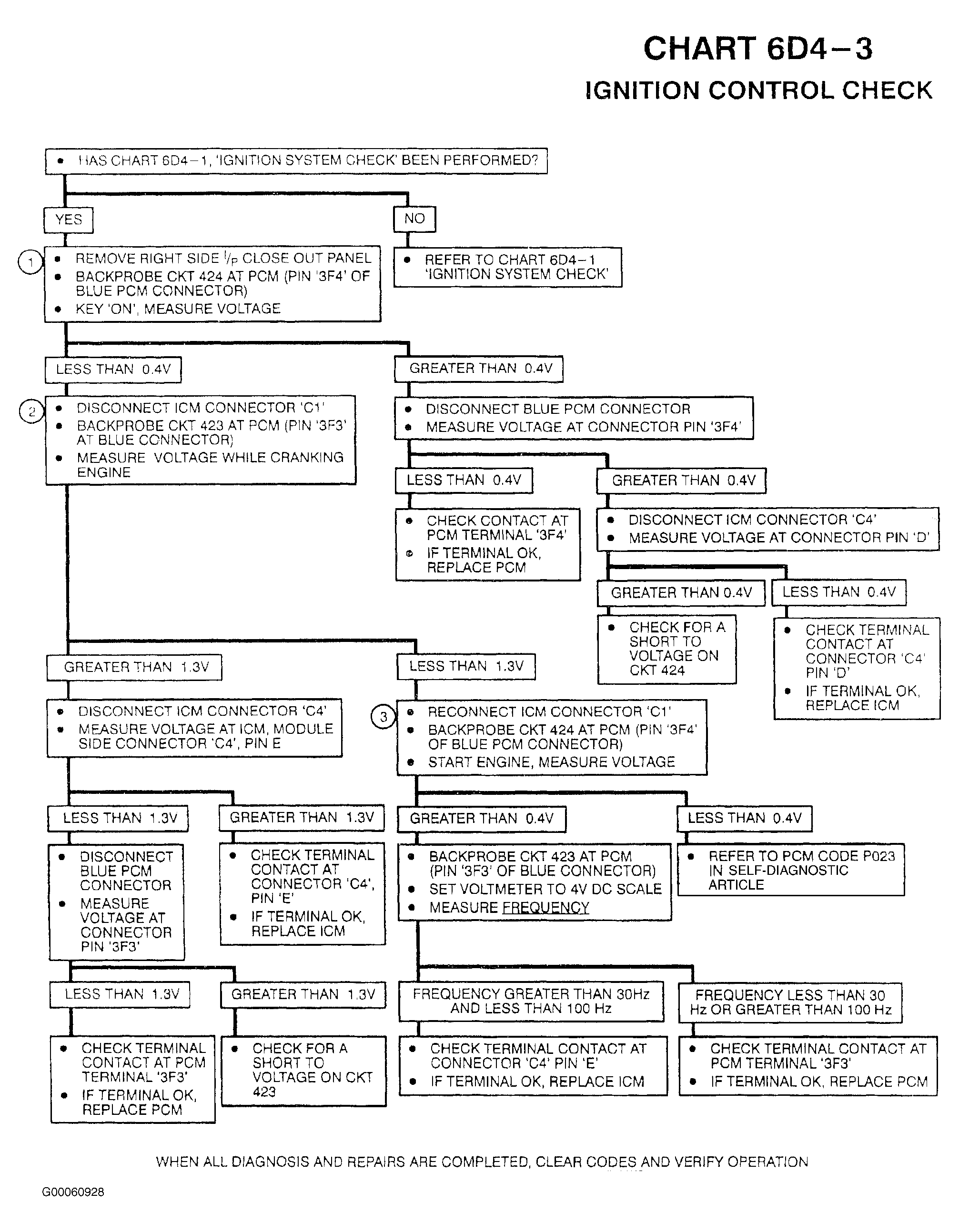

Chart 6D4-3: Ignition Control Check: Notes

NOTE: For testing, see Figure . For circuit identification, see Figure .
