Diagnostic Aids

If ignition feed circuit is suspected of being open, check and see if other bulbs on that circuit illuminate. Code 11 will cause MIL to remain on, even if malfunction clears.

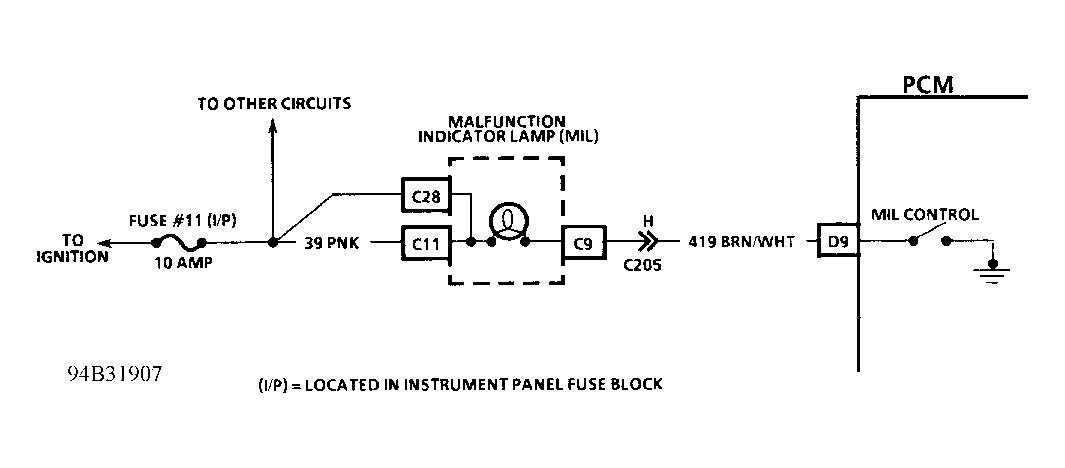

Fig 1: Code 11 Schematic (Fleetwood) Malfunction Indicator Light

Fig 2: Code 11 Flow Chart (Fleetwood) Malfunction Indicator Light
