Spring Height Measurement

Measure distance from adapter face and bearing assembly to lower spring retainer. Spring height must equal 1.0" (25.4 mm). See Fig 1 .

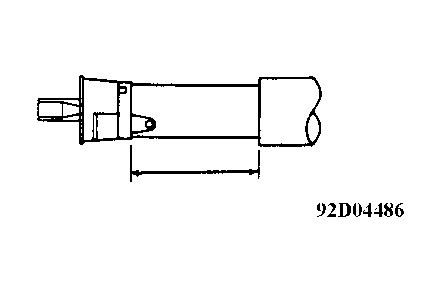

Fig 1: Measuring Spring Height

Courtesy of GENERAL MOTORS CORP.

Fig 2: Inspecting Steering Column Capsules For Damage

Courtesy of GENERAL MOTORS CORP.

Fig 3: Inspecting Steering Column Jacket

Courtesy of GENERAL MOTORS CORP.

Fig 4: Inspecting Steering Shaft

Courtesy of GENERAL MOTORS CORP.

COLUMN JACKET COLLAPSE MEASUREMENTS ⁽¹⁾⁽²⁾

Application

In. (mm)

DeVille, Seville

5.20-5.24 (132.10-133.10)

⁽¹⁾	Measure with lower bearing removed.

⁽²⁾	Use with illustration. See Fig 5 .

Fig 5: Measuring Column Jacket

Courtesy of GENERAL MOTORS CORP.

Fig 6: Exploded View Of Steering Column Assembly (Column Shift)

Courtesy of GENERAL MOTORS CORP.
