Code P081, Cam To 4X Reference Correlation Problem: Action

None.

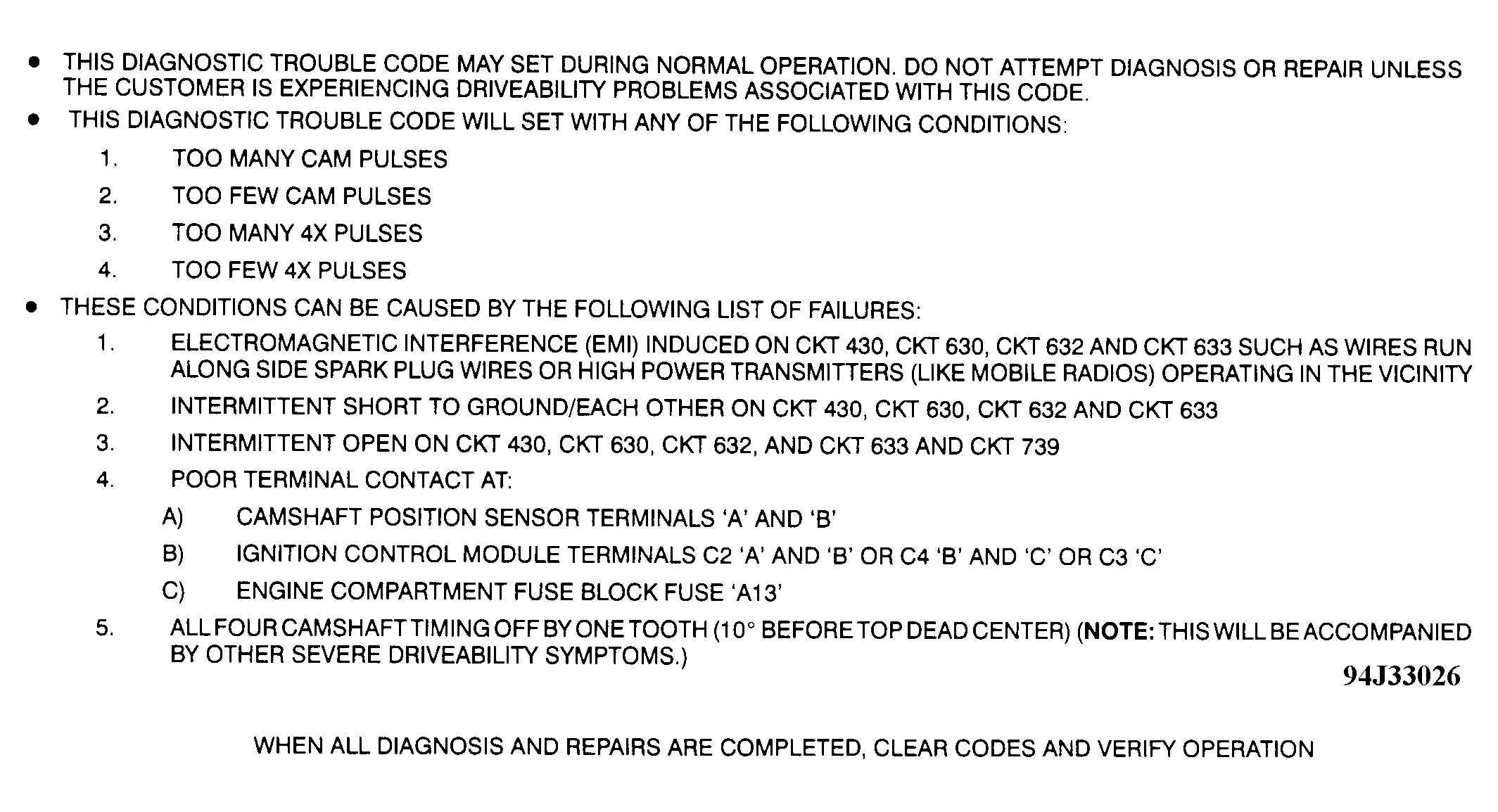

Fig 1: Code P081 Schematic, CAM To 4X Reference Correlation Problem

Courtesy of GENERAL MOTORS CORP.

Fig 2: Code P081 Schematic, CAM To 4X Reference Correlation Problem

Courtesy of GENERAL MOTORS CORP.
