Terminal Identification

NOTE: To identify Electronic Brake Traction Control Module (EBTCM), Brake Pressure Modulator (BPM) valve and relay connector terminals, refer to illustration. See Fig 1.

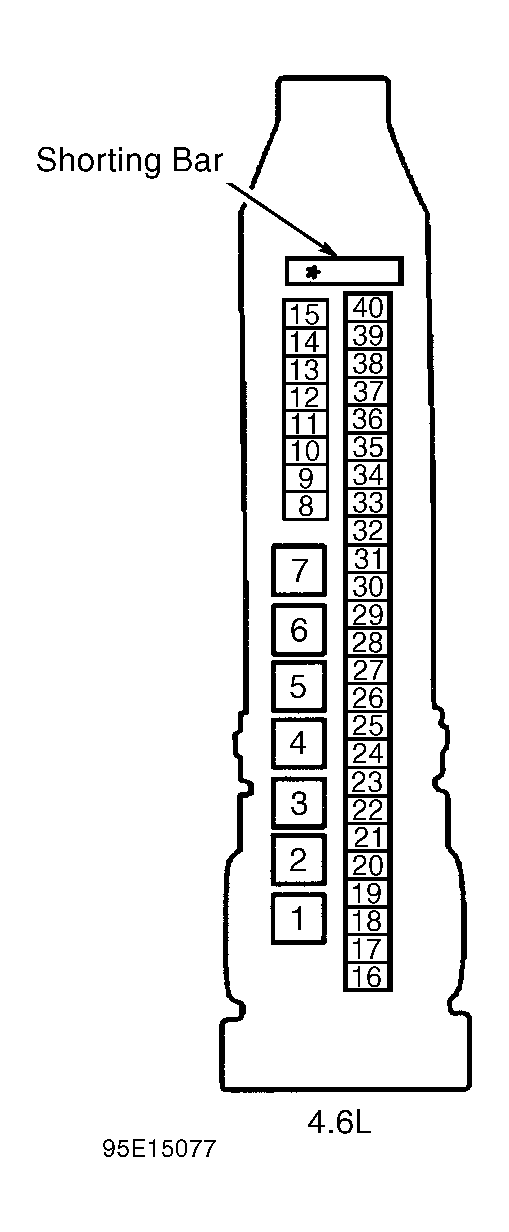

Fig 1: EBTCM & BPM Valve Connector Terminals (4.6L)
G95E15077Courtesy of GENERAL MOTORS CORP.
Fig 2: EBTCM/BPM Valve Interface Connector (BPM Side)
G95F15078Courtesy of GENERAL MOTORS CORP.
