Toe-In Adjustment (Rear)

Loosen toe link bolt. See Fig 1 . Move wheel inward or outward as necessary until toe-in is as specified. See WHEEL ALIGNMENT SPECIFICATIONS  . Tighten bolts to specification. See TORQUE SPECIFICATIONS.

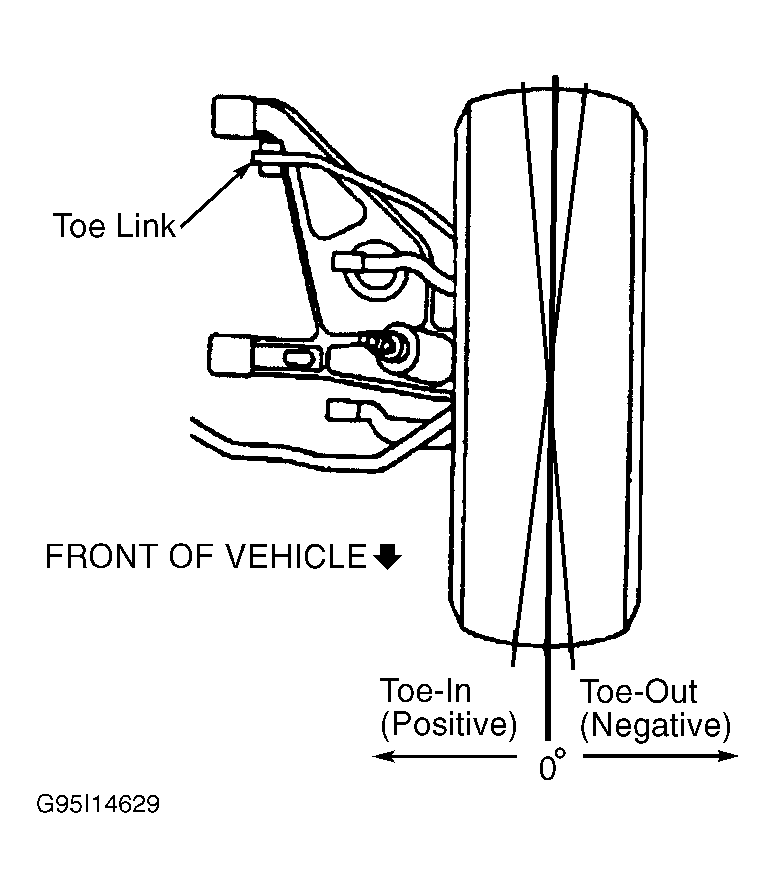

Fig 1: Adjusting Rear Toe-In

Courtesy of GENERAL MOTORS CORP.
