Automatic Level Control Sensor

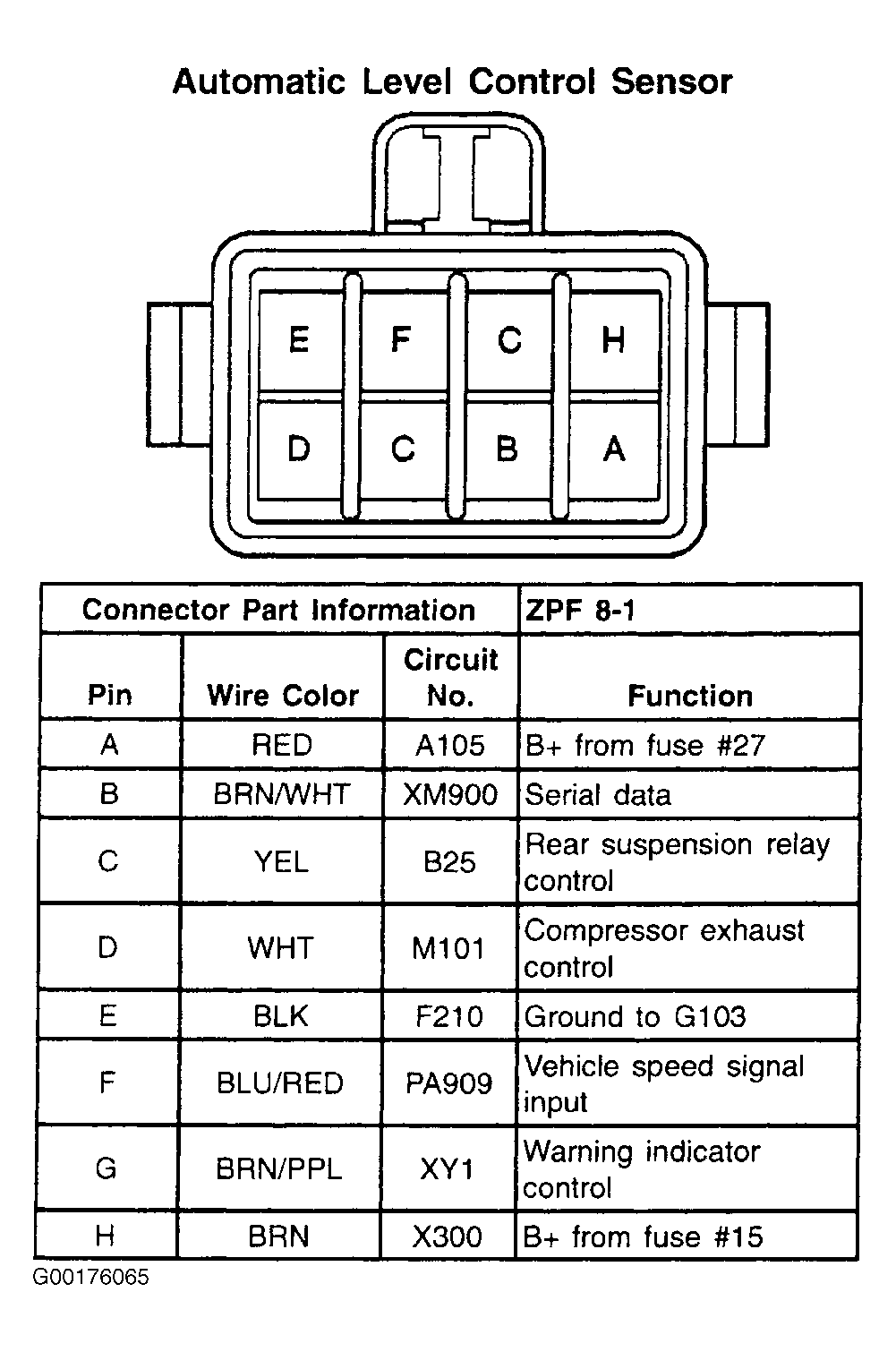

Fig 1: Automatic Level Control Sensor - 8-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
