Case ADAPTOR

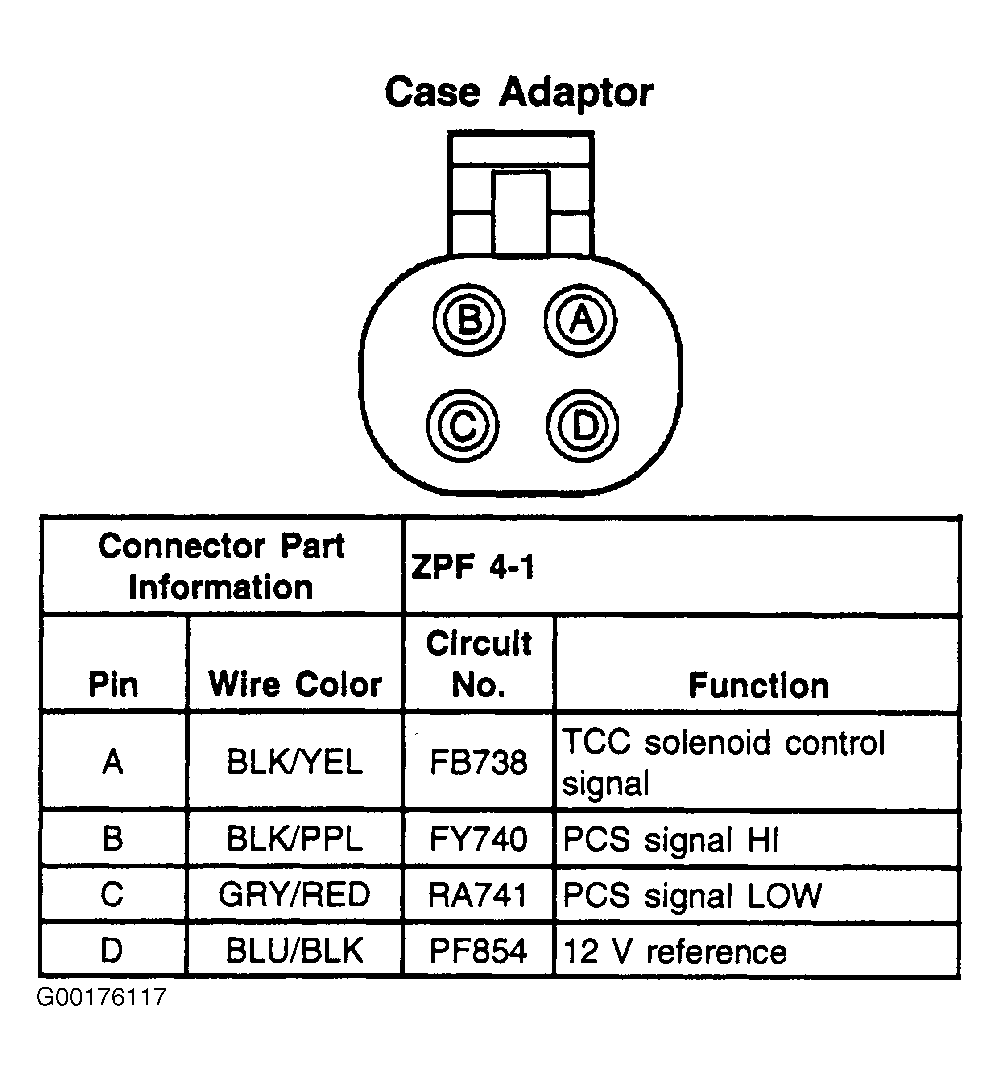

Fig 1: Case Adaptor - 4-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
