Transmission Control Module (TCM)

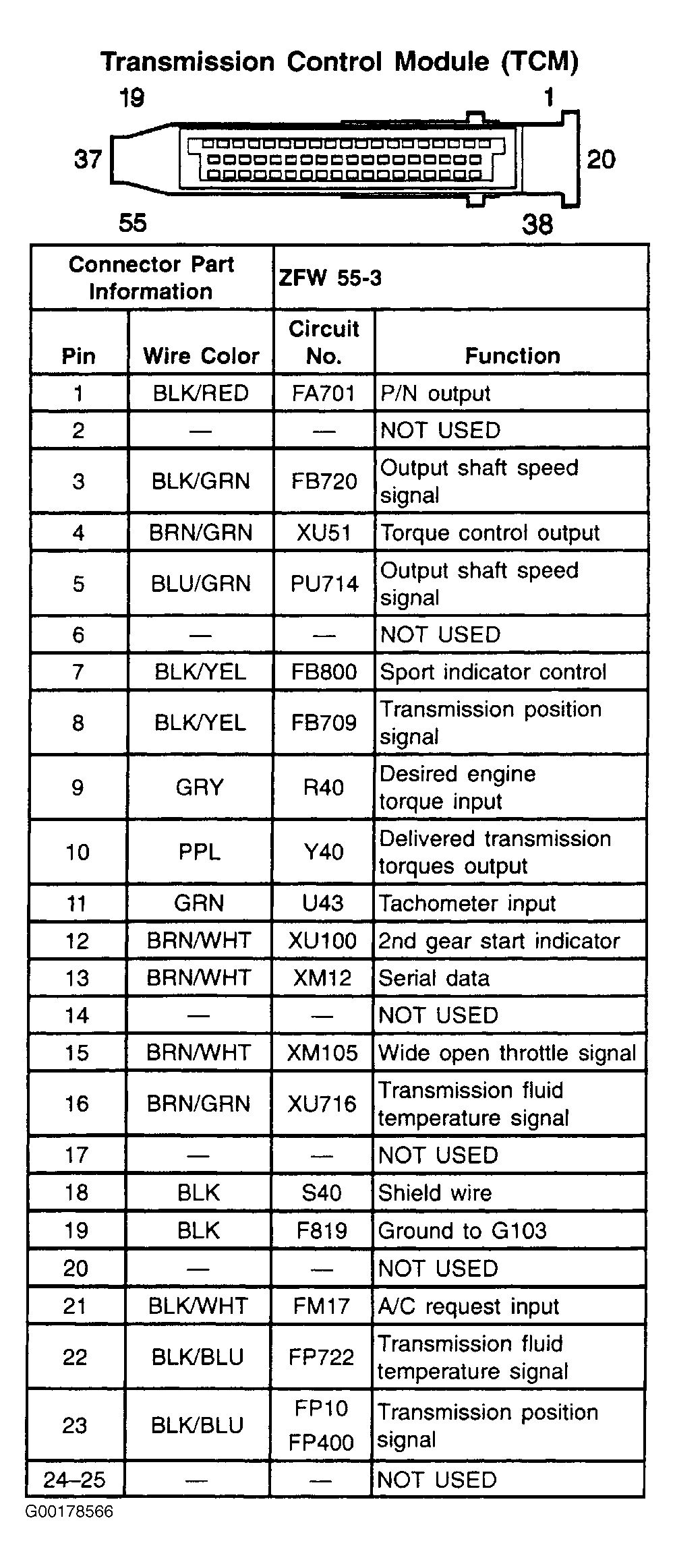

Fig 1: Transmission Control Module (TCM) - 55-Pin Connector (1 Of 2)
G00178566Courtesy of GENERAL MOTORS CORP.

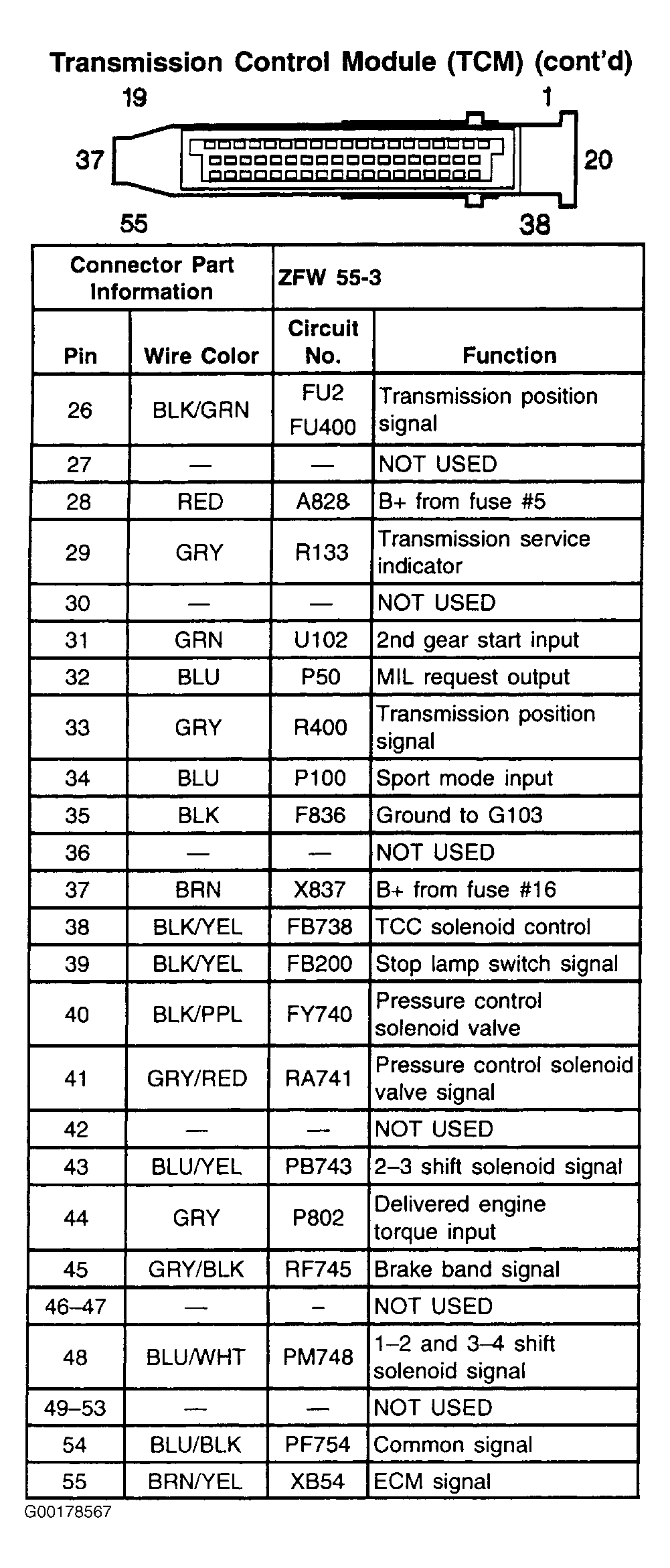

Fig 2: Transmission Control Module (TCM) - 55-Pin Connector (2 Of 2)
G00178567Courtesy of GENERAL MOTORS CORP.
