Cruise Control Release Switch

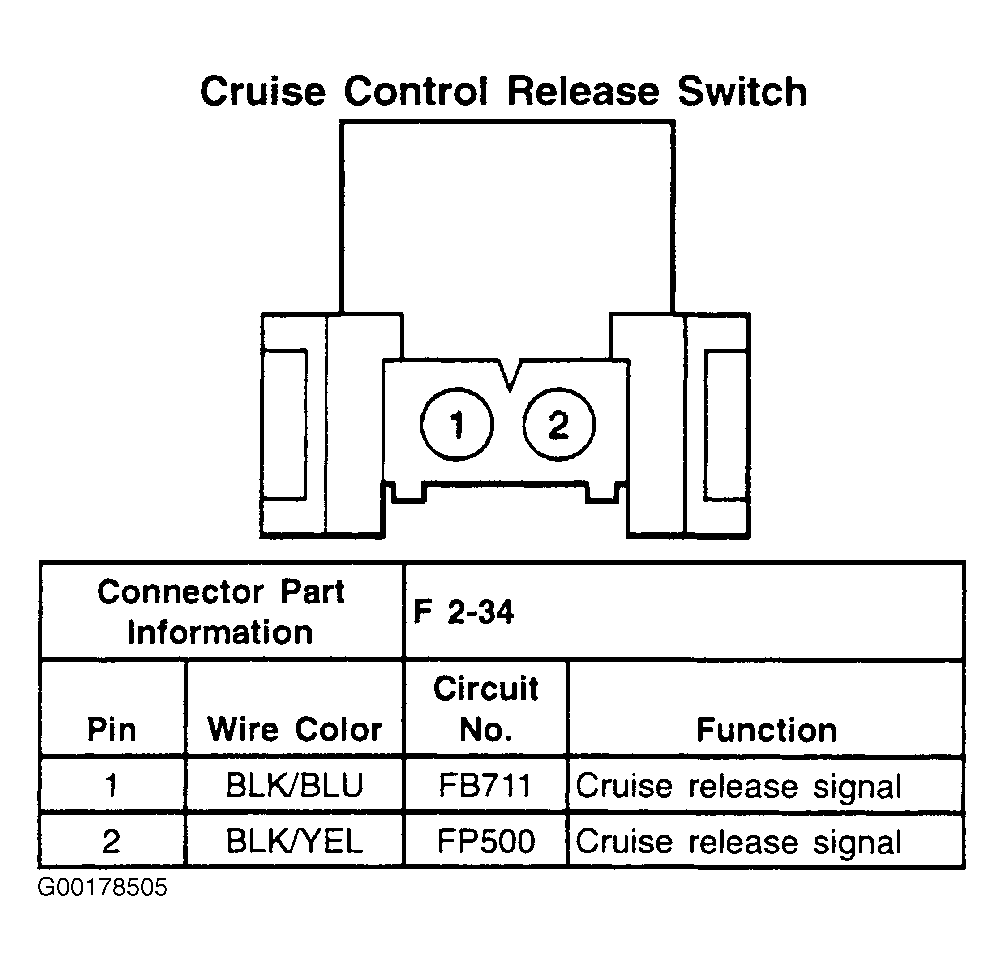

Fig 1: Cruise Control Release Switch - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
